Intel Wi-Fi 6 AX200 / Desktop Kit / network adapter / M.2 2230 / 802.11ax (Wi-Fi 6), Bluetooth 5.1 | AX200.NGWG.DTK
AX200.NGWG.DTK
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | M.2 2230 |
| Networking | Networking |
| Connectivity Technology | Wireless |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.1 |
| Frequency Band | 2.4 GHz, 5 GHz |
| Features | Under vPro, 2x2 MU-MIMO technology |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11d, IEEE 802.11g, IEEE 802.11i, IEEE 802.11h, IEEE 802.11e, IEEE 802.11n, IEEE 802.11k, IEEE 802.11ac, IEEE 802.11w, IEEE 802.11r, IEEE 802.11u, IEEE 802.11v, Bluetooth 5.0, IEEE 802.11ax, Wi-Fi CERTIFIED 6 |
| Aerial | Aerial |
| Antenna | External detachable |
| Antenna Qty | 2 |
| Miscellaneous | Miscellaneous |

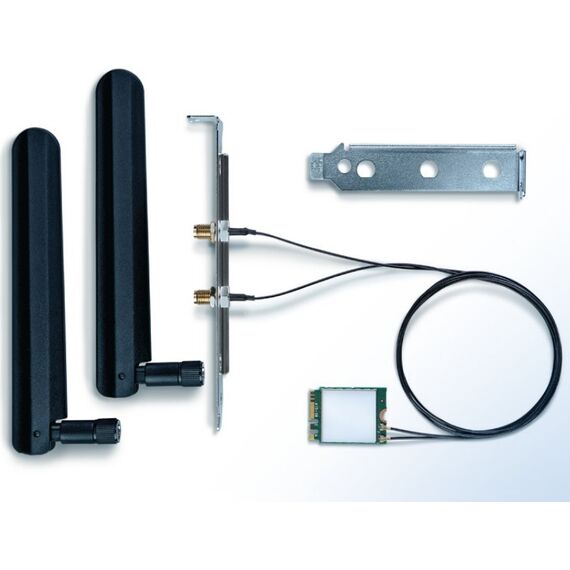

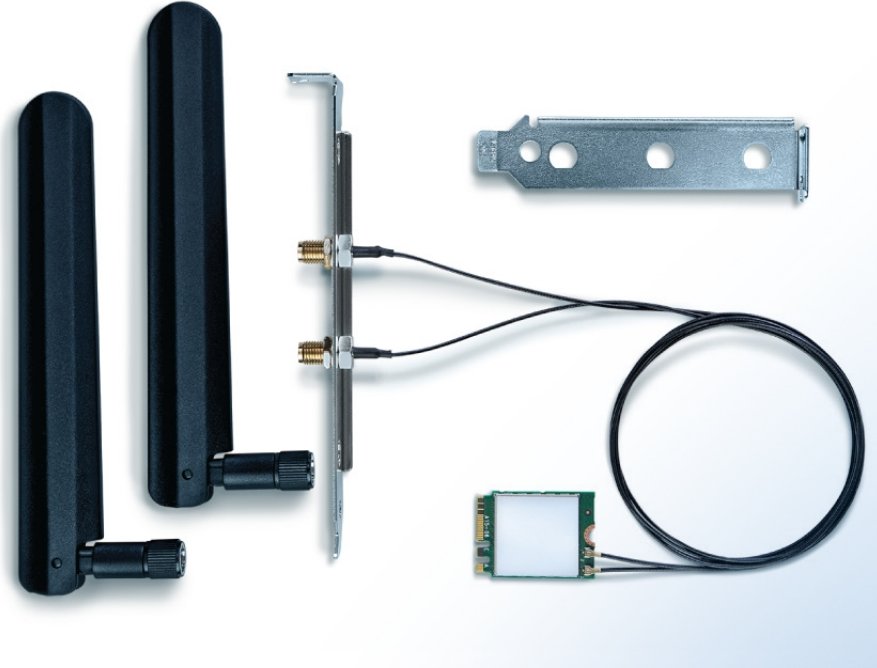

| Included Accessories | Low-profile bracket, full-height bracket |
| Cables Included | 2 x coaxial RF cable |
| Encryption Algorithm | 128-bit WEP, 64-bit WEP, TLS, PEAP, TTLS, TKIP, WPA, FIPS 140-2, WPA2, WPA2-Enterprise, 128-bit AES-CCMP, EAP-SIM, EAP-AKA, WPA3, 256-bit AES-GCMP |
| Compliant Standards | UL, cUL, CB, IEC 60950-1 |
| Software / System Requirements | Software / System Requirements |
| OS Required | Linux, Google Chrome OS, Windows 10 64-bit Edition |
| Dimensions & Weight | Dimensions & Weight |
| Width | 3 cm |
| Depth | 0.24 cm |
| Height | 2.2 cm |
| Weight | 2.83 g |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 80 °C |
| Humidity Range Operating | 50 - 90% (non-condensing) |
Features - Intel - AX200.NGWG.DTK
More Details
Product Code
CA61519
EAN Code
5032037182812
Manufacturer
Intel
