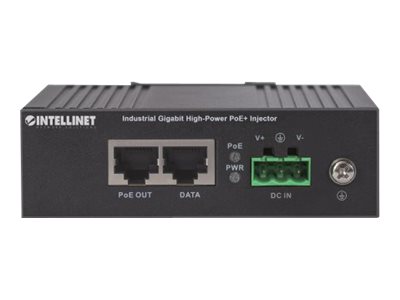

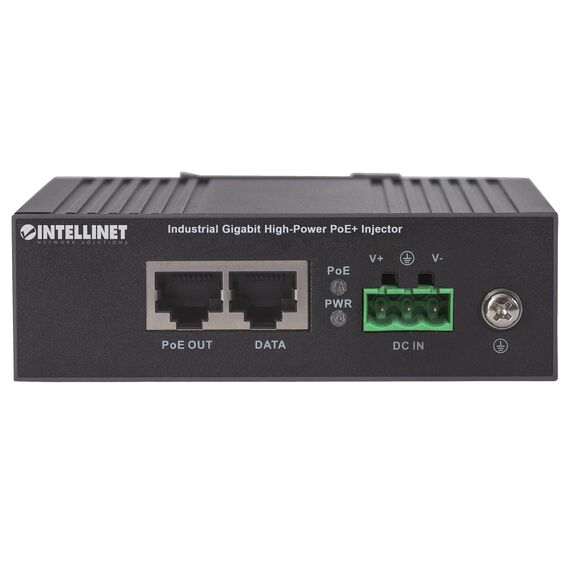

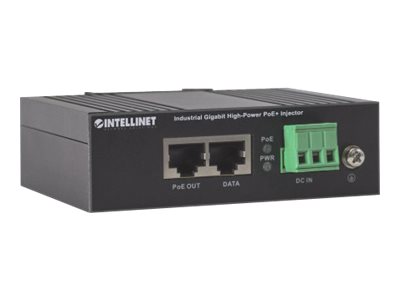

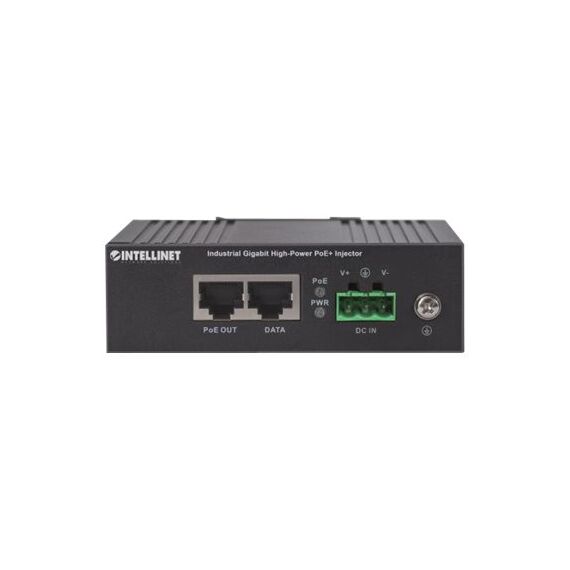

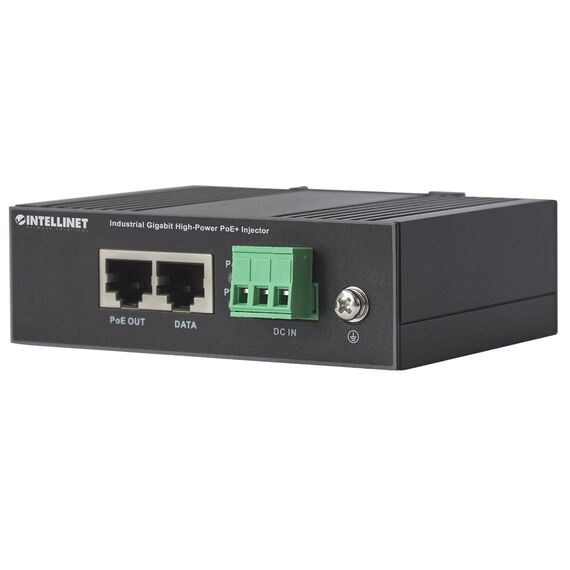

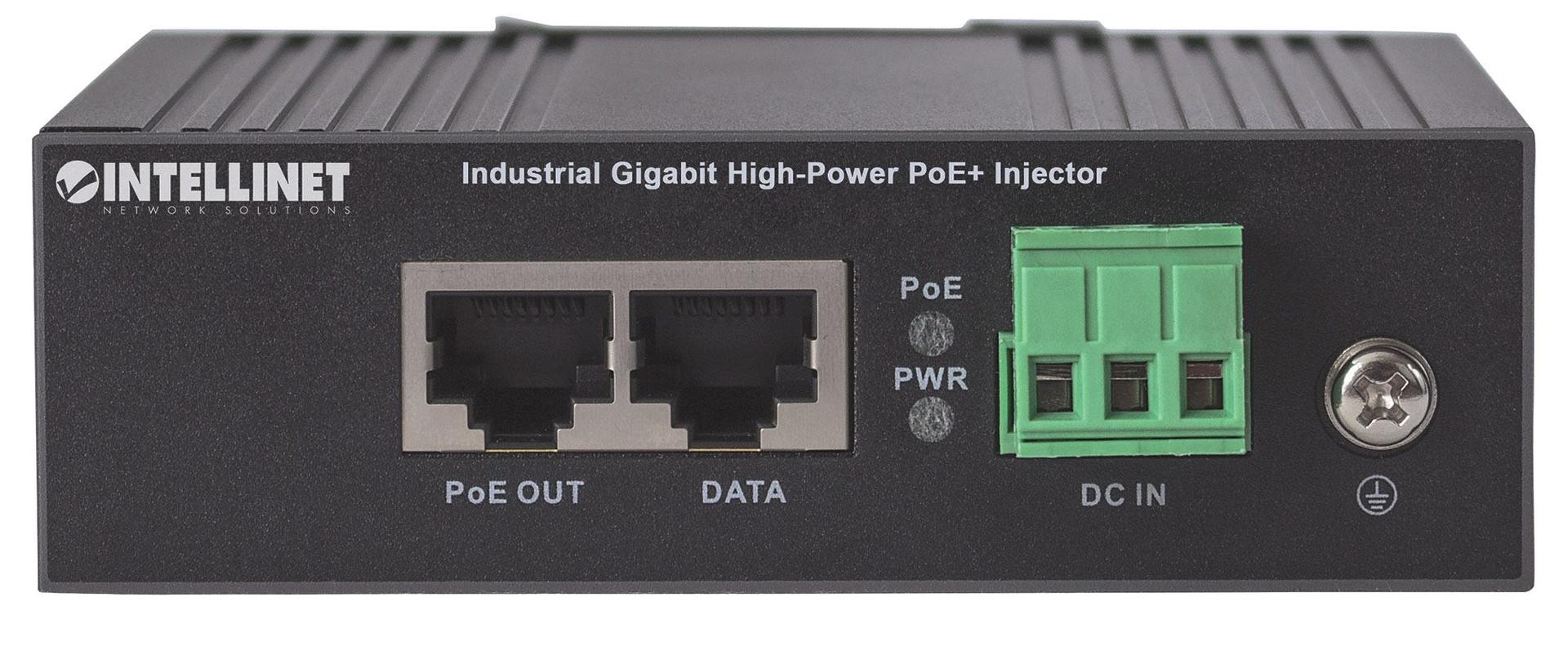

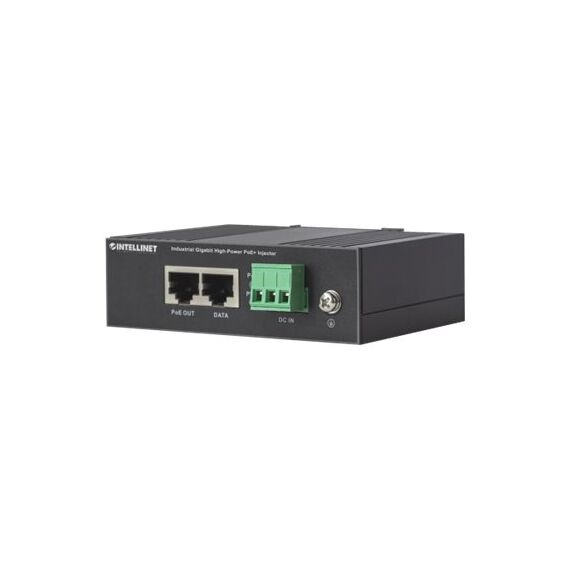

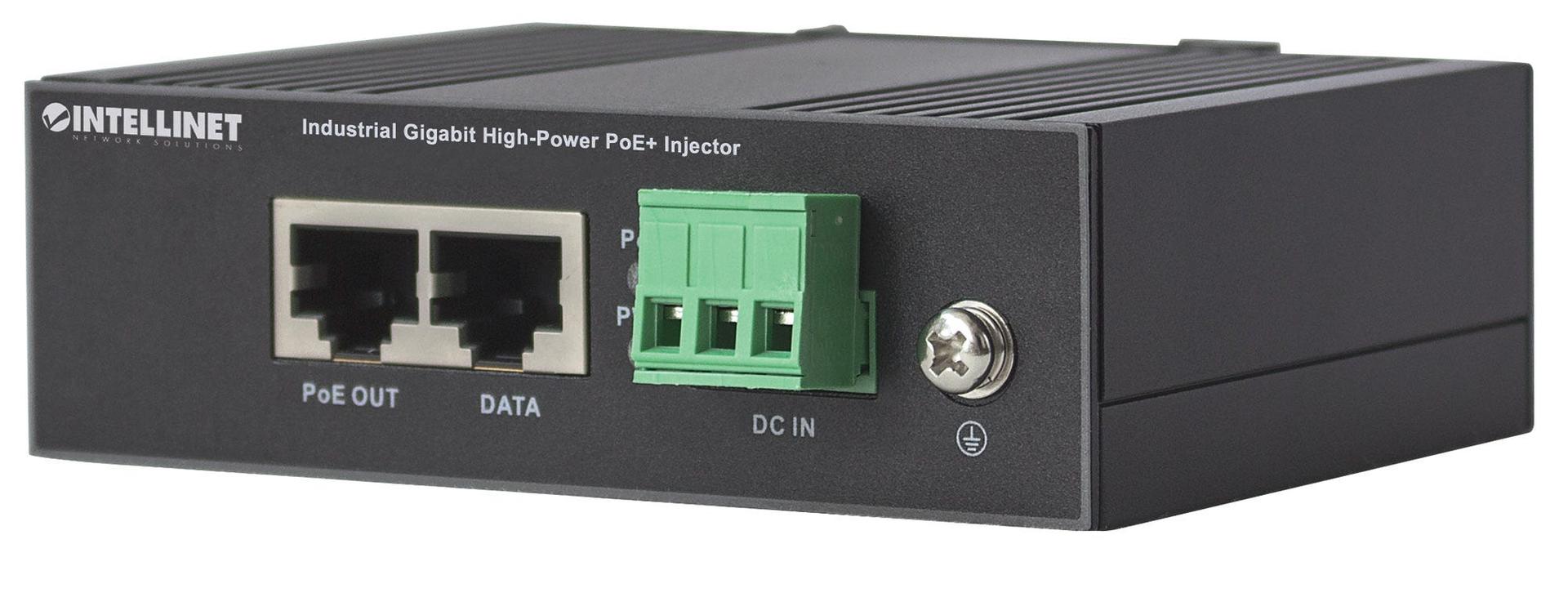

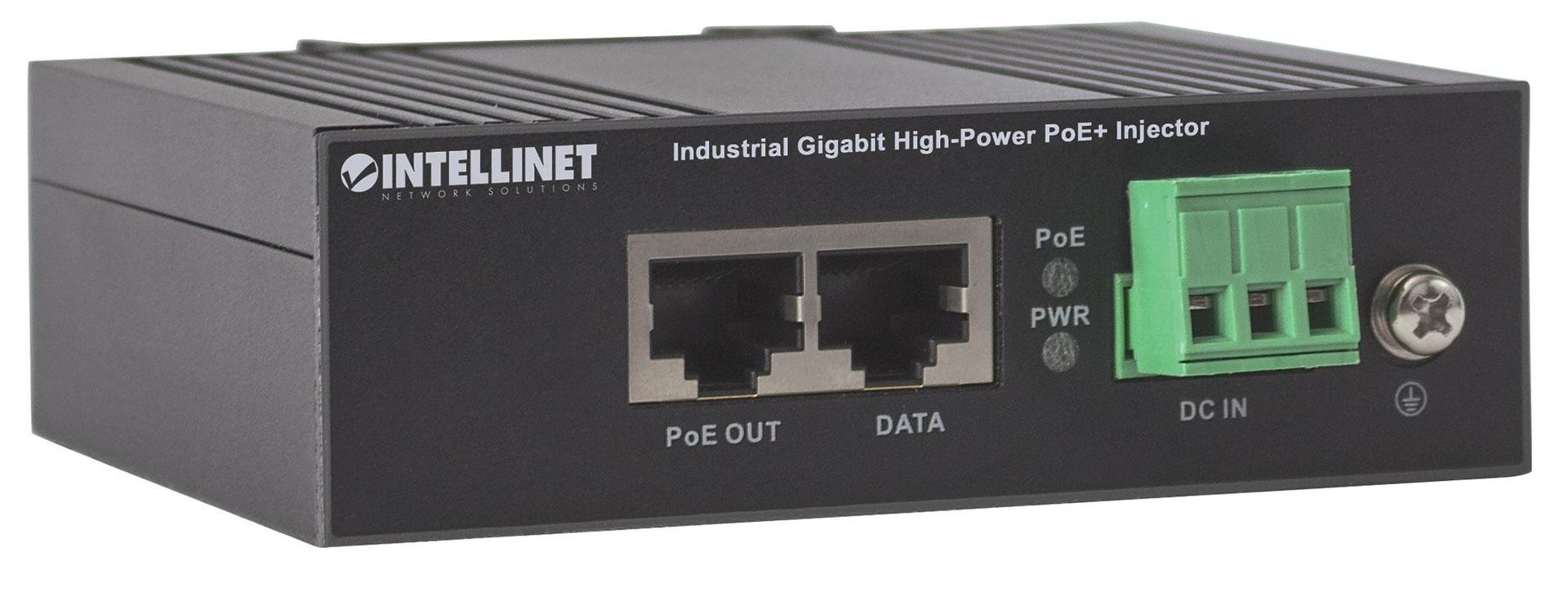

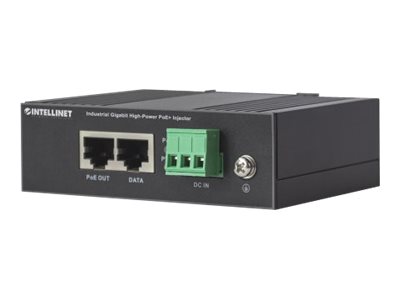

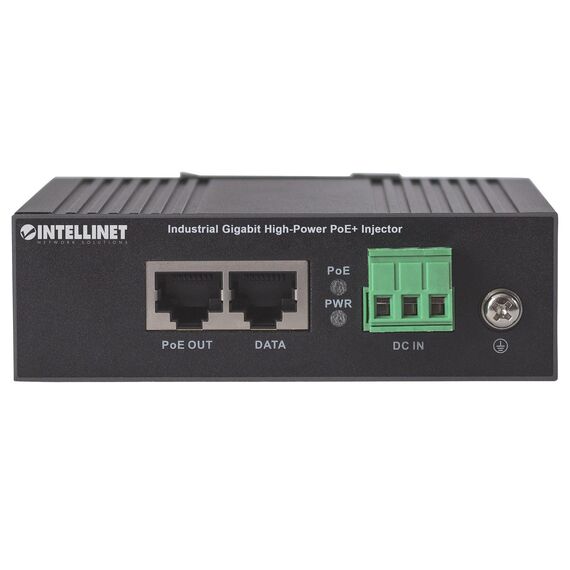

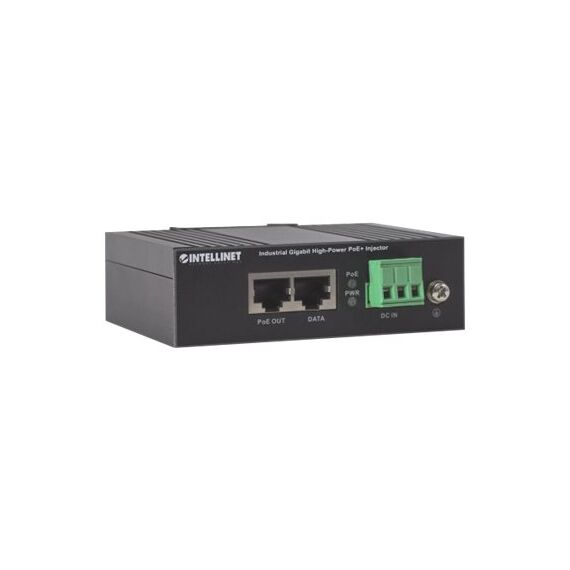

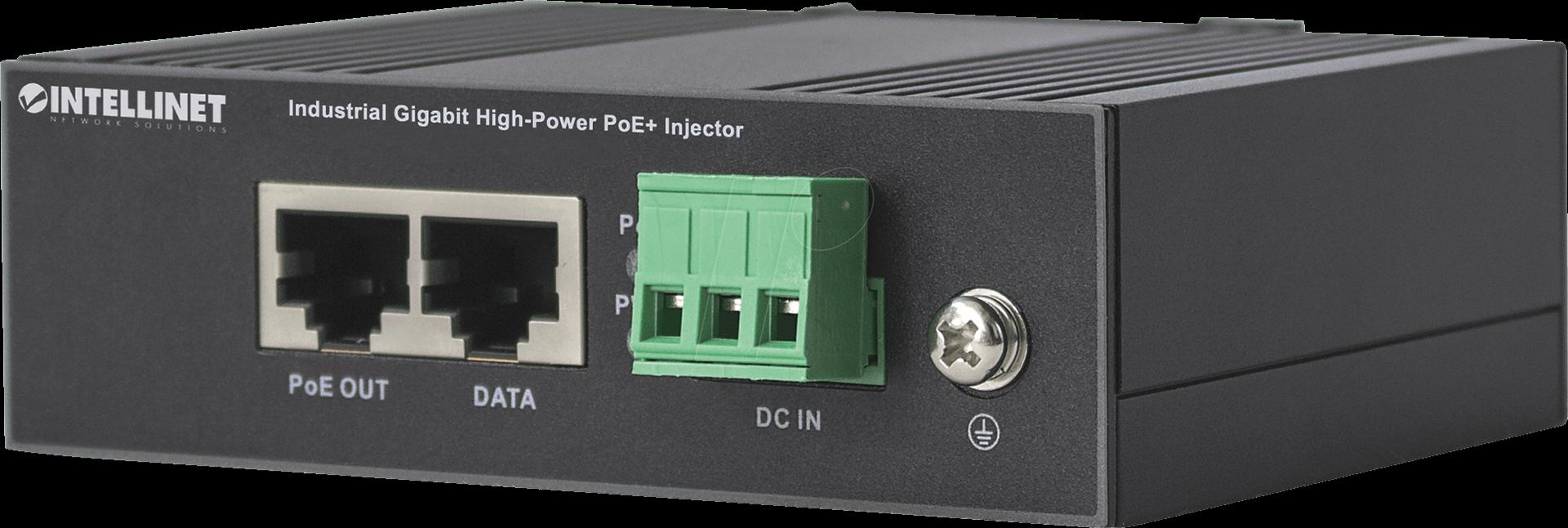

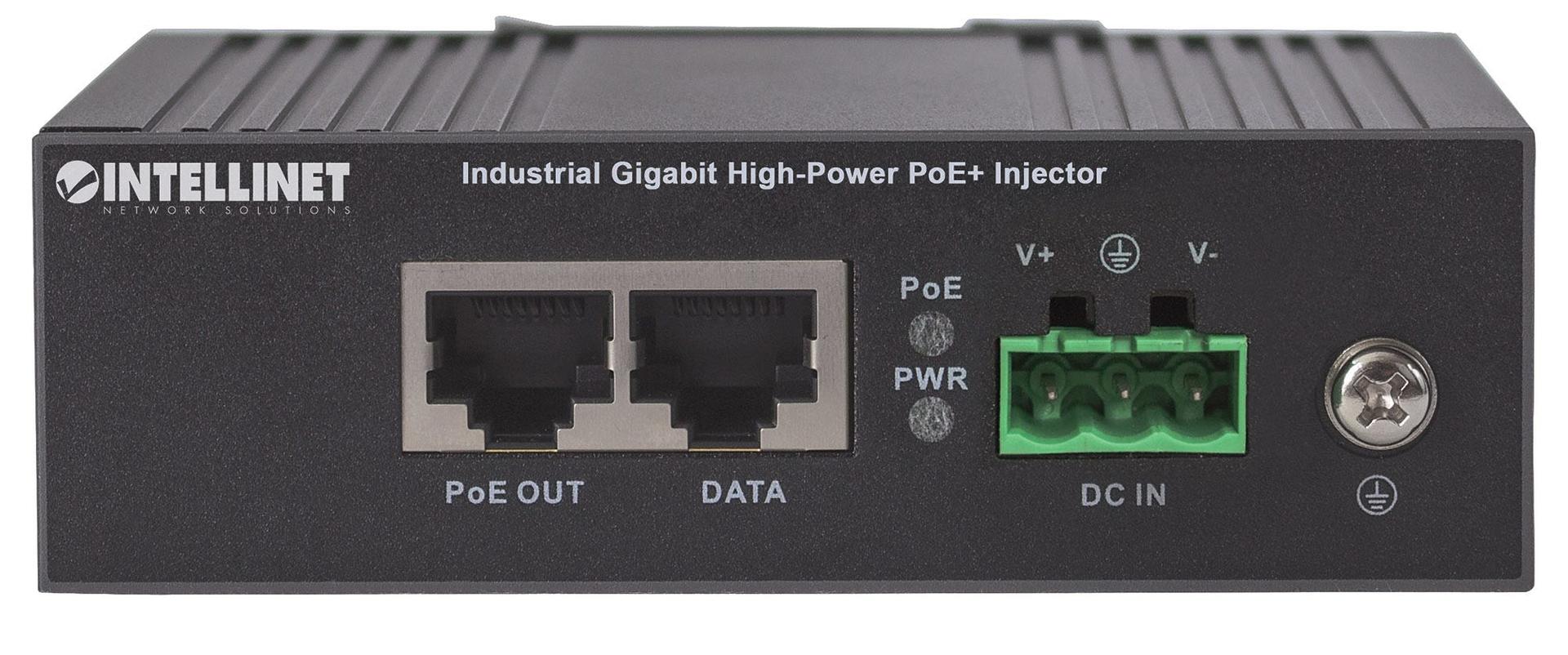

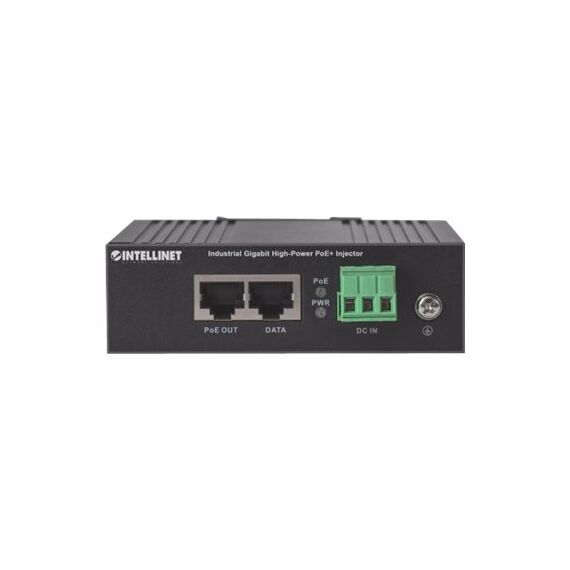

Intellinet Industrial Gigabit High-Power PoE+ Injector, 1 x 30 W Port, IEEE 802.3at/af Power over Ethernet (PoE+/PoE), Metal Housing - PoE injector - 45 - 56 V | 561365
561365
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Special Fetures
- Full IEEE802.3af, IEEE802.3at compliance
- Up to 30 W of power on two pairs
- Auto-detection of any IEEE802.3af or IEEE802.3at powered device (PD)
- Supports 10/100/1000Base-T applications
- LED indicators for power input and PoE output
- Supports distance up to 100 m (330 ft.)
- DC input 45 - 56 V

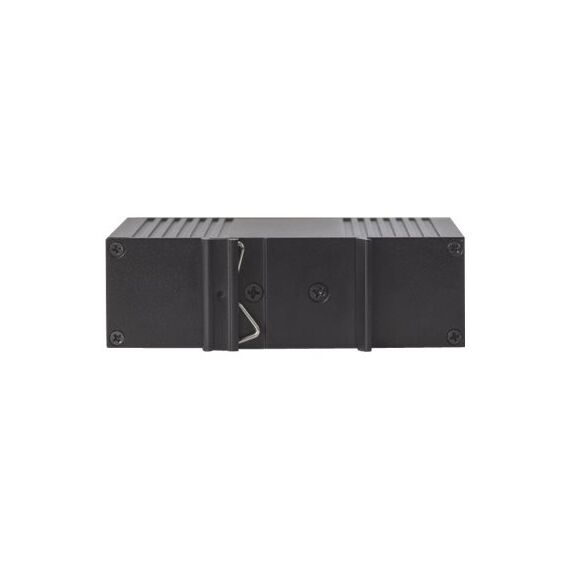

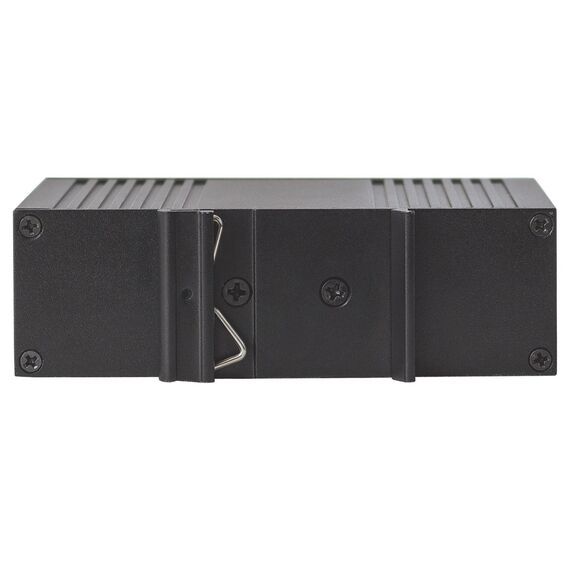

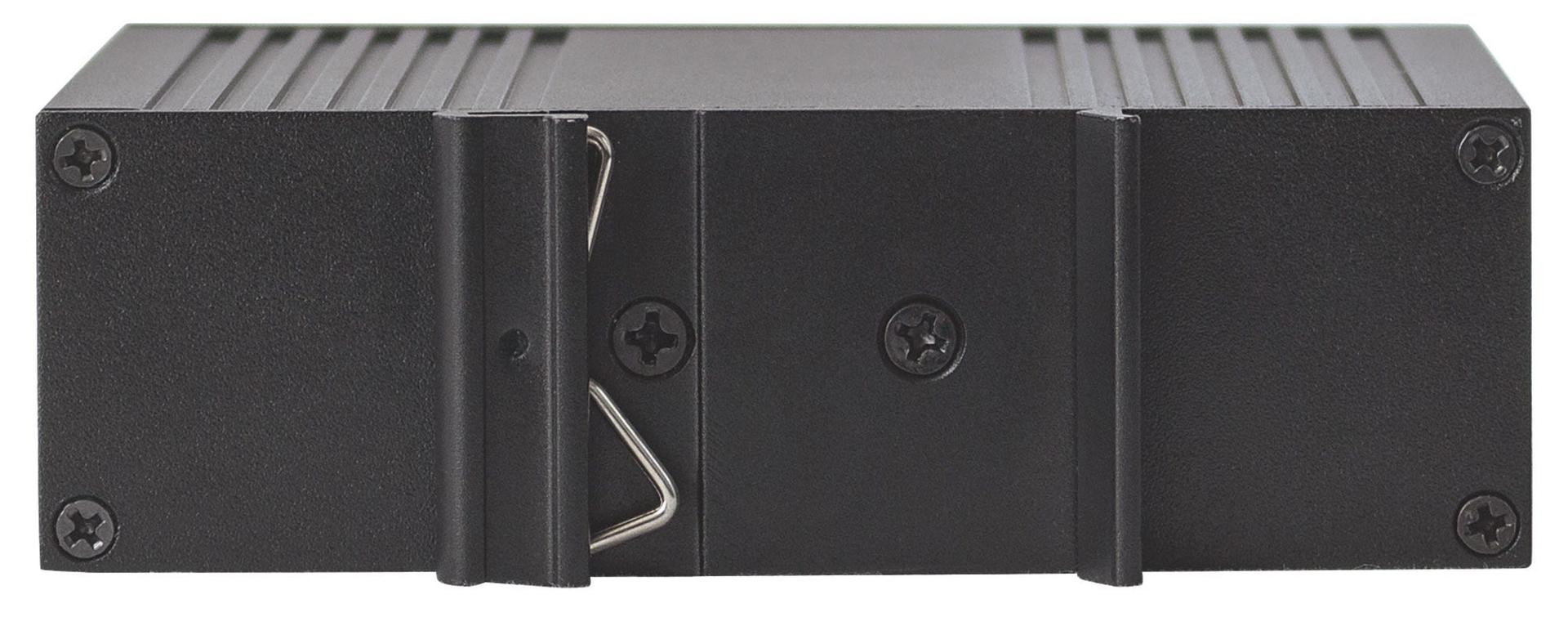

- Option for DIN-rail installation
- IP30 slim-type metal case
- ESD protection level of 6 kV
- DCIN port surge-protection level of 8/20 µs, DM/CM 3 kA
- RJ45 port Surge protection level 10/700 µs, DM/CM 6 kV
- Wide operating temperature: -40 - 75? (-40 - 167°F)
Product Specification
| Device Type | PoE injector - external |
| Power Over Ethernet (PoE) | PoE+ (IEEE 802.3at) |
| Power Device | |
| Input Voltage | 45 - 56 V |
| Input Connectors | 1 x terminal block |
| Power Consumption Operational | 30 Watt |
| Power Output Connectors Details | 1 x RJ-45 |
| Surge Suppression | Yes |
| Expansion / Connectivity | |
| Interfaces | 1 x Gigabit LAN - RJ-45 |
| Miscellaneous | |
| Features | DIN rail mountable, 6000V ESD protection |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, EN 61000-3-2, EN55022, EN 61000-3-3, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-8, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, FCC Part 15 B Class A, IP30 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 75 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 3.2 cm |
| Depth | 7.8 cm |
| Height | 10.3 cm |
| Weight | 295 g |
Features - Intellinet - 561365
More Details
Product Code
04:283217
EAN Code
0766623561365
Manufacturer
Intellinet
No posts found
