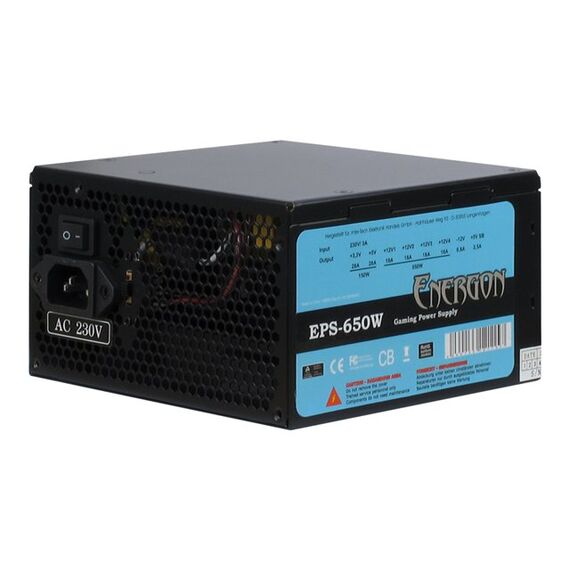

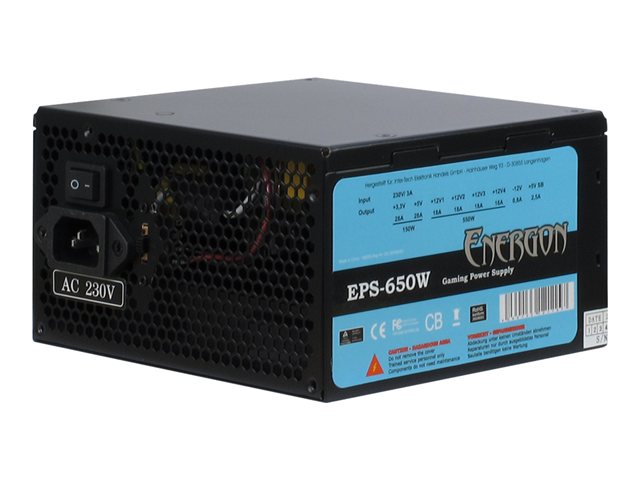

Inter-Tech Energon EPS-650W Power supply ATX12V 2.2/ EPS12V AC 230 V 650 Watt active PFC black
Inter-Tech Energon EPS-650W Power supply ATX12V 2.2/ EPS12V AC 230 V 650 Watt active PFC black
Description For customers who needs high wattage but don't want to spend that much money on a power supply the EPS-650W is the perfect choice. Despite the low price, Inter-Tech has made no compromise in technical or quality aspects.Equipped with active PFC, a super silent fan and P4/EPS connectors the EPS-650W provides all modern extras. PCI-Express connectors for more demanding graphic cards and 4 separated 12 V-lines for a more stable power supply makes this device a real option for every gaming or graphic computer system. Special Features
|
Product Specification
Device Type | Power supply - active Power Factor Correction (PFC) - internal |
Specification Compliance | ATX12V 2.2/ EPS12V |
Colour | Black |
Input Voltage | AC 230 V |
Frequency Required | 60 Hz |
Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 1 x 8 pin PCI Express power with detachable 2 pin section ¦ 4 x 4 PIN internal power ¦ 2 x 15 pin Serial ATA power ¦ 1 x 4 PIN mini-power connector |
Output Voltage | +3.3, +5, ±12 V |
Power Capacity | 650 Watt |
Output Current | +3.3V - 28 A ¦ +5V - 28 A ¦ +12V1 - 18 A ¦ +12V2 - 18 A ¦ +12V3 - 18 A ¦ +12V4 - 18 A ¦ -12V - 0.8 A ¦ +5VSB - 2.5 A |
Cooling System | 120 mm fan |
Features | Manual fan speed control, 4 x 12V rail, temperature controlled fan |
Compliant Standards | TUV, FCC, RoHS |
Service & Support | 2 years warranty |
Service & Support Details | Limited warranty - 2 years |
Sound Emission | 21 dB |
Width | 15 cm |
Depth | 14 cm |
Height | 8.6 cm |
Weight | 1.58 kg |
Shipping Width | 20 cm |
Shipping Depth | 9.5 cm |
Shipping Height | 20 cm |
Shipping Weight | 2.2 kg |
