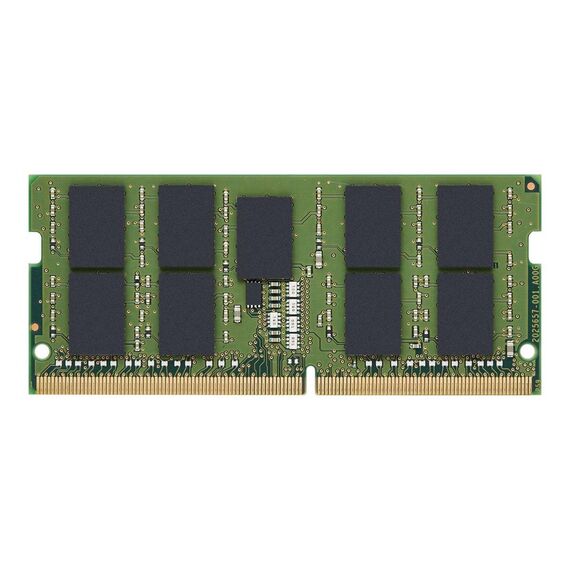

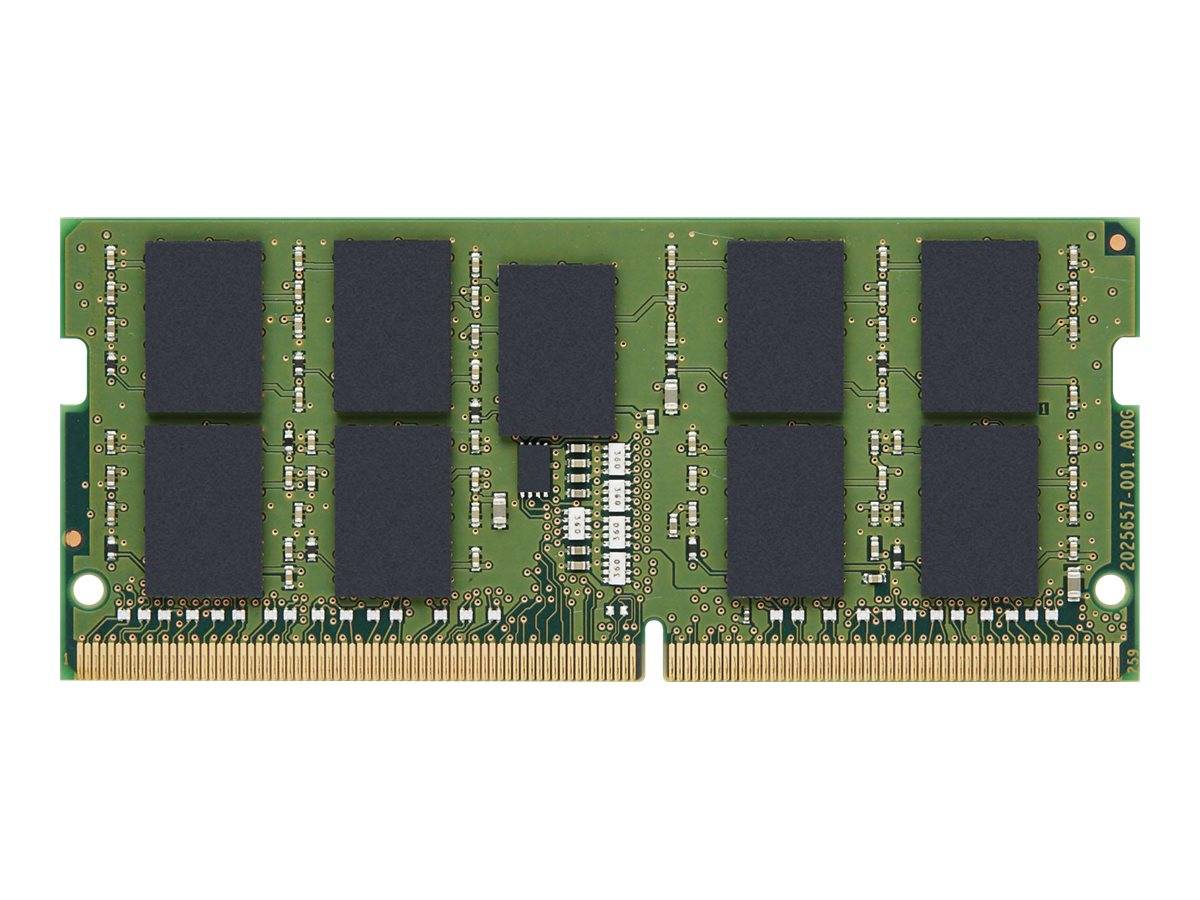

Kingston Server Premier / DDR4 / module / 16 GB / SO-DIMM 260-pin / 2666 MHz / PC4-21300 / CL19 / 1.2 V / unbuffered / ECC | KSM26SED8/16MR
Please sign in so that we can notify you about a reply
Product Specification
| Capacity | 16 GB |
| Upgrade Type | Generic |
| Width | 69.6 mm |
| Depth | 3.7 mm |
| Height | 30 mm |
| Memory | Memory |
| Type | DRAM memory module |
| Technology | DDR4 SDRAM |
| Form Factor | SO-DIMM 260-pin |
| Module Height (inch) | 1.18 |
| Speed | 2666 MHz (PC4-21300) |
| Latency Timings | CL19 (19-19-19) |
| Data Integrity Check | ECC |
| Features | Dual rank, On-Die Termination (ODT), Serial Presence Detect (SPD), sixteen banks, unbuffered |
| Module Configuration | 2048 x 72 |
| Chips Organization | 1024 x 8 |
| Voltage | 1.2 V |
| Lead Plating | Gold |
| Miscellaneous | Miscellaneous |
| Compliant Standards | RoHS, halogen-free, JEDEC |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited lifetime warranty (Russia - 10 years) |
Features - Kingston - KSM26SED8/16MR
More Details
Product Code
03:185333
EAN Code
0740617325201
Manufacturer
Kingston
