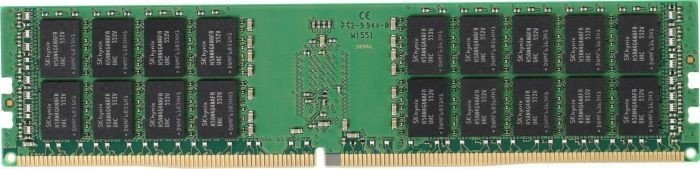

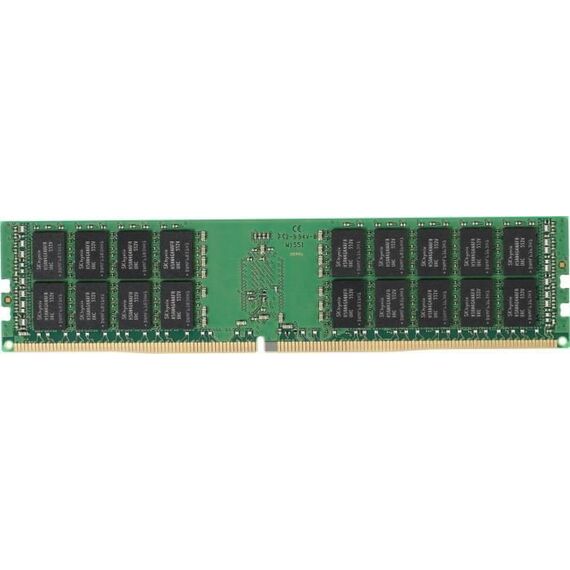

Kingston Server Premier / DDR4 / module / 8 GB / DIMM 288-pin / 3200 MHz / PC4-25600 / CL22 / 1.2 V / registered with parity / ECC | KSM32RS8/8HDR
Please sign in so that we can notify you about a reply
Product Specification
| Capacity | 8 GB |
| Upgrade Type | Generic |
| Width | 133 mm |
| Height | 31.3 mm |
| Memory | Memory |
| Type | DRAM memory module |
| Technology | DDR4 SDRAM |
| Form Factor | DIMM 288-pin |
| Module Height (inch) | 1.23 |
| Speed | 3200 MHz (PC4-25600) |
| Latency Timings | CL22 (22-22-22) |
| Data Integrity Check | ECC |
| Features | Temperature monitoring, single rank, On-Die Termination (ODT), Serial Presence Detect (SPD), sixteen banks, Data Cyclic Redundancy Check (CRC) support, registered with parity |
| Module Configuration | 1024 X 72 |
| Chips Organization | 1024 x 8 |
| Voltage | 1.2 V |
| Lead Plating | Gold |
| Miscellaneous | Miscellaneous |
| Compliant Standards | RoHS, JEDEC |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited lifetime warranty (Russia - 10 years) |
Features - Kingston - KSM32RS8/8HDR
More Details
Product Code
04:352395
EAN Code
0740617308129
Manufacturer
Kingston
