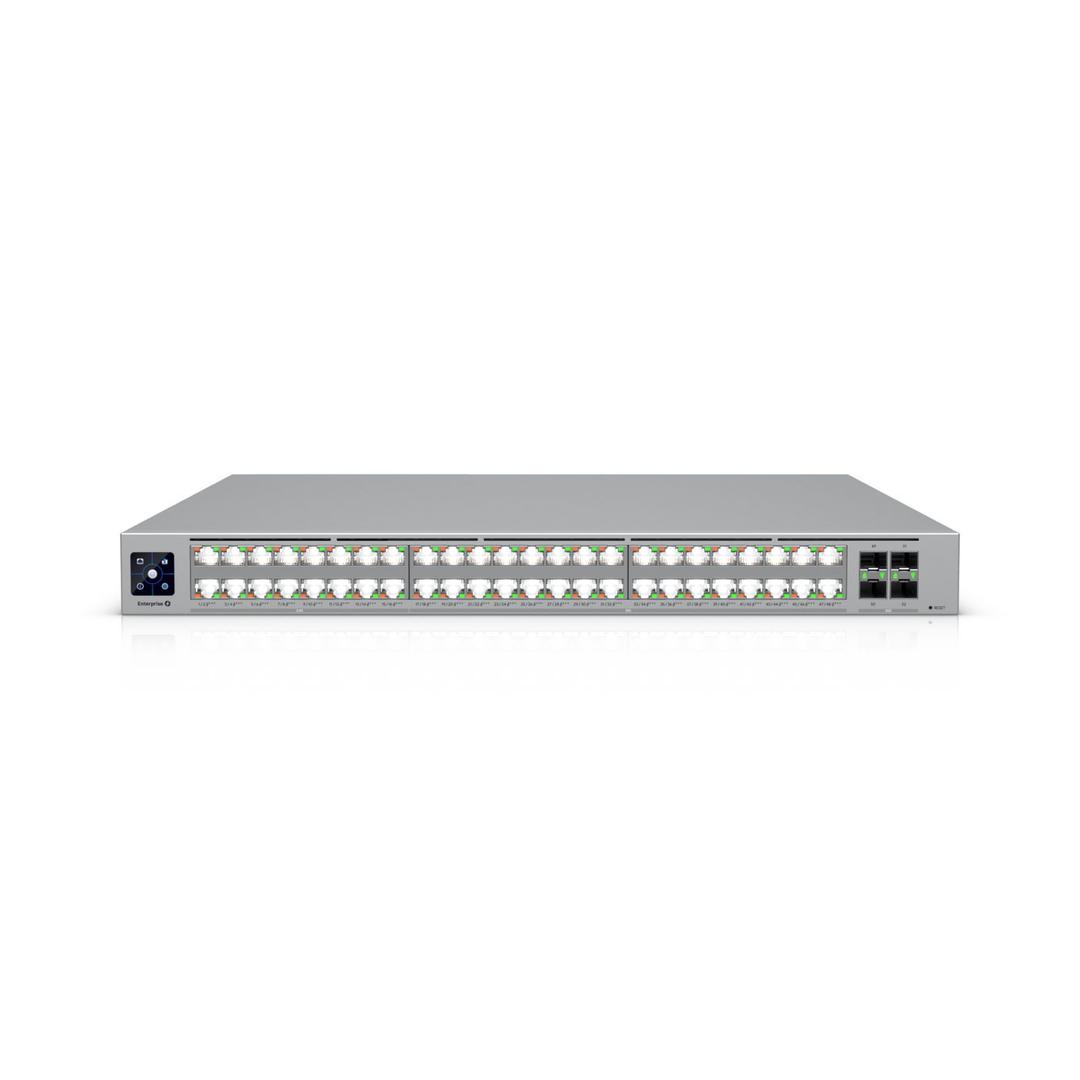

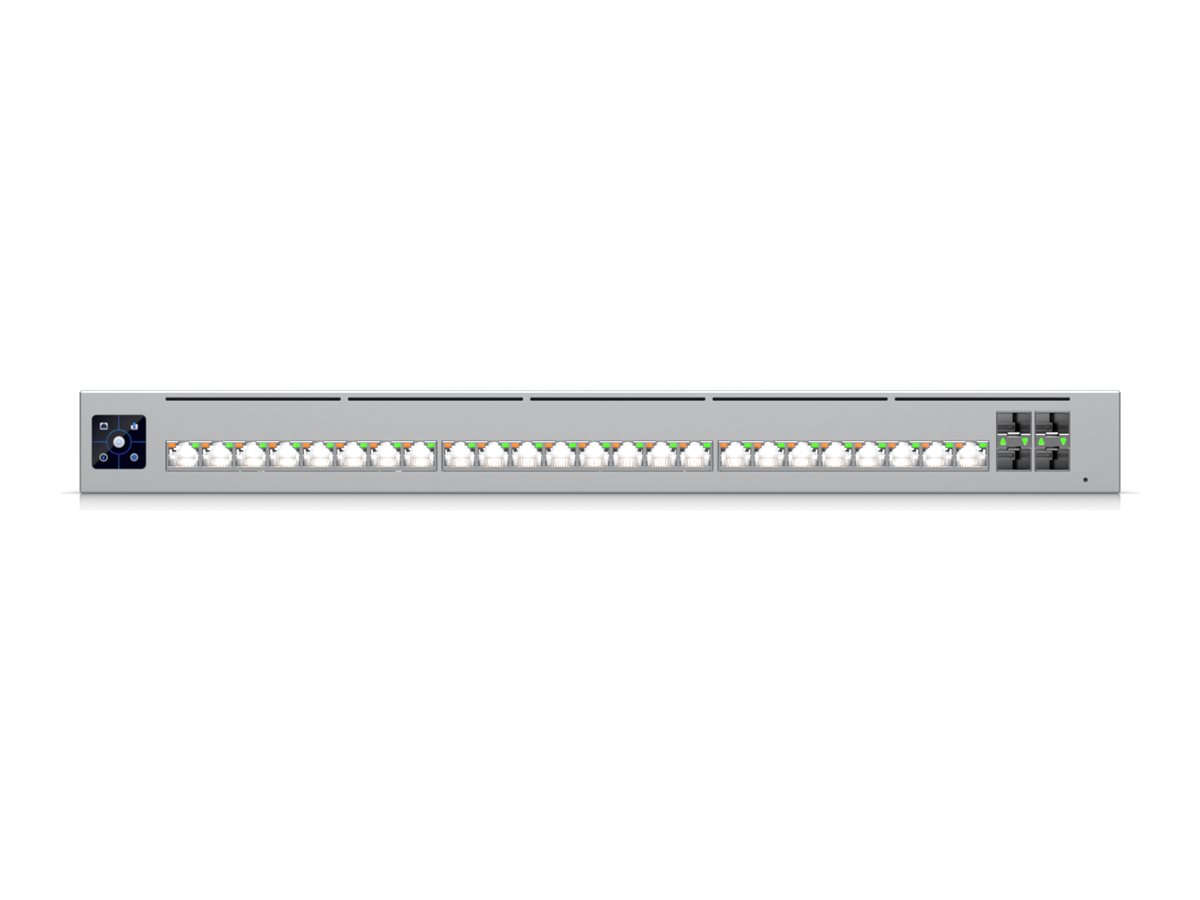

Ubiquiti UniFi Enterprise Campus 48 PoE / Switch / L3 / Managed / 16 x 2.5GBase-T + 32 x 10Gb Ethernet + 4 x 25 Gigabit SFP28 / rack-mountable / PoE Class 4 (2150 W) / for P/N: UACC-AOC-SFP28-5M, UACC-FAN-F2B-4020, UACC-OM-SFP28-SR | ECS-48-POE
ECS-48-POE
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Efficient performance
With a non-blocking switching throughput of 684 Mpps and a forwarding rate of 460 Gbps, the switch efficiently processes network traffic, ensuring smooth data flow for various applications. - Advanced networking capabilities
The switch supports Layer 3 features including static routing and IGMP configuration, enhancing network management and optimization for complex environments. - Enhanced power delivery
Offering a PoE budget of 2150 W, the switch powers connected devices effectively, eliminating the need for separate power sources, and supporting Class 4 PoE for high-power devices. - Robust security features
Security is prioritized with features such as DHCP snooping, port isolation, and device isolation with ACLs, which prevent unauthorized access and ensure network integrity. - Durable housing
The switch is housed in SGCC steel, providing durability and protection within various operating environments, ensuring long-term reliability and performance.
Special Features
- Performance with 920 Gbps switching capacity
- User-friendly 1.3" LCM touch screen for easy management
- 48 ports accommodating speeds up to 25G
- Security features including MAC and IP-based ACLs support
- Designed for a range of environmental conditions
Product Specification
| Device Type | Switch - 48 ports - L3 - Managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet / 25 Gigabit Ethernet |
| Ports | 16 x 2.5GBase-T + 32 x 10Gb Ethernet + 4 x 25 Gigabit SFP28 |
| Power Over Ethernet (PoE) | PoE Class 4 |
| PoE Budget | 2150 W |
| Performance | Switching capacity: 920 Gbps Non-blocking switching throughput: 460 Gbps Forwarding rate: 684 Mpps |
| Capacity | Virtual interfaces (VLANs): 1000 ARP entries: 128000 Packet buffer size: 8 MB IPv4 routes (static): 256000 |
| MAC Address Table Size | 128K entries |
| Jumbo Frame Support | Yes |
| Routing Protocol | STP, RSTP |
| Features | Etherlighting ports, standard mode, reset button, DHCP relay, Inter-VLAN Routing, static routing, LACP, advanced IGMP configuration, DHCP snooping, DHCP guardian, egress rate limit, flow control, MAC and IP-based ACLs support, Device isolation with ACLs, MAC based port restriction, port isolation, port mirroring, Jumbo Frames support, LLDP-MED, Voice VLAN, loop protection, SGCC steel housing, 30KV ESD Protector (air-gap discharge), 19KV ESD Protector (contact discharge), IGMP snooping, 802.1x authentication |
| Built-in Devices | 4 hot-swap fans, 1.3" LCM touch screen display |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 16 x 10/100/1000/2.5G RJ-45 PoE Class 4 - 90 W 32 x 10/100/1000/2.5G/5G/10GBase-T RJ-45 PoE Class 4 - 90 W 4 x 1/10/25Gbit LAN SFP28 |
| Power | Power |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Power Provided | 950 Watt |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Miscellaneous | Miscellaneous |
| Rack Mounting Kit | Included |
| Compliant Standards | ESD, FCC, IC |
| Dimensions & Weight | Dimensions & Weight |
| Width | 44.24 cm |
| Depth | 49.6 cm |
| Height | 4.37 cm |
| Weight | 9.46 kg |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -5 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Compatibility Information | Compatibility Information |
| Designed For | P/N: UACC-AOC-SFP28-5M, UACC-FAN-F2B-4020, UACC-OM-SFP28-SR |
