LANCOM LW-500 - Radio access point - Wi-Fi 5 - 2.4 GHz, 5 GHz (pack of 10) | 61695

61695
2,749.86
(3,272.33 inc. VAT)
Availability: 26 item(s)
Standard DeliveryStandard delivery within 4 to 8 business days.
Delivery
Payment options
Product Code04:301995 EAN Code4044144616952 ManufacturerLancom Systems

Product Features

  • Dual concurrent Wi-Fi with up to 867 Mbps
    The LANCOM LW-500 features two Wi-Fi radio modules, one offering IEEE 802.11ac Wave 2 and the other offering IEEE 802.11n. This provides fast Wi-Fi to 11n-clients in the 2.4 GHz frequency band and also the growing number of modern 11ac-enabled devices in the 5 GHz band.
  • Modern web interface for stand-alone operation
    For stand-alone operation, the intuitive web interface of the WEBconfig provides the best overview for comprehensive management and monitoring. The device is set up in a moments. Modern dashboards clearly display the current Wi-Fi status and enable the simple configuration of individual Wi-Fi networks (SSID) and the associated network keys. Other options include smart features such as the easy integration of new clients using QR codes.
  • Understated smoke-detector design

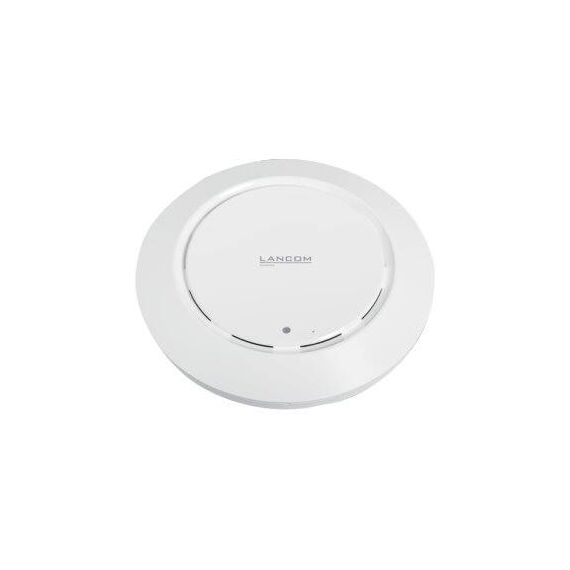

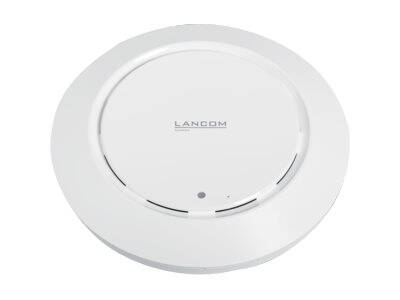

    The LANCOM LW-500 with integrated antennas has an unobtrusive and harmonious form. The round design similar to a smoke detector makes it ideal for unobtrusive use in hotel lobbies or conference rooms. It blends seamlessly into any environment.
  • Operates via the LANCOM Management Cloud
    The LANCOM LW-500 offers unsurpassed user-friendliness: Managed through the LANCOM Management Cloud, it integrates into a holistic, automated network orchestration system based on software-defined networking technology.

Special Fetures

  • Dual concurrent Wi-Fi - parallel operation at 2.4 GHz and 5 GHz with IEEE 802.11ac Wave 2 (Wi-Fi 5) and IEEE 802.11n (Wi-Fi 4)
  • Unobtrusive smoke-detector design with integrated antennas
  • Intuitive web interface (WEBconfig) for easy management and monitoring
  • Automated operation via the LANCOM Management Cloud (LMC)
  • User-friendly, secure integration of external users with the hotspot function of the LANCOM Management Cloud (LMC)

Product Specification

Packaged Quantity10 (specifications are for single item)
Device TypeRadio access point
Width27.6 cm
Depth27.6 cm
Height4 cm
LocalisationWorldwide
Networking
Form FactorExternal
Connectivity TechnologyWireless
Data Transfer Rate867 Mbps
Data Link ProtocolIEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2
Network / Transport ProtocolTCP/IP, PPTP, NetBEUI/NetBIOS, NTP, ICMP/IP, PPPoE, SMTP, DHCP, DNS, RTP, L2TPv2
Routing ProtocolRIP-1, RIP-2, VRRP, GRE, static IPv4 routing, static IPv6 routing
Remote Management ProtocolSNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH
Frequency Band2.4 GHz, 5 GHz
CapacityVLANs supported: 4096
FeaturesBOOTP support, ARP support, IGMP snooping, Syslog support, traffic shaping, firmware upgradable, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Access Control List (ACL) support, RADIUS support, DHCP server, Multiple SSID support, DNS proxy, PoE+, wireless bridge mode, reset button, 2T2R MIMO technology, Wireless Client Mode, DNS server, LACP support, LLDP support, DHCP relay, Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), DHCP client, Space Time Blocking Code (STBC), Denial of Service (DoS), Client Steering, MU-MIMO technology, Internet Control Message Protocol (ICMP), beamforming technology, band steering, IP spoofing, VLAN Double Tagging (Q-in-Q), wireless intrusion protection, NTP client
Encryption AlgorithmRC4, PEAP, TKIP, WPA, WPA2, AES-CCMP, WPA2-Enterprise, WEP
Authentication MethodRADIUS, Radio Service Set ID (SSID), TACACS+, MS-CHAP, MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST
Compliant StandardsIEEE 802.3z, IEEE 802.1Q, IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11e, IEEE 802.11n, IEEE 802.11w, IEEE 802.11r, IEEE 802.11u, IEEE 802.11x, IEEE 802.11ac Wave 2
Aerial
AntennaInternal
Expansion / Connectivity
Interfaces1 x 1000Base-TX - RJ-45 ¦ 1 x 1000Base-TX (PoE) - RJ-45
Miscellaneous
Included AccessoriesWall mounting kit
Cables Included1 x network cable - 3 m
Compliant StandardsEN 300 328, EN 301 489-1, EN 301 893, EN 301 489-17
Power
Power Over Ethernet (PoE) SupportedPoE
Power DeviceExternal power adapter
Voltage RequiredAC 230V
Software / System Requirements
OS ProvidedLCOS LX 4.00
Manufacturer Warranty
Service & SupportLimited warranty - 3 years
Environmental Parameters
Min Operating Temperature0 °C
Max Operating Temperature40 °C
Humidity Range Operating0 - 95% (non-condensing)

Features - Lancom Systems - 61695

More Details
Product Code
04:301995
EAN Code
4044144616952
Manufacturer
Lancom Systems
