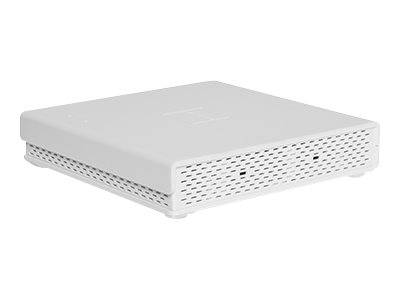

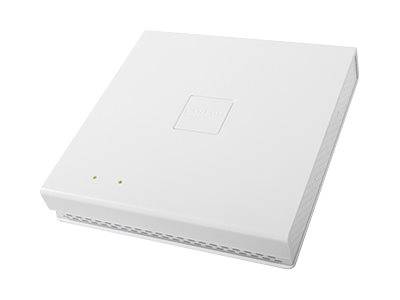

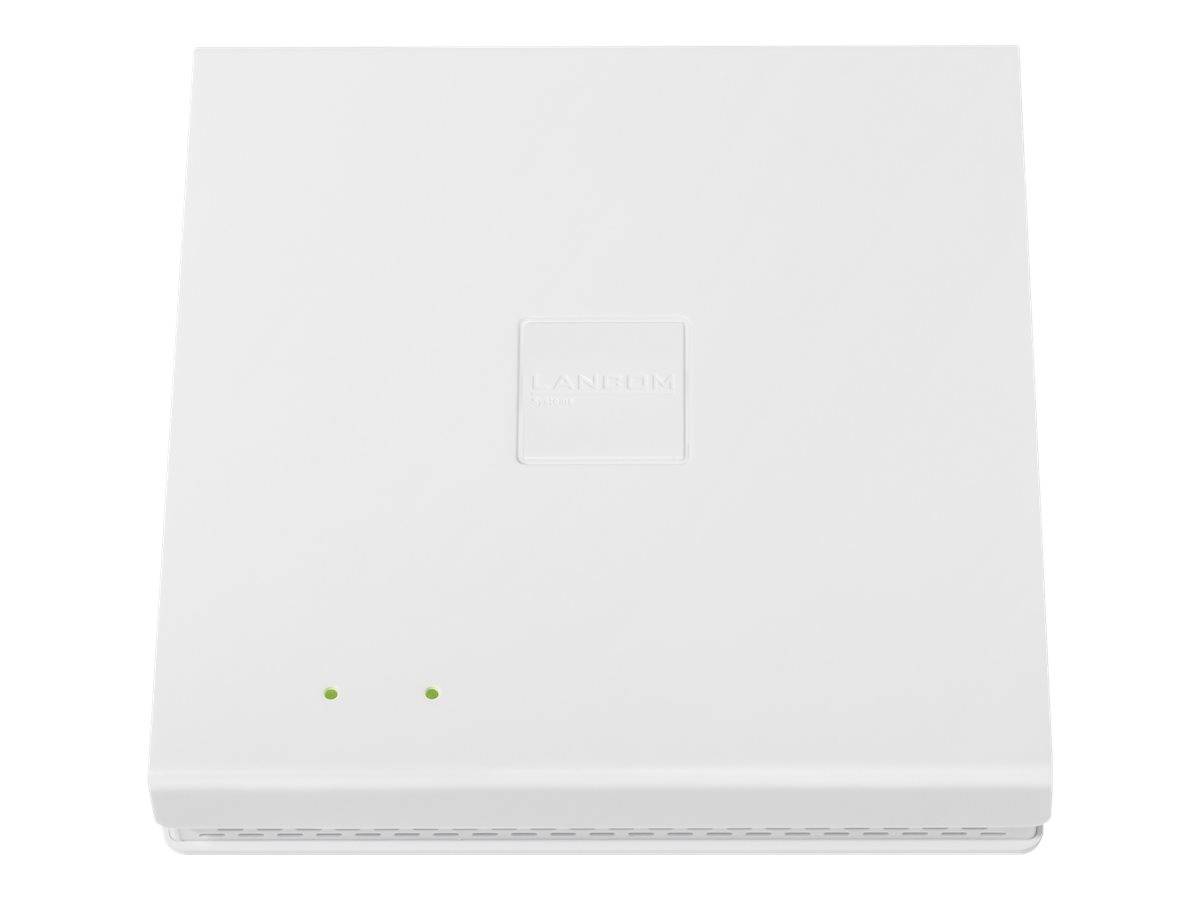

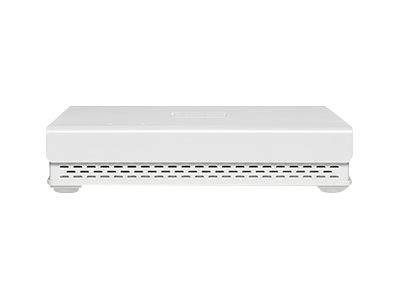

LANCOM LX-6200 / Radio access point / Bluetooth 5.1 LE / Wi-Fi 6, Bluetooth / 2.4 GHz, 5 GHz / cloud-managed | 61871

Product Features

• The superiority of Wi-Fi 6
  Wi-Fi 6 offers many advantages over Wi-Fi 5! The LANCOM whitepaper illustrates this by illustrating the superiority of a WLAN infrastructure based on 2x2 MIMO Wi-Fi 6 access points over an installation with 3x3 MIMO access points with Wi-Fi 5. The document can help you select the WLAN infrastructure that is right for you.
• Dual concurrent Wi-Fi with an aggregated datarate of up to 1,775 Mbps
  The LANCOM LX-6200 offers the Wi-Fi 6 standard (IEEE 802.11ax) for fast wireless LAN for clients in the 2,4- and 5-GHz bands. Wi-Fi 6 technology achieves transmission rates of up to 1,200 Mbps at 5 GHz and simultaneously up to 575 Mbps at 2,4 GHz.
• 2x2 Multi-User MIMO for downlinks and uplinks
  Multi-user MIMO (MU-MIMO for short) simultaneously distributes all of the available spatial streams of the LANCOM LX-6200 between several different clients, rather than one after the other as was formerly the case. The available bandwidth is used efficiently and delays in the wireless network are substantially reduced. With Wi-Fi 6, MU-MIMO is not, as before, only usable in the downlink but now also in the uplink as well.
• USB port 2.0 for IoT readiness
  The integrated USB port of the LANCOM LX-6200 allows proprietary IoT wireless systems to be easily connected to the existing WLAN infrastructure. This enables, for example, the implementation of innovative digital signage solutions such as the ePaper solution from LANCOM by using a LANCOM ePaper USB or the support of third-party electronic price tags.
• Integrated beaconing technology
  The 5.1 Bluetooth Low Energy radio module integrated in the LANCOM LX-6200 is the technical basis for modern BLE beaconing-based applications, such as push advertising services to mobile devices (iBeacon) or the localization of persons or objects (asset tracking/management) via partner solutions.
• Managed via LANCOM Management Cloud, WLAN controller, or stand-alone
  The LANCOM LX-6200 offers the greatest possible versatility in operation: Managed through the LANCOM Management Cloud, it integrates into a holistic, automated network orchestration system based on software-defined networking technology. It is also able to operate with central management by LANCOM WLAN controller or even in stand-alone mode.
• Wi-Fi security standard WPA3
  WPA3, the successor of WPA2, offers important upgrades and security features for small and large networks.

Special Features

• Dual concurrent Wi-Fi - parallel operation at 2,4 GHz and 5 GHz with Wi-Fi 6 (IEEE 802.11ax)
• 2x2 multi-user MIMO for simultaneous beam-steering for multiple clients in down- an uplink mode
• USB 2.0 port for connecting wireless IoT systems
• 5.1 Bluetooth Low Energy radio module for innovative beaconing applications
• Automated operation via the LANCOM Management Cloud (LMC)
• WLAN controller support (including layer-3 tunneling)
• Support of the security standard WPA3
