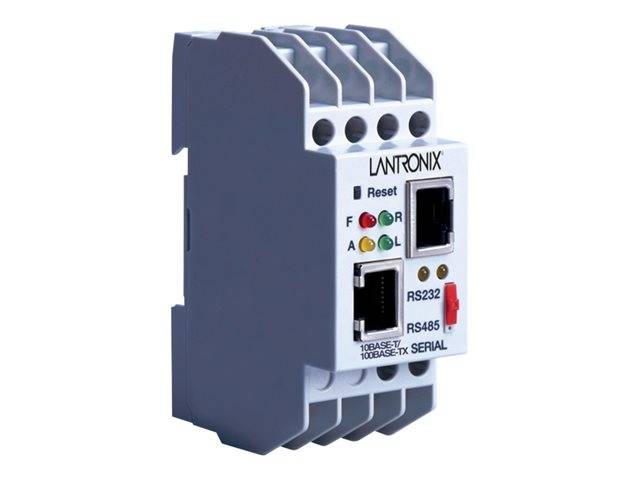

Lantronix Industrial Device Server XPress DR / Device server / 100Mb LAN, RS-232, RS-422, RS-485 / AC 9 / 24 V / DC 9 / 30 V / rail mountable | XSDRSN-03
Description
The XPress DR Device Servers allow virtually any serial device to be connected to a new or existing Ethernet network. By encapsulating serial data and transporting it over Ethernet, the XPress DR allows virtual serial links to be established over Ethernet. By using these units, limited-distance, point-to-point, and direct serial connections can be extended within the plant, throughout the facility, or across the global enterprise. Packaged in a rugged DIN-rail mount case and featuring galvanic isolation, Ethernet isolation and more, the XPress DR is ideal for virtually any industrial application.
Lantronix Industrial Device Server XPress DR / Device server | XSDRSN-03
Special Features
- Connects enterprise systems to factory floor devices without disturbing existing control networks
- Allows remote firmware upgrades, saving money and time from manual upgrades
- Configurable serial interface supports RS-232, RS-422, or RS-485
- Isolated serial and Ethernet ports
- RoHS compliant
Product Specification
| Device Type | Device server |
| Width | 9 cm |
| Depth | 6 cm |
| Height | 3.6 cm |
| Form Factor | DIN rail mountable |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, RS-232, RS-422, RS-485 |
| Network / Transport Protocol | TCP/IP, UDP/IP, ICMP/IP, ARP, BOOTP, DHCP |
| Remote Management Protocol | SNMP, Telnet, HTTP, TFTP |
| Status Indicators | Link OK, fail, active, transmit, receive, ready |
| Features | Flow control, 2 kV Port to Port Isolation |
| Interfaces | 1 x 100Base-TX - RJ-45 ¦ 1 x RS-232/422/485 - RJ-45 ¦ 1 x RS-232/422/485 - terminal block (screw) |
| Compliant Standards | CSA, VCCI, RoHS, ERP, UL Class I Division 2, RCM |
| Voltage Required | AC 9 - 24 V / DC 9 - 30 V |
| Power Consumption Operational | 3 Watt |
| Software Included | Lantronix DeviceInstaller |
| OS Required | Microsoft Windows |
| Service & Support | Limited warranty - 1 year |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 60 °C |
| Humidity Range Operating | 20 - 90% (non-condensing) |
Features - LANTRONIX - XSDRSN-03
More Details
Product Code
M090313
EAN Code
0783384236929
Manufacturer
LANTRONIX
