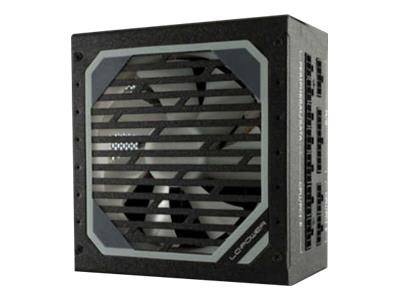

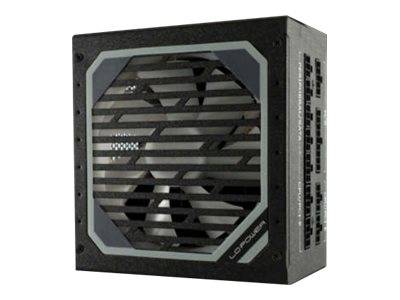

LC Power Super Silent Modular Series LC6650M V2.31 / Power supply (internal) / ATX12V 2.3/ EPS12V / 80 PLUS Gold / AC 110-240 V / 650Watt / active PFC / hammered black | LC6650M V2.31
Please sign in so that we can notify you about a reply
LC Power Super Silent Modular Series LC6650M V2.31 / Power supply (internal) / ATX12V 2.3/ EPS12V / 80 PLUS Gold / AC 110-240 V / 650 Watt / active PFC / hammered black | LC6650M V2.31
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 2.3/ EPS12V |
| PSU Form Factor | ATX |
| Colour | Hammered black |
| Input Voltage | AC 110-240 V |
| Frequency Required | 47 - 60 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 6 x 8 pin PCI Express power with detachable 2 pin section ¦ 10 x 7 pin Serial ATA ¦ 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 1 x 4 pin internal power (12V) |
| Output Voltage | +3.3, +5, +12 V |
| Power Capacity | 650 Watt |
| Output Current | +5V - 20 A ¦ +3.3V - 20 A ¦ +12V - 54 A ¦ -12V - 0.3 A ¦ +5VSB - 2.5 A |
| Efficiency | 90% |
| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Gold |
| Cooling System | 120 mm fan |
| Features | Over voltage protection, overpower protection, undervoltage protection, short-circuit protection, fully modular |
| Service & Support | Limited warranty - 3 years |
| Width | 8.6 cm |
| Depth | 15 cm |
| Height | 14.2 cm |
| Weight | 2.19 kg |
| Shipping Width | 11.5 cm |
| Shipping Depth | 27 cm |
| Shipping Height | 18.6 cm |
| Shipping Weight | 2.47 kg |
Features - LC-Power - LC6650M V2.31
More Details
Product Code
04:422920
EAN Code
4260070128639
Manufacturer
LC-Power
