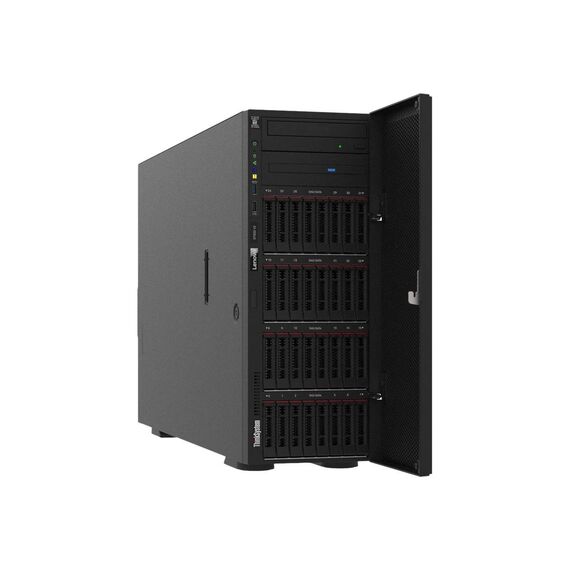

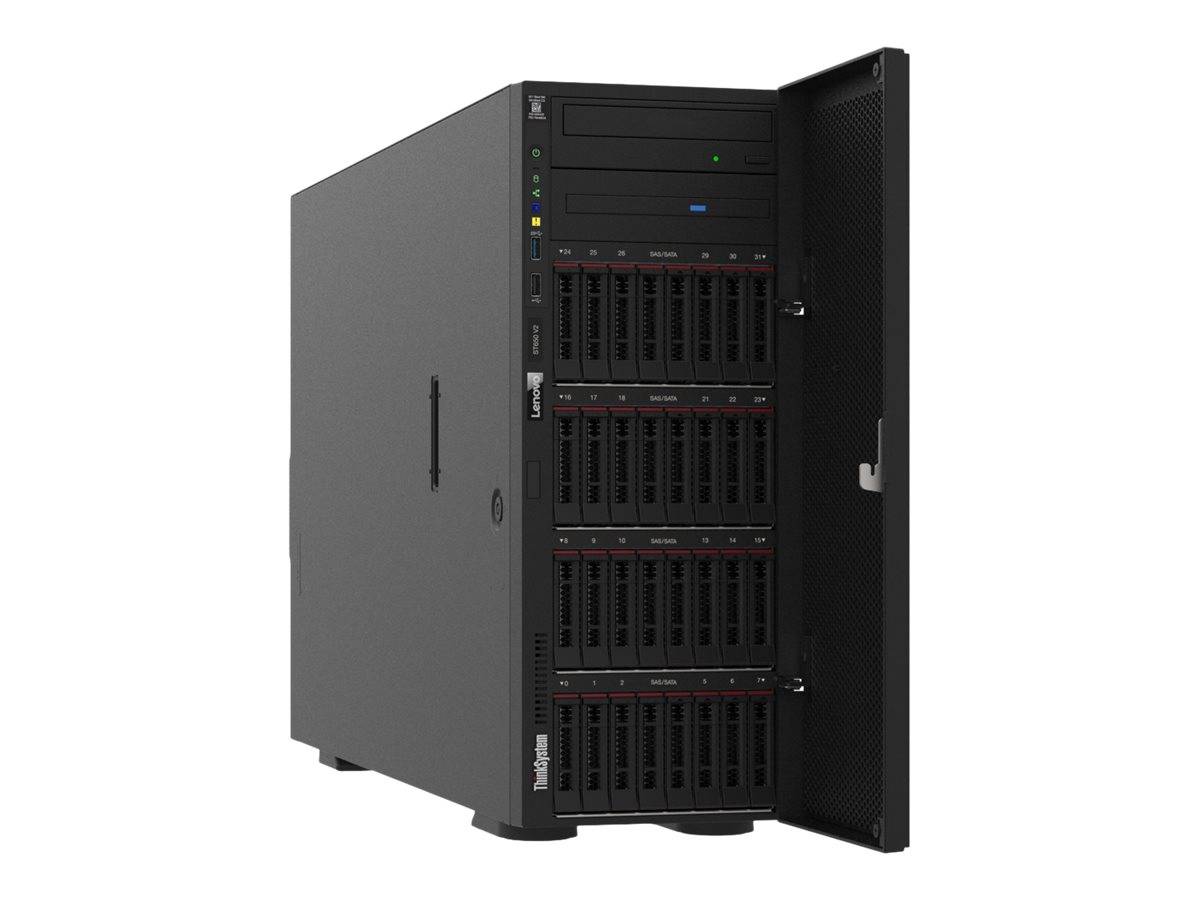

Lenovo ThinkSystem ST650 V2 7Z74 / Server / tower 4U / 2-way / 1 x Xeon Silver 4310 / up to 3.3 GHz / RAM 32 GB / SAS / hot-swap 2.5" bay(s) / no HDD / Matrox G200 / Gigabit Ethernet, 10 Gigabit Ethernet / no OS / monitor: none | 7Z74A03TEA
7Z74A03TEA
Product Code09:7Z74A03TEA
ManufacturerLenovo
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Flexible and future-ready
ST650 V2 introduces advanced IT adaptability to address an ever-widening range of workload requirements for the modern enterprise. Support for NVMe drives enable rapid data ingest capabilities to address the explosion of Internet of Things (IoT) devices and sensors feeding data growth. NVMe drives provide ultra-fast storage and can be used in combination with huge memory landscape to tier critical data for greater application performance. - Secure design
Protecting your business is of utmost importance for Lenovo, and this continues with ThinkSystem ST650 V2. Lenovo ThinkShield is a comprehensive end-to-end approach to security from development to supply chain and the full life cycle of the device. Physical and software security technologies extend to the lockable security bezel, chassis intrusion switch, and TPM 2.0, which are ideal for remote locations. - Integrated IT management
Lenovo XClarity Controller is the management hardware engine inside every ThinkSystem server, and XClarity Administrator centralizes management of your ThinkSystem and ThinkAgile infrastructure. With Redfish APIs and XClarity integrators, you can easily integrate the Lenovo infrastructure into higher-level IT applications.
Special Features
- Flexible and future-ready
- Secure design
- Integrated IT management
Product Specification
| Type | Server |
| Product Form Factor | Tower - 4U |
| Built-in Devices | Led panel, 3 x fans |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Server Scalability | 2-way |
| Front Accessible Bays Qty | 2 |
| Hot-Swap Bays Qty | 8 |
| Localisation | Region: EMEA |
| Processor / Chipset | Processor / Chipset |
| CPU | Intel Xeon Silver 4310 |
| Clock Speed | 2.1 GHz |
| Max Turbo Speed | 3.3 GHz |
| Number of Cores | 12-core |
| CPU Qty | 1 |
| Max CPU Qty | 2 |
| Chipset Type | Intel C621A |
| Cache Memory | Cache Memory |
| Installed Size | L3 Cache - 18 MB |
| Cache Per Processor | 18 MB |
| RAM | RAM |
| Installed Size | 32 GB (installed) / 2 TB (max) |
| Technology | DDR4 SDRAM - ECC |
| Effective Memory Speed | 2667 MHz |
| Rated Memory Speed | 3200 MHz |
| Form Factor | DIMM 288-pin |
| Slots | 32 (Total) / 31 (empty) |
| Features | Registered, Memory Mirroring, 8-channel memory architecture, TruDDR4, slots 17 - 32 are available in two-processor configuration only |
| Configuration Features | 1 x 32 GB |
| RAM Supported | 4 TB 3DS registered 2 TB registered 5 TB Persistent Memory |
| Hard Drive | Hard Drive |
| Type | No HDD |
| Storage Controller | Storage Controller |
| Type | 1 x RAID - PCIe 3.0 x8 |
| Controller Interface Type | SATA 6Gb/s / SAS 12Gb/s |
| Storage Controller Name | ThinkSystem RAID 930-8i |
| Channel Qty | 8 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 10, RAID 50, JBOD, RAID 60 |
| Buffer Size | 2 GB |
| Optical Storage | Optical Storage |
| Type | No optical drive |
| Monitor | Monitor |
| Monitor Type | None. |
| Graphics Controller | Graphics Controller |
| Graphics Processor | Matrox G200 |
| Video Memory | 16 MB |
| Video Interfaces | VGA |
| Networking | Networking |
| Ethernet Ports | 2 x 10 Gigabit Ethernet |
| Ethernet Controller | Broadcom BCM57416 |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet |
| Remote Management Controller | XClarity Controller (XCC) Enterprise |
| Features | PXE support |
| Expansion / Connectivity | Expansion / Connectivity |
| Bays | 2 (total) / 2 (free) x external 5.25" x 1/2H 8 (total) / 8 (free) x hot-swap 2.5" |
| Slots | 2 PCIe 4.0 x16 - full-length, full-height 1 PCIe 4.0 x8 - full-length, full-height (x4 mode) 1 PCIe 4.0 x8 - full-length, full-height 1 (total) / 1 (free) x PCIe 4.0 x8 - full-length, full-height (2 processors must be installed) 2 (total) / 2 (free) x PCIe 4.0 x16 - full-length, full-height (2 processors must be installed) 1 (total) / 1 (free) x PCIe 4.0 x8 - full-length, full-height (2 processors must be installed) |
| Interfaces | 7 x USB 3.1 Gen 1 (1 front, 4 rear, 2 internal) 1 x USB 2.0 (1 in front) 1 x VGA 1 x serial 1 x management (Gigabit Ethernet) - RJ-45 2 x LAN (10Gigabit Ethernet) - RJ-45 |
| Miscellaneous | Miscellaneous |
| Theft/Intrusion Protection | Chassis intrusion switch |
| Compliant Standards | BSMI CNS 13438 Class A, EN 61000-3-2, EN 61000-3-3, EN55024, CB, CCC, FCC Part 15 A, GREENGUARD, GB 17625.1, CECP, VCCI Class A, EN 50581, GB 4943.1, KN35, UL 2819, AS/NZS CISPR 32 Class A, KN32 Class A, CNS 14336-1, EN 62368-1, IEC 62368-1, EN 55032 Class A, CISPR 32 Class A, EN 55035, CISPR 35, CELP, HJ 2507-2011, TP EAC 037/2016, AS/NZS 62368.1, UKCA, ANSI/UL 62368-1, ICES-003 issue 7 Class A, GB/T9254, CQC3135 |
| Power | Power |
| Device Type | Power supply - hot-plug |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Voltage Required | AC 100-127/200-240 V (50/60 Hz) |
| Power Provided | 1100 Watt |
| 80 PLUS Certification | 80 PLUS Titanium |
| Operating System / Software | Operating System / Software |
| OS Provided | No operating system |
| Sustainability Information | Sustainability Information |
| EPEAT Compliant | EPEAT Bronze |
| ENERGY STAR Certified | Yes |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years - on-site - response time: next business day |
| Dimensions & Weight | Dimensions & Weight |
| Width | 17.5 cm |
| Depth | 73.4 cm |
| Height | 46.2 cm |
| Weight | 39.28 kg |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 59.7 cm |
| Shipping Depth | 99.6 cm |
| Shipping Height | 37.4 cm |
