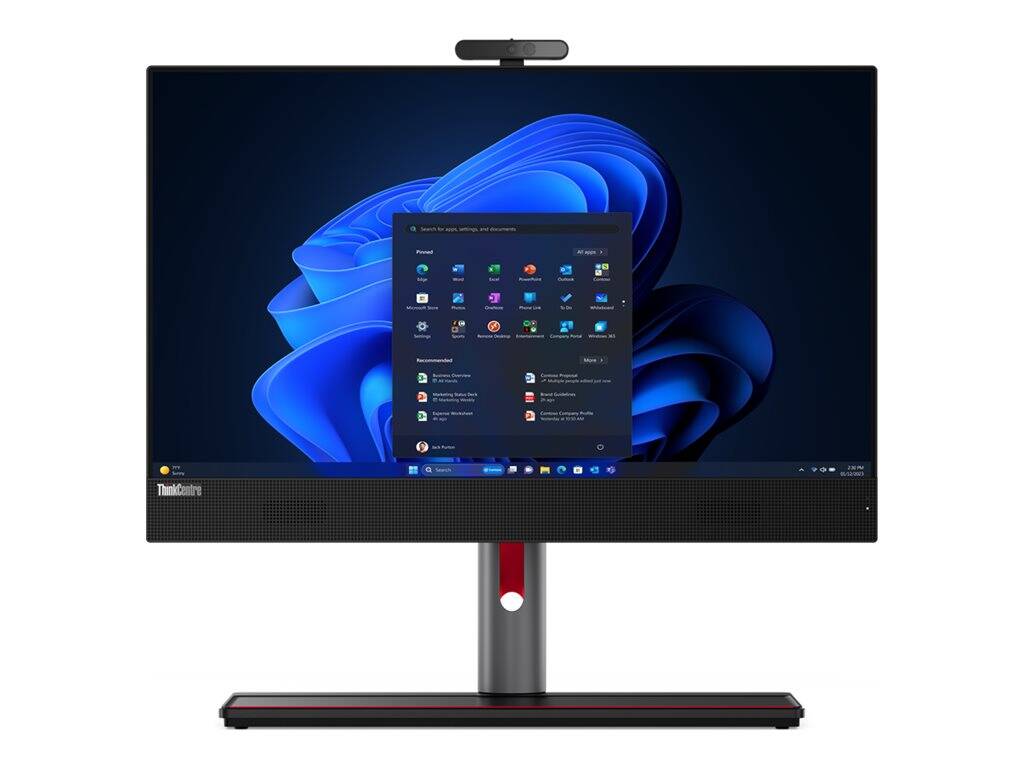

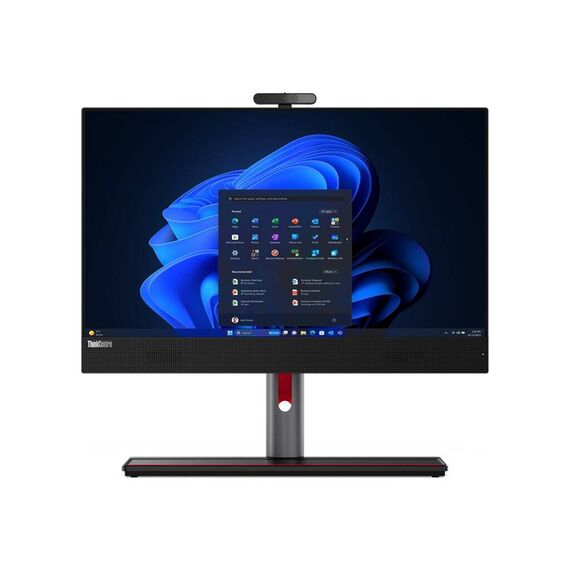

Lenovo ThinkCentre M90a Gen 5 12SH / All-in-one / with Full Function Monitor stand / Core i5 i5-14500 / 2.6 GHz / vPro Enterprise / RAM 16 GB / SSD 512 GB / monitor: LED 23.8" / keyboard: German | 12SH000QGE
Please sign in so that we can notify you about a reply
Product Features
- Enhanced audio experience
Equipped with Dolby Atmos and High Definition Audio standards, this all-in-one desktop delivers a rich, immersive audio experience through its dual array microphone and stereo speakers. - Seamless connectivity
Featuring a wide range of ports including USB 3.2 Gen 1 and 2, USB-C 3.2 Gen 2, HDMI, and DisplayPort 1.4, this desktop ensures fast data transfer and multiple display options for enhanced productivity. - Advanced security
With features like ThinkShutter camera privacy, Windows Hello, hybrid IR camera, and a Discrete Trusted Platform Module (TPM 2.0) security chip, your privacy and data are safeguarded against unauthorized access. - Superior display technology
The 23.8-inch Full HD IPS LED display with Flicker-Free technology, Low Blue Light technology, and anti-glare, bezel-less design offers a comfortable viewing experience without straining your eyes. - Powerful performance
Powered by a 14th Generation Intel Core i5 processor, DDR5 SDRAM, and an SSD with NVMe and TCG Opal Encryption 2, this desktop delivers high-speed performance and secure storage solutions.
Special Features
- 23.8-inch Full HD 1080p display with LED backlight for vivid image clarity
- Dolby Atmos and High Definition Audio for an exceptional sound experience
- Intel Core i5 processor and DDR5 memory for high-speed performance
- Built-in security features including TPM 2.0 and ThinkShutter camera privacy
- Multiple connectivity options with USB 3.2, USB-C, HDMI, and DisplayPort
Product Specification
| Platform Technology | Intel vPro Enterprise |
| Type | Personal computer |
| Bundled Services | 1 Year Lenovo Premier Support |
| Product Form Factor | All-in-one - with Full Function Monitor stand |
| Built-in Devices | Stereo speakers |
| Embedded Security | Discrete Trusted Platform Module (TPM 2.0) Security Chip |
| Colour | Black |
| Localisation | Language: German / region: Germany |
| Processor / Chipset | Processor / Chipset |
| CPU | Intel Core i5 (14th Gen) i5-14500 |
| Clock Speed | 2.6 GHz (P-core) / 1.9 GHz (E-core) |
| Max Turbo Speed | 5 GHz (P-core) / 3.7 GHz (E-core) |
| Number of Cores | 14-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Chipset Type | Intel Q670 |
| Cache Memory | Cache Memory |
| Installed Size | 24 MB |
| Cache Per Processor | 24 MB |
| RAM | RAM |
| Installed Size | 16 GB / 64 GB (max) |
| Technology | DDR5 SDRAM - non-ECC |
| Effective Memory Speed | 4800 MHz |
| Rated Memory Speed | 4800 MHz |
| Form Factor | SO-DIMM 262-pin |
| Slots | 2 (Total) / 1 (empty) |
| Features | Dual channel memory architecture |
| Configuration Features | 1 x 16 GB |
| Hard Drive | Hard Drive |
| Type | SSD - M.2 2280 |
| Capacity | 1 x 512 GB |
| Interface Type | PCI Express 4.0 x4 |
| Features | TCG Opal Encryption 2, NVM Express (NVMe), Performance |
| Storage Controller | Storage Controller |
| Type | 1 x RAID |
| RAID Level | RAID 0, RAID 1 |
| Optical Storage | Optical Storage |
| Type | DVD±RW DVD-Writer - SATA |
| Card Reader | Card Reader |
| Type | 3 in 1 card reader |
| Supported Flash Memory Cards | SD Memory Card, SDHC Memory Card, SDXC Memory Card |
| Monitor | Monitor |
| Monitor Type | LED - IPS |
| Diagonal Size | 23.8" |
| Native Resolution | 1920 x 1080 (Full HD) |
| V-Sync Rate at Max Res. | 60 Hz |
| Widescreen Display | Yes |
| Image Aspect Ratio | 16:9 |
| Horizontal Viewing Angle | +89 / -89 |
| Vertical Viewing Angle | +89 / -89 |
| Colour Gamut | 99% sRGB |
| Response Time | 14 ms |
| Image Brightness | 250 cd/m² |
| Image Contrast Ratio | 1000:1 |
| Monitor Features | Anti-glare, Flicker Free technology, borderless, Low Blue Light technology, Eyesafe technology, tilt stand (-5°- 20°) |
| Graphics Controller | Graphics Controller |
| Graphics Processor | Intel UHD Graphics 770 Shared Video Memory (UMA) |
| Video Interfaces | HDMI, DisplayPort |
| Max Monitors Supported | 2 |
| Audio Output | Audio Output |
| Compliant Standards | High Definition Audio, Dolby Atmos |
| Speakers Included | 2 x right / left channel |
| Camera | Camera |
| Camera | Yes |
| Resolution (MP) | 5 Megapixel |
| Features | Windows Hello, ThinkShutter camera privacy, hybrid IR camera |
| Input Device | Input Device |
| Type | Mouse, keyboard |
| Keyboard | Keyboard |
| Keyboard Name | Lenovo Traditional Keyboard |
| Interface | USB |
| Localization & Layout | German |
| Mouse | Mouse |
| Mouse Name | Lenovo Calliope Mouse |
| Interface | USB |
| Audio Input | Audio Input |
| Type | Dual array microphone |
| Networking | Networking |
| Interface (Bus) Type | M.2 Card |
| Ethernet Controller | Intel I219-LM |
| Wireless LAN Supported | Yes |
| Wireless NIC | Intel Wi-Fi 6E AX 211 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.1, IEEE 802.11ax (Wi-Fi 6E) |
| Features | Wake on LAN (WoL), dual stream (2x2) |
| Expansion / Connectivity | Expansion / Connectivity |
| Bays | 1 (total) / 0 (free) x external 5.25" Slim Line |
| Slots | 1 (total) / 0 (free) x M.2 Card (for WLAN) ¦ 3 (total) / 2 (free) x M.2 Card (for SSD) |
| Interfaces | 3 x USB 3.2 Gen 1 (3 rear) ¦ 1 x USB-C 3.2 Gen 2 (1 rear) (data transfer, 15W charging) ¦ 1 x HDMI (1 rear) ¦ 1 x DisplayPort 1.4 (1 rear) ¦ 1 x LAN (1 rear) ¦ 3 x USB 3.2 Gen 2 (3 side) ¦ 1 x headphones/microphone (1 side) |
| Miscellaneous | Miscellaneous |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| VESA Mounting Interface | 100 x 100 mm |
| Compliant Standards | RoHS, FIPS 140-2, GREENGUARD, Energy-Related Products (ErP) Lot 3, TUV Rheinland Flicker Free Certification, TCG Certified, TUV Rheinland Low Blue Light (Software Solution), UL Anti-dust, TCO Certified 9.0, Eyesafe Certification |
| Manufacturer Selling Program | TopSeller |
| Power | Power |
| Device Type | Power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Provided | 180 Watt |
| Efficiency | 90% |
| Operating System / Software | Operating System / Software |
| OS Provided | Windows 11 Pro German |
| Sustainability Information | Sustainability Information |
| EPEAT Compliant | EPEAT Gold |
| ENERGY STAR Certified | Yes |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Base warranty - 3 years - on-site ¦ Extended warranty - 1 year - on-site - response time: next business day |
| Dimensions & Weight | Dimensions & Weight |
| Dimensions & Weight Details | 53.96 cm - 21.731 cm - 50.185 cm - 8.13 kg - with stand (highest position) ¦ 53.96 cm - 21.731 cm - 39.366 cm - 8.13 kg - with stand (lowest position) |
| Width | 53.96 cm |
| Depth | 21.731 cm |
| Height | 50.185 cm |
| Weight | 8.13 kg |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 66 cm |
| Shipping Depth | 22.8 cm |
| Shipping Height | 57.5 cm |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 20 - 80% |
