Home/Desktop computers/Mini desktop PC/Lenovo ThinkEdge SE10 12NH / USFF / Atom x6214RE / 1.4 GHz / RAM 4 GB / SSD 256 GB / TCG Opal Encryption 2, NVMe / UHD Graphics / GigE, 2.5 GigE / WLAN: 802.11a/b/g/n/ac/ax, Bluetooth 5.1 / no OS / monitor: none / black / TopSeller | 12NH0004GE

Lenovo ThinkEdge SE10 12NH / USFF / Atom x6214RE / 1.4 GHz / RAM 4 GB / SSD 256 GB / TCG Opal Encryption 2, NVMe / UHD Graphics / GigE, 2.5 GigE / WLAN: 802.11a/b/g/n/ac/ax, Bluetooth 5.1 / no OS / monitor: none / black / TopSeller | 12NH0004GE

Description
Features
Reviews

Special Features

A discrete TPM 2.0 chip for data encryption provides comprehensive end-to-end security
Abundant connectivity options for transporting IoT data to the business cloud without any hassle
With advanced power management features and a 15 W CPU, this device is a energy efficient computer
Optimized to reduce power consumption, with ENERGY STAR and EPEAT Silver certifications

Product Specification

Type	Personal computer
Product Form Factor	Ultra small form factor
Embedded Security	Discrete Trusted Platform Module (TPM 2.0) Security Chip
Colour	Black
Localisation	Language: German / region: Germany
Processor / Chipset	Processor / Chipset
CPU	Intel Atom x6214RE
Clock Speed	1.4 GHz
Number of Cores	Dual-Core
CPU Qty	1
Max CPU Qty	1
Cache Memory	Cache Memory
Installed Size	1.5 MB
Cache Per Processor	1.5 MB
RAM	RAM
Installed Size	4 GB / 32 GB (max)
Technology	DDR4 SDRAM - IB-ECC
Effective Memory Speed	3200 MHz
Rated Memory Speed	3200 MHz
Form Factor	SO-DIMM 260-pin
Slots	2 (Total) / 1 (empty)
Configuration Features	1 x 4 GB
Hard Drive	Hard Drive
Type	SSD - M.2 2280
Capacity	1 x 256 GB
Interface Type	PCI Express 4.0 x4
Features	TCG Opal Encryption 2, NVM Express (NVMe)
Optical Storage	Optical Storage
Type	No optical drive
Card Reader	Card Reader
Type	Card reader
Supported Flash Memory Cards	SD Memory Card
Monitor	Monitor
Monitor Type	None.
Graphics Controller	Graphics Controller
Graphics Processor	Intel UHD Graphics Shared Video Memory (UMA)
Video Interfaces	HDMI, DisplayPort
Networking	Networking
Interface (Bus) Type	M.2 Card
Ethernet Ports	2 x 2.5 Gigabit Ethernet
Ethernet Controller	Intel I225-IT
Wireless LAN Supported	Yes
Wireless NIC	Intel Wi-Fi 6E AX 210
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, 802.11ax, Bluetooth 5.1
Features	Wake on LAN (WoL), dual stream (2x2)
Expansion / Connectivity	Expansion / Connectivity
Slots	1 (total) / 0 (free) x M.2 Card (for SSD) Â¦ 1 (total) / 0 (free) x M.2 Card (for WLAN)

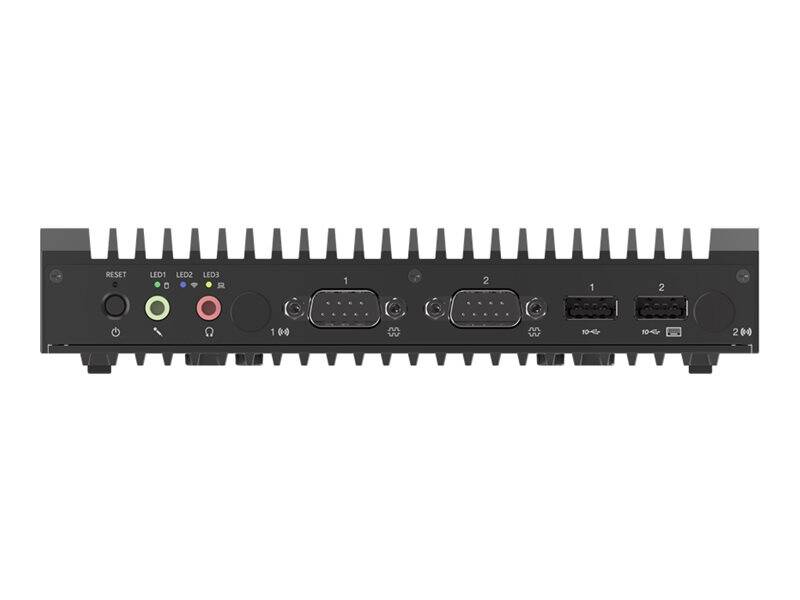

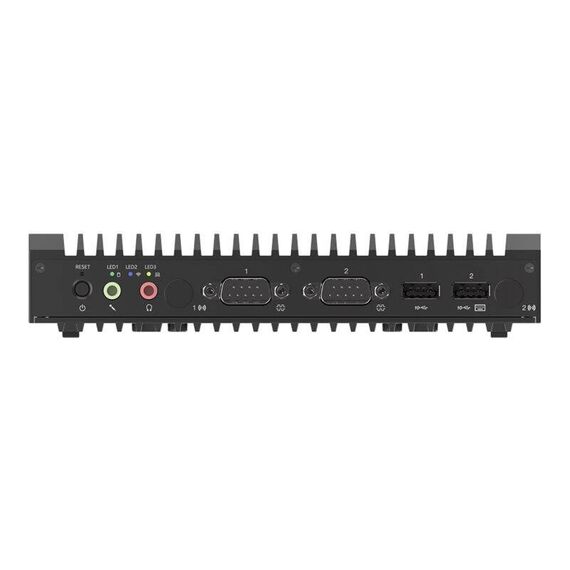

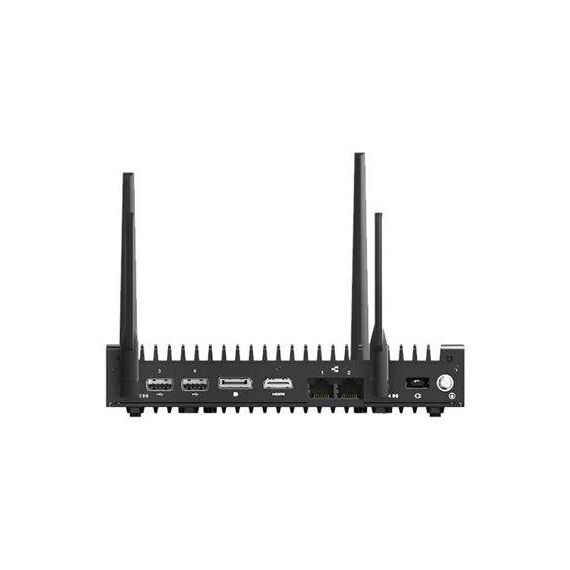

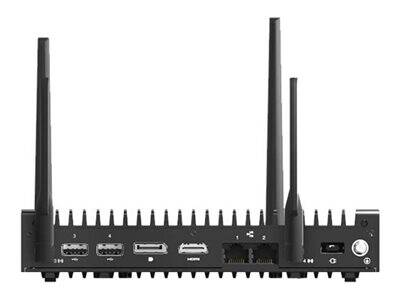

Interfaces	2 x serial (2 in front) Â¦ 2 x USB 3.2 Gen 2 (2 in front) Â¦ 1 x audio line-out (1 in front) Â¦ 1 x microphone (1 in front) Â¦ 1 x HDMI (1 rear) Â¦ 1 x DisplayPort 1.4 (1 rear) Â¦ 2 x USB 2.0 (2 rear) Â¦ 2 x LAN (2.5Gigabit Ethernet) (2 rear) Â¦ 2 x Wi-Fi aerial - RP-SMA
Miscellaneous	Miscellaneous
Included Accessories	VESA mounting kit, DIN-rail bracket, IP50 dust cover kit
VESA Mounting Interface	100 x 100 mm, 75 x 75 mm
Compliant Standards	RoHS, WEEE, Energy-Related Products (ErP) Lot 6, REACH, low halogen, Energy-Related Products (ErP) Lot 26, TED
Manufacturer Selling Program	TopSeller
Power	Power
Device Type	Power adapter
Voltage Required	AC 100-240 V (50/60 Hz)
Power Provided	65 Watt
Efficiency	88%
Operating System / Software	Operating System / Software
OS Provided	No operating system
Manufacturer Warranty	Manufacturer Warranty
Service & Support	Limited warranty - 3 years - on-site
Dimensions & Weight	Dimensions & Weight
Width	17.9 cm
Depth	13.5 cm
Height	3.45 cm
Weight	1.5 kg
Environmental Parameters	Environmental Parameters
Min Operating Temperature	0 Â°C
Max Operating Temperature	50 Â°C
Humidity Range Operating	95% (non-condensing)
