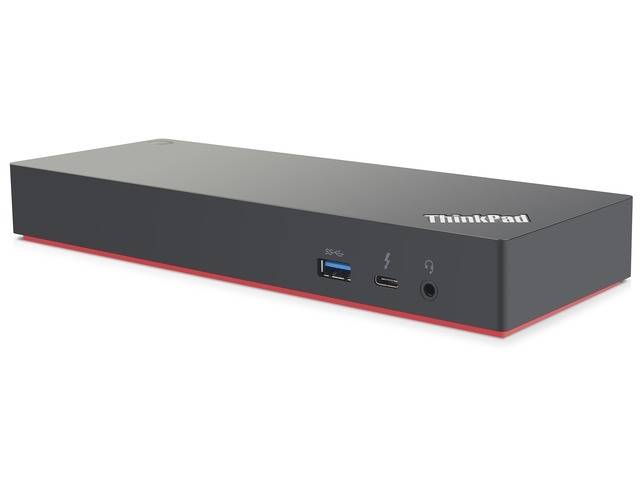

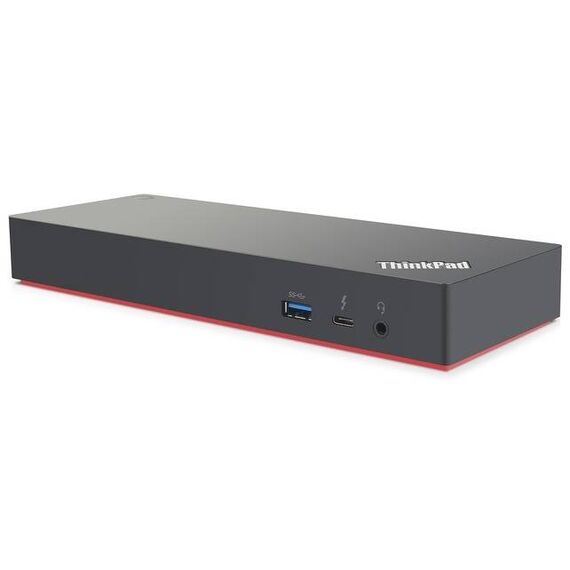

Lenovo ThinkPad Thunderbolt 3 Workstation Dock / Port replicator / Thunderbolt 3 / GigE / 230 Watt / EU / for ThinkPad P1 / P1 (2nd Gen) / P51 / P52 / P53 / P72 / X1 Extreme / X1 Extreme (2nd Gen) | 40AN0230EU
Description
Powerful, versatile and incredibly fast! This Intel Thunderbolt Chipset powered workstation dock was invented to optimize your ThinkPad Mobile Workstation experience. Expand your horizons with multiple 4K displays, handle heavy graphics and video editing, and transfer files at record speed. It's everything you need to enhance your creativity and efficiency today.
Lenovo ThinkPad Thunderbolt 3 Workstation Dock / Port replicator | 40AN0230EU
Special Features
- Lightning-fast productivity
- Plug-and-play simplicity
- Enterprise IT-friendly
Product features
- Lightning-fast productivity
Where speed matters, the Intel Thunderbolt 3 Titan Ridge Chipset delivers. Fly through large data transfers at 40 Gbps, and run up to three 4K UHD displays without a hitch. - Plug-and-play simplicity
Eliminate wasted time with customized one cable, plug, and play. Delivering high-speed data transfer, UHD display, and 230W power maximum to a ThinkPad Mobile Workstation. - Enterprise IT-friendly
Supports network manageability such as PXE boot, system Wake-on-LAN from a variety of modes, and MAC addresses pass-through with ThinkPad notebooks.
Product Specification
| Product Type | Port replicator |
| Width | 22 cm |
| Depth | 8 cm |
| Height | 3 cm |
| Weight | 525 g |
| Enclosure Colour | Black |
| Localisation | Europe |
| Data Link Protocol | Gigabit Ethernet |

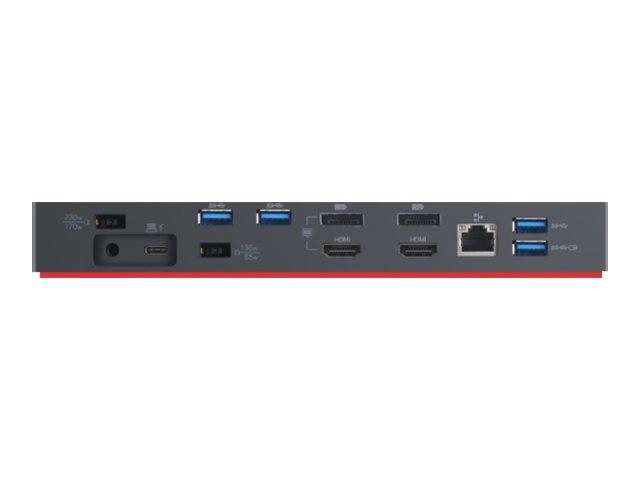

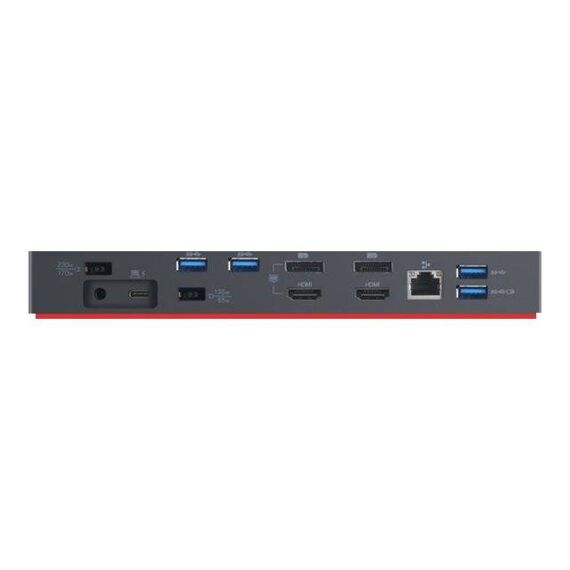

| Interfaces | 2 x audio / video - DisplayPort ¦ 2 x audio / video - HDMI ¦ 1 x USB-C / Thunderbolt 3 ¦ 4 x USB 3.1 Gen 2 ¦ 1 x USB 3.1 Gen 2 with Always-on charging ¦ 1 x audio - headphones/microphone ¦ 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45 |
| Cables Included | 1 x Thunderbolt cable - 70 cm |
| Features | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| Compliant Standards | TUV, VCCI, BSMI, NOM, SABS, CB, FCC, RoHS, SII, KCC, ICES, cULus, Kvalitet, EAC, RCM, CoC |
| Power Device | Power adapter |
| Power Provided | 230 Watt |
| Service & Support | Limited warranty - replacement - 3 years |
| Min Operating Temperature | -5 °C |
| Max Operating Temperature | 35 °C |
| Designed For | Lenovo ThinkPad P1 20MD, 20ME ¦ Lenovo ThinkPad P1 (2nd Gen) 20QU ¦ Lenovo ThinkPad P51 20MM ¦ Lenovo ThinkPad P52 20M9, 20MA ¦ Lenovo ThinkPad P53 20QN, 20QQ ¦ Lenovo ThinkPad P72 20MC ¦ Lenovo ThinkPad X1 Extreme 20MF, 20MG ¦ Lenovo ThinkPad X1 Extreme (2nd Gen) 20QV |
Features - Lenovo - 40AN0230EU
More Details
Product Code
S60BSV8
EAN Code
0192158239620
Manufacturer
Lenovo
