Lenovo ThinkPad Universal USB-C Smart Dock / Docking station / USB-C / HDMI, 2 x DP / GigE / 135 Watt / Europe / for ThinkPad E14 Gen 3; T14s Gen 2; X1 Carbon Gen 9; X1 Yoga Gen 6 | 40B20135EU
Please sign in so that we can notify you about a reply
Product Features
- Universal dock compatibility
Boost the value of your investment with the broad compatibility of the ThinkPad Universal USB-C Smart Dock. Supporting both Thunderbolt 3 and 4, USB 4 and USB-C, and extended compatibility with a wide range of brands and Multi-OS notebooks, you'll be ready to overcome any obstacle. - Streamlined management
Break free from the old docking paradigm and streamline your management workflow with a range of time-saving innovations. With the ThinkPad Universal USB-C Smart Dock ready, you can remotely update its firmware without a PC connected, remotely manage ports, conduct data analytics, utilize diagnostic tools, and keep your system safe with Microsoft Azure Sphere security.
Product Specification
| Product Type | Docking station |
| Width | 17.1 cm |
| Depth | 8 cm |
| Height | 3.075 cm |
| Weight | 388 g |
| Enclosure Colour | Black |
| Localisation | Europe |
| Video | Video |
| Max Resolution Details | 3840 x 2160 - 60 Hz (Dual Display) ¦ 3840 x 2160 - 30 Hz (Triple Display) |
| Networking | Networking |
| Data Link Protocol | Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |

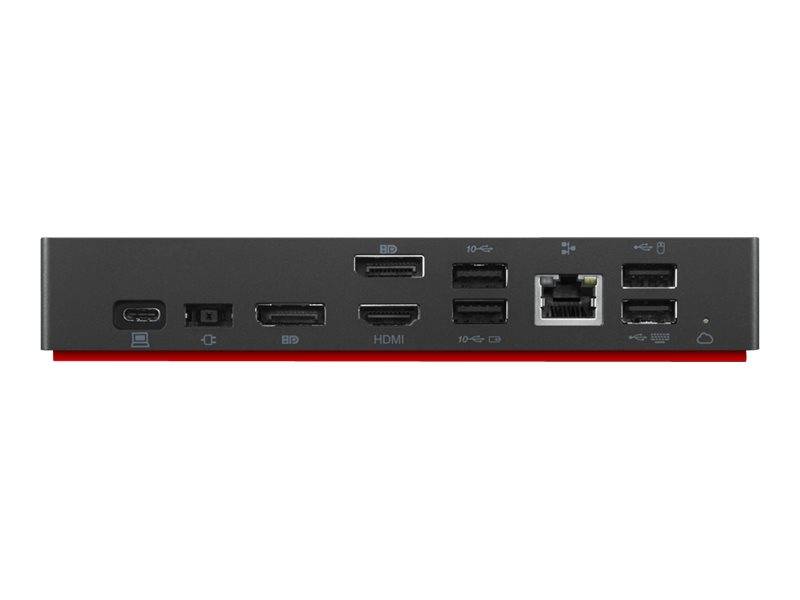

| Interfaces | 3 x USB 3.1 - 9 pin USB Type A ¦ 2 x USB 2.0 - 4 pin USB Type A ¦ 1 x USB-C - 24 pin USB-C ¦ 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 2 x audio / video - DisplayPort - 20 pin DisplayPort ¦ 1 x audio / video - HDMI - 19 pin HDMI Type A ¦ 1 x audio - headphones/microphone - mini-phone 3.5 mm 4-pole |
| Miscellaneous | Miscellaneous |
| Cables Included | 1 x USB-C to USB-C cable - external |
| Features | Security lock slot (cable lock sold separately), wake on LAN, Preboot Execution Environment (PXE) support, pass through MAC address, 100W output power with 135W power adapter connected |
| Security Slot Type | Kensington security slot |
| Compliant Standards | VCCI, BSMI, CB, FCC, KCC, ICES, cULus, RCM, LoA, TUV Mark |
| Power | Power |
| Power Device | Power adapter |
| Power Provided | 135 Watt |
| System Requirements | System Requirements |
| OS Required | Microsoft Windows 7 / 10, Windows 11 |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - replacement - 3 years |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 21 cm |
| Shipping Depth | 15.8 cm |
| Shipping Height | 7.5 cm |
| Shipping Weight | 1.245 kg |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 35 °C |
| Compatibility Information | Compatibility Information |
| Designed For | Lenovo ThinkPad E14 Gen 3 20YE ¦ Lenovo ThinkPad T14s Gen 2 20WM ¦ Lenovo ThinkPad X1 Carbon Gen 9 20XW, 20XX ¦ Lenovo ThinkPad X1 Yoga Gen 6 20XY, 20Y0 |
Features - Lenovo - 40B20135EU
More Details
Product Code
07:126627
EAN Code
0195477286993
Manufacturer
Lenovo
