Lenovo ThinkSystem 5200 Mainstream / Solid state drive / encrypted / 960 GB / hot-swap / 2.5" / SATA 6Gb/s / 256-bit AES / for ThinkAgile HX3321 Certified Node / ThinkSystem SR530 / SR550 / SR570 / SR590 / SR860 / SR950 | 4XB7A10239
Description
The ThinkSystem 5200 Mainstream solid-state drives (SSDs) use Micron NAND flash memory technology with a SATA 6 Gbps interface to provide an affordable solution for mixed read/write workloads.

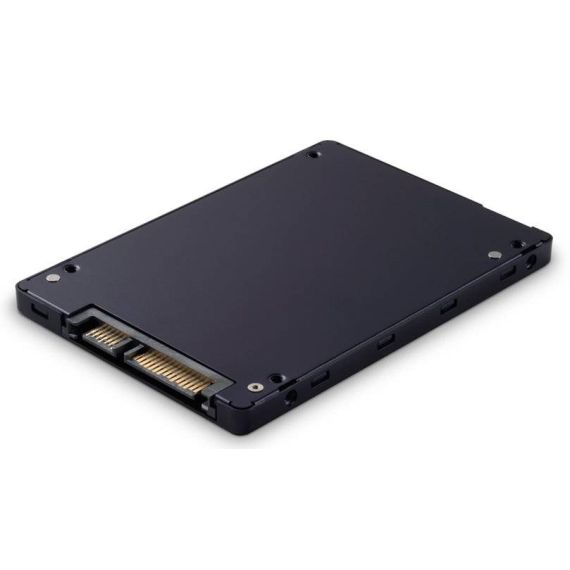

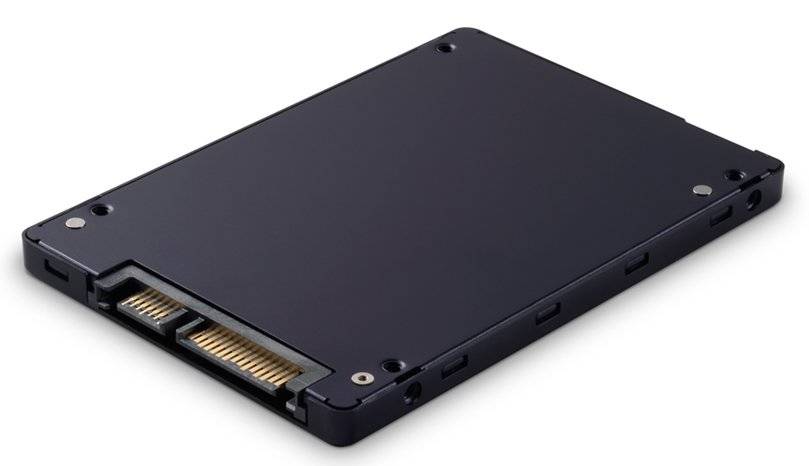

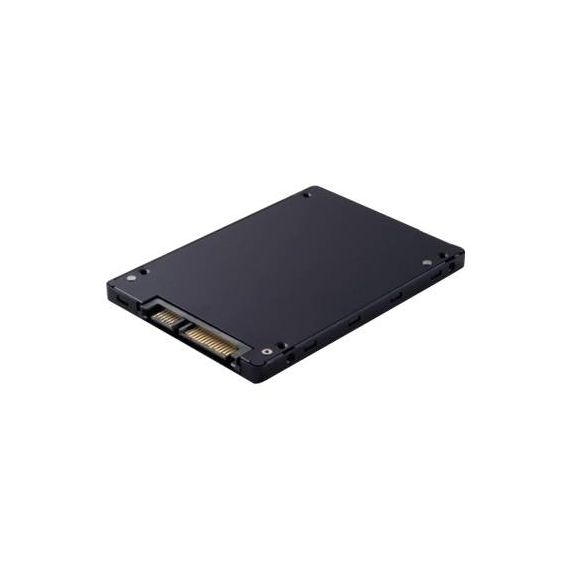

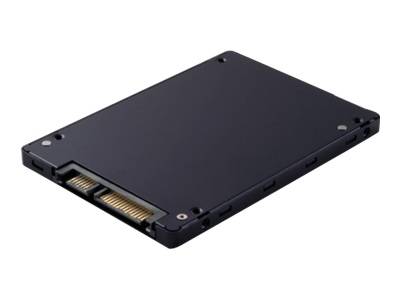

Lenovo ThinkSystem 5200 Mainstream / Solid state drive | 4XB7A10239
Special Features
- Innovative 64-layer triple-level cell (TLC) 3D NAND technology
- Suitable for mixed read/write workloads
- 6 Gbps SATA host interface
- High reliability and enhanced ruggedness
- Absence of moving parts to reduce potential failure points in the server
- S.M.A.R.T. support
- Advanced Encrypting Standard (AES) 256-bit encryption
Product Specification
| Device Type | Solid state drive - hot-swap |
| Capacity | 960 GB |
| Hardware Encryption | Yes |
| Encryption Algorithm | 256-bit AES |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Form Factor | 2.5" |
| Interface | SATA 6Gb/s |
| Features | 3D V-NAND Technology, S.M.A.R.T. |
| Width | 70 mm |
| Depth | 100 mm |
| Height | 7 mm |
| Weight | 70 g |
| Drive Writes Per Day (DWPD) | 5 |
| SSD Endurance | 8760 TB |
| Drive Transfer Rate | 600 MBps (external) |
| Internal Data Rate | 540 MBps (read) / 520 MBps (write) |
| 4KB Random Read | 95000 IOPS |
| 4KB Random Write | 75000 IOPS |
| Average Latency | 200 µs |
| MTBF | 3,000,000 hours |
| Non-Recoverable Errors | 1 per 10^17 |
| Interfaces | 1 x SATA 6 Gb/s |
| Compatible Bay | 2.5" |
| Power Consumption | 2.8 Watt (read) ¦ 3.4 Watt (write) |
| Compliant Standards | RoHS, UL 60950-1 Second Edition, BSMI CNS 13438, WEEE 2002/96/EC, IEC60950/EN60950, FCC CFR47 Part 15 B Class B, EN 55032 Class B, KCC KN32 Class B, CISPR 32 Class B, AS/NZS CISPR32 Class B, KCC KN35 Class B, Micron Green Standard, VCCI 2015.04 Class B, ICES-003:2016 |
| Shipping Width | 13.3 cm |
| Shipping Depth | 17.4 cm |
| Shipping Height | 6.3 cm |
| Shipping Weight | 434 g |
| Service & Support | Limited warranty - 1 year |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 70 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Shock Tolerance (non-operating) | 1500 g @ 0.5 ms |
| Vibration Tolerance (non-operating) | 3.13 g @ 5-800 Hz |
| Designed For | Lenovo ThinkAgile HX3321 Certified Node 7Y89 (2.5") ¦ Lenovo ThinkSystem SN550 (2.5") ¦ Lenovo ThinkSystem SN850 (2.5") ¦ Lenovo ThinkSystem SR530 (2.5") ¦ Lenovo ThinkSystem SR550 (2.5") ¦ Lenovo ThinkSystem SR570 (2.5") ¦ Lenovo ThinkSystem SR590 (2.5") ¦ Lenovo ThinkSystem SR630 (2.5") ¦ Lenovo ThinkSystem SR650 (2.5") ¦ Lenovo ThinkSystem SR850 (2.5") ¦ Lenovo ThinkSystem SR860 (2.5") ¦ Lenovo ThinkSystem SR950 (2.5") ¦ Lenovo ThinkSystem ST550 (2.5") |
Features - Lenovo - 4XB7A10239
More Details
Product Code
S60C9E9
EAN Code
0889488475131
Manufacturer
Lenovo
