LevelOne DSK-8001 / DVR + camera(s) / wired (LAN) / 8 channels / 4 camera(s) / CMOS | DSK-8001
Please sign in so that we can notify you about a reply
Special Features
- Megapixel (1280 x 720) high-definition resolution
- Compatible with HDTVI, AHD, HDCVI and CVBS analog cameras
- Built-in infrared LEDs for night viewing up to 20 m
- Weatherproof IP66-rated housing
- H.264 compression for efficient data transfer and storage
- Built-in USB port for backup, firmware upgrade and mouse
- Supports VGA, HDMI output
- Supports iPhone/Android phone remote viewing over the Internet
Product Specification
| System | DVR + camera(s) - wired |
| Network Interface | LAN |
| Features | Audio support |

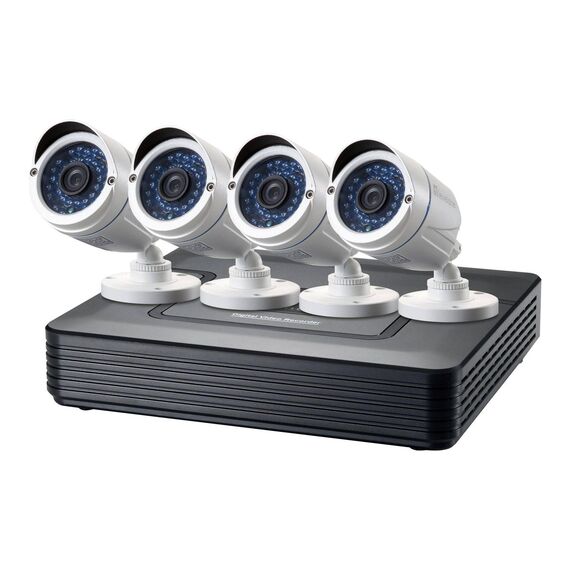

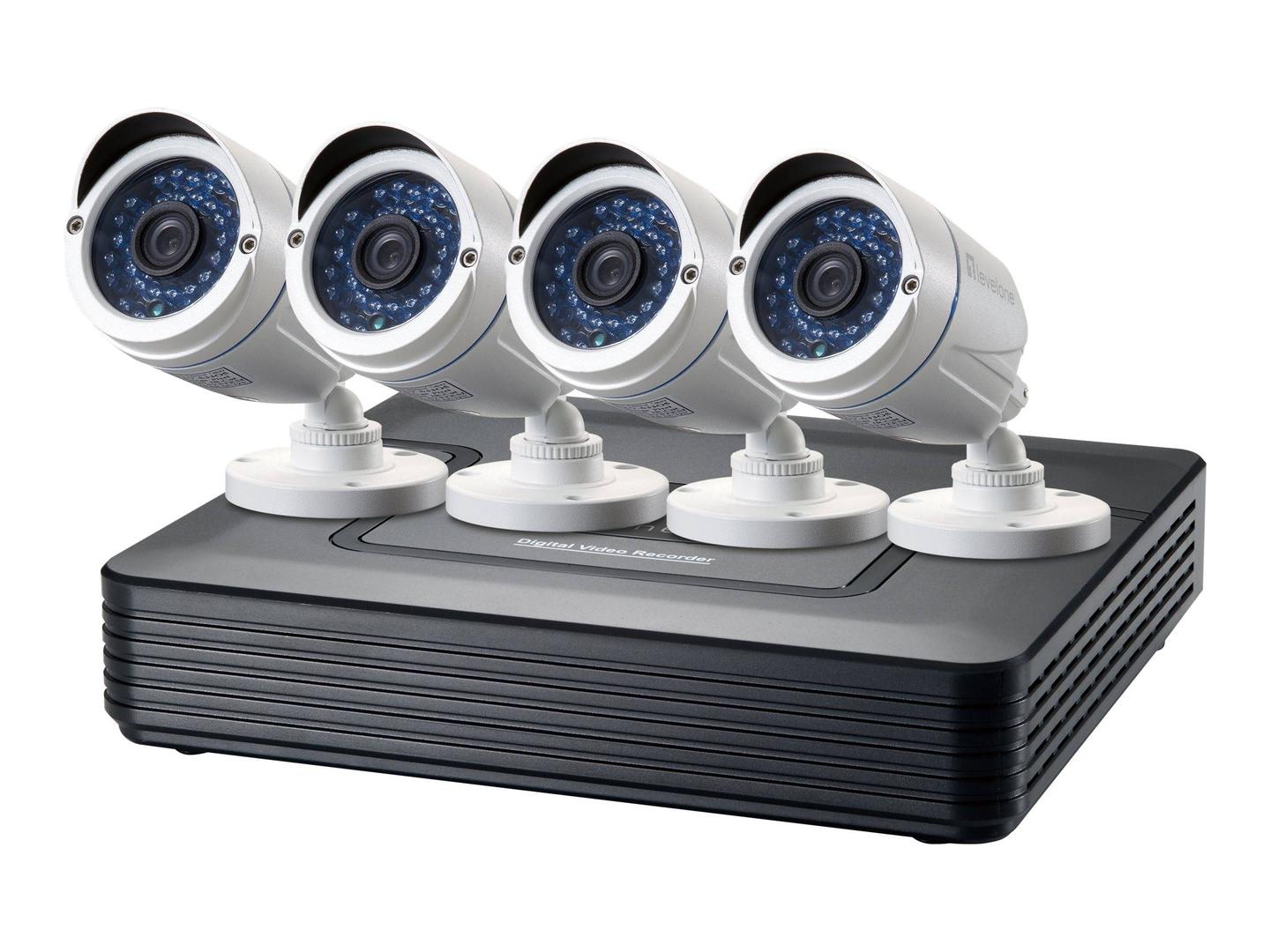

| Package Content | 4 cameras, DVR, mouse, power adapter, power splitter |
| Security DVR | Security DVR |
| Video Channels | 8 |
| Image Resolution | 1280x720, 1920x1080, 1024x768, 1280x1024 |
| Compression Format | MPEG-4, H.264, G.711A |
| Features | 960H Technology, Analog High Definition (AHD), High Definition Composite Video Interface (HDCVI), High Definition Transport Video Interface (HDTVI) |
| Hard Drive | Hard Drive |
| Quantity Supported | 1 |
| Supported Max Total Capacity | 6 TB |
| Cameras | Cameras |
| Quantity | 4 cameras |
| Sensor | CMOS - 1/4" - 1280x720 |
| Field of View | 65° |
| Night Vision | Yes |
| Infrared LEDs | Yes |
| Infrared Distance | 30 m |
| Electronic Shutter Speed | 1/50 - 1/100,000 |
| Focal Length | 3.6 mm |
| Lens Mount | M12 mount |
| Voltage | DC 12 V |
| Compliant Standards | IP66 |
| Connections | Connections |

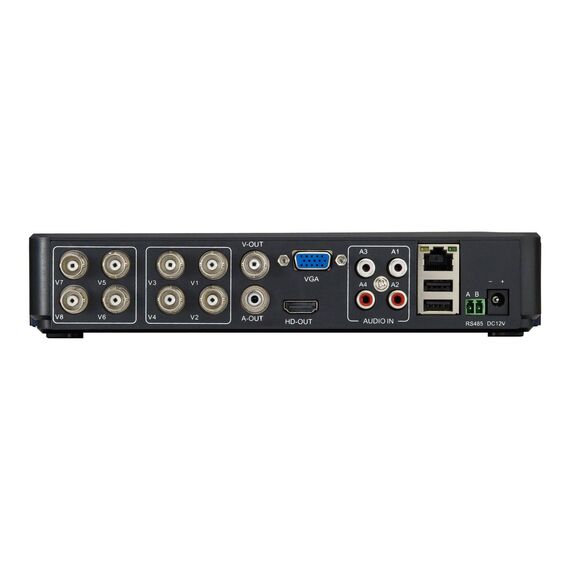

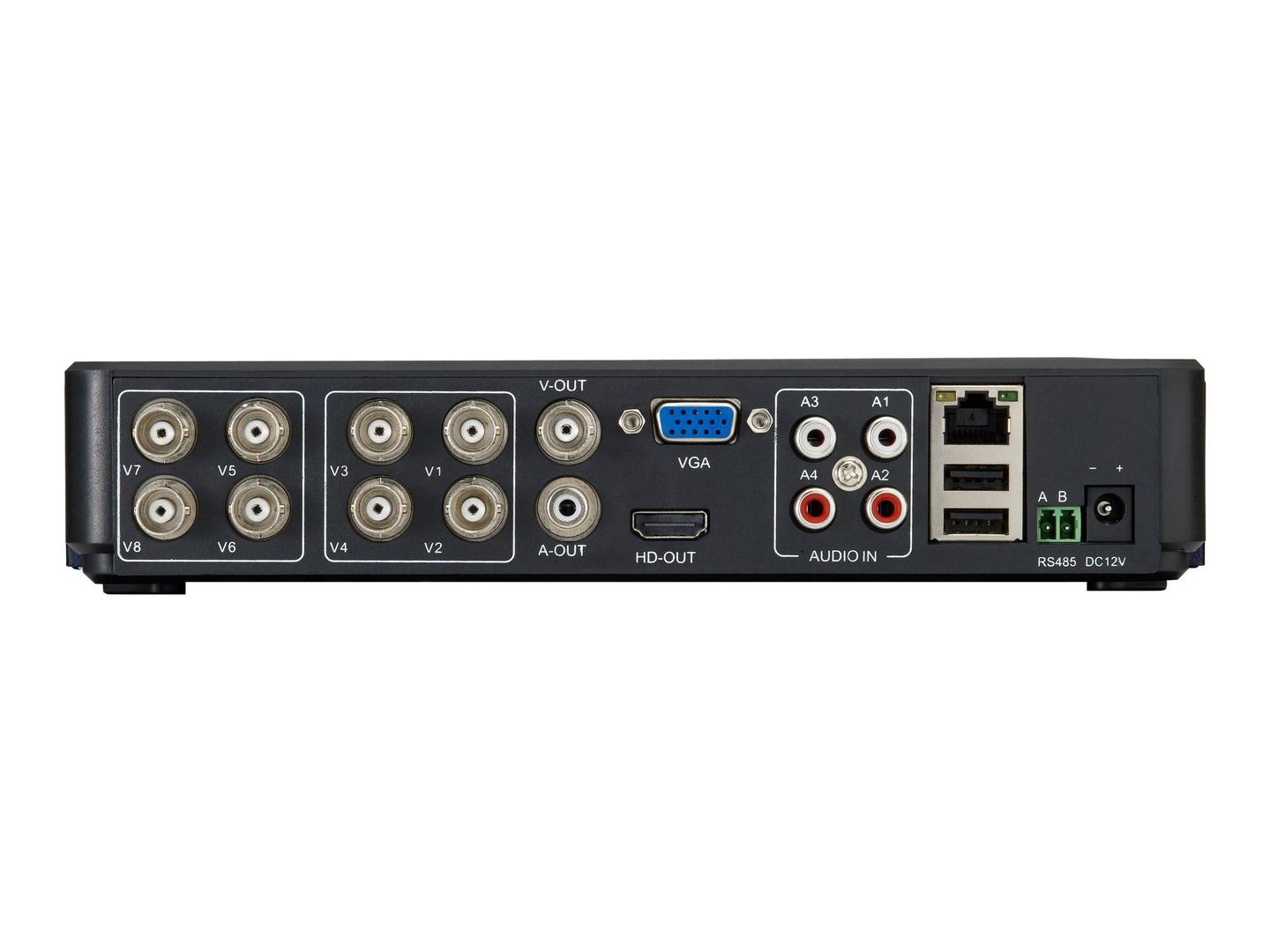

| Video Input Ports | BNC x 8 |
| Video Output Ports | HDMI x 1, VGA x 1 |
| Audio Input Ports | RCA x 2 |
| Audio Output Ports | RCA x 2 |
| Network Port | 10/100Base-T |
| Other Ports | USB 2.0 x 2 |
| Dimensions & Weight | Dimensions & Weight |
| Details | DVR: 22 cm x 22.2 cm x 4.5 cm ¦ Camera: 6.4 cm x 16.5 cm x 6.4 cm |
Features - LevelOne - DSK-8001
More Details
Product Code
04:407763
EAN Code
4015867226292
Manufacturer
LevelOne
