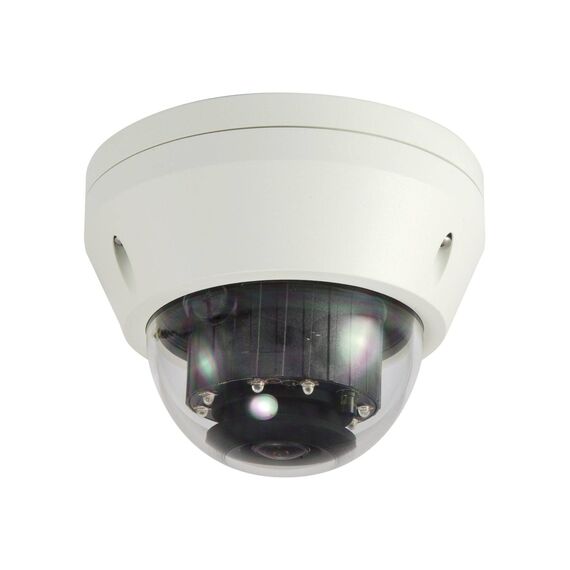

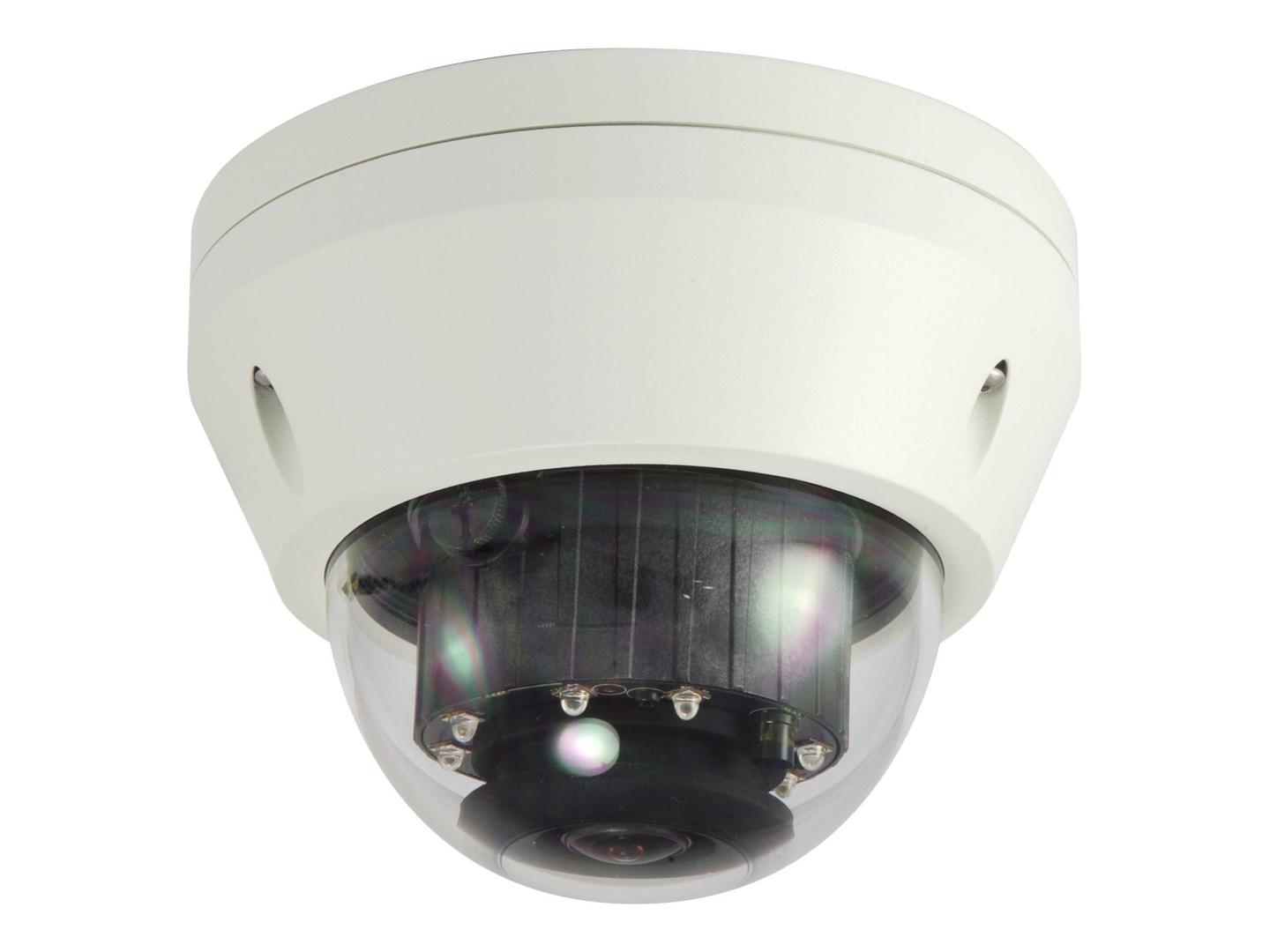

LevelOne FCS-3306 / Network surveillance camera / dome / outdoor / vandal / weatherproof / colour (Day&Night) / 3 MP / 2048 x 1536 / LAN 10/100 / MJPEG, H.264, RAW, H.265 / DC 12 V / PoE | FCS-3306
Please sign in so that we can notify you about a reply
Special Features
- 3MP high-definition resolution
- Video compression - H.264/H.265
- Built-in infrared LEDs for night viewing
- Features WDR (Wide Dynamic Range) to enhance visibility under extremely bright or dark environments
- Vandal-proof IK10-rated housing
Product Specification
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Connectivity Technology | Wired |
| Width | 10.9 cm |
| Depth | 10.9 cm |
| Height | 6.35 cm |
| Weight | 600 g |
| Camera | Camera |
| Type | Colour - Day&Night - fixed - outdoor - vandal / weatherproof |
| Digital Video Format | MJPEG, H.264, RAW, H.265 |
| Max Digital Video Resolution | 2048 x 1536 |
| Motion Detection | Yes |
| Exposure Range | 1/1 sec - 1/100000 sec |
| Infrared LEDs | Yes |
| Infrared Distance | 30 m |
| Video Capture | 2048 x 1536 @ 30 fps ¦ 1920 x 1080 @ 60 fps ¦ 1280 x 960 @ 30 fps ¦ 1280 x 720 @ 60 fps ¦ 800 x 600 @ 30 fps ¦ 640 x 480 @ 30 fps ¦ 320 x 240 @ 30 fps |
| Features | Power over Ethernet, Object Detection, ONVIF support, Motion Detection Technology, infrared cut filter, smoke detector, NVR-Ready, tamper-detection, notification picture to E-mail, notification picture to FTP, LED indicator, reset button, password protection, shock detection, Line Crossing Detection, IP address filtering, anonymous access, HTTPs encryption |
| Image Sensor | Image Sensor |
| Type | 3 MP CMOS 1/2.8" |
| Lens Construction | Lens Construction |
| Focal Length | 2.1 mm |
| Lens Iris | F/1.8 |
| Interfaces | Interfaces |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP, RTSP, RTP, HTTPS, UPnP, IPv4, IPv6, Bonjour, RTCP, PPPoE, IGMP, QOS |
| Expansion / Connectivity | Expansion / Connectivity |
| Ports | LAN/power - RJ-45 |
| Supported Memory Cards | microSDXC Card |
| Miscellaneous | Miscellaneous |
| Included Accessories | Screw kit |
| Compliant Standards | FCC, IK10, IP68, IEEE 802.3af |
| Colour | White |
| Power | Power |
| Power Requirements | DC 12 V / PoE |
| Power Device | 12.95 Watt |
| Software / System Requirements | Software / System Requirements |
| Software Included | Drivers & Utilities |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 60 °C |
| Relative Humidity (operating) | 80% (non-condensing) |
Features - LevelOne - FCS-3306
More Details
Product Code
04:248641
EAN Code
4015867202739
Manufacturer
LevelOne
