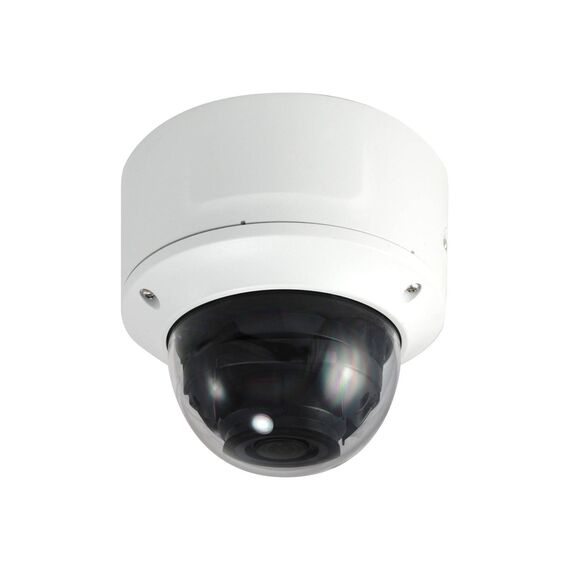

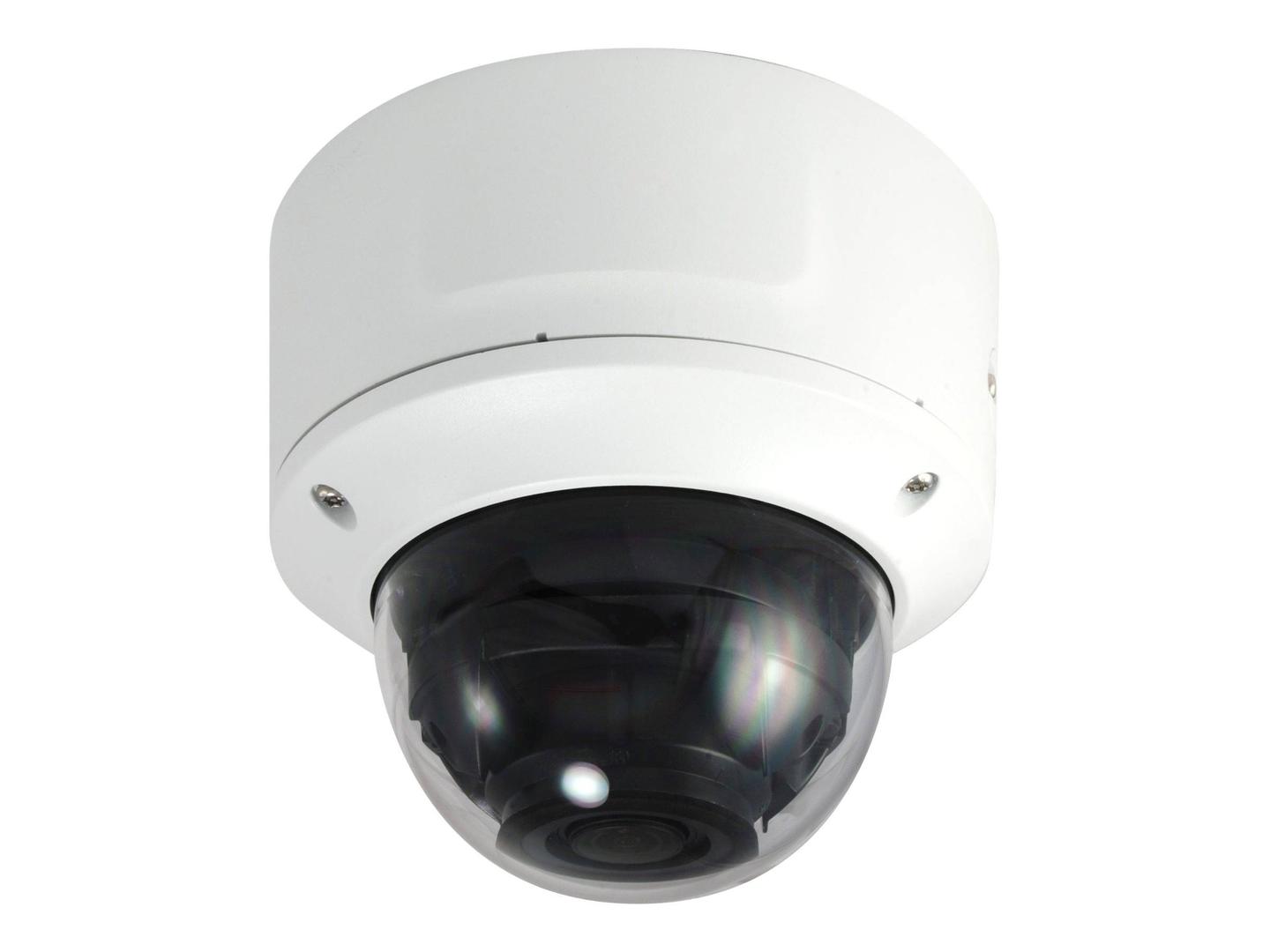

LevelOne FCS-4203 / Network surveillance camera / dome / outdoor, indoor / vandal / weatherproof / colour / 2 MP / 1920 x 1080 / motorized / audio / LAN 10/100 / AVI, MJPEG, H.264, H.265 / DC 12 V / PoE | FCS-4203
Please sign in so that we can notify you about a reply
Special Features
- 2MP (1920 x 1080) Full HD resolution
- H.264/H.265/MJPEG video compression
- Supports 4.3x optical zoom
- Built-in infrared LEDs for night viewing
- Vandal-proof IK10-rated housing
- PoE (IEEE 802.3af) power support
- Built-in microSD/SDHC card slot for local storage
Product Specification
| Device Type | Network surveillance camera |
| Audio Support | Yes: two-way audio capability |
| Form Factor | Dome |
| Connectivity Technology | Wired |
| Width | 15.34 cm |
| Depth | 15.34 cm |
| Height | 13.31 cm |
| Weight | 1.287 kg |
| Camera | Camera |
| Type | Colour - fixed - outdoor, indoor - vandal / weatherproof |
| Digital Video Format | AVI, MJPEG, H.264, H.265 |
| Max Digital Video Resolution | 1920 x 1080 |
| Exposure Range | 1/3 sec - 1/100000 sec |
| Minimum Illumination | 0.005 lux - colour - F1.2 - AGC on ¦ 0.0068 lux - B&W - F1.4 - AGC on ¦ 0 lux - IR |
| Infrared LEDs | Yes |
| Infrared Distance | 30 m |
| Video Capture | 1280 x 960 @ 60 fps ¦ 1920 x 1080 @ 60 fps ¦ 1280 x 720 @ 60 fps |
| Features | Sharpness control, white balance, saturation control, brightness control, Power over Ethernet, contrast control, image mirror, Wide Dynamic Range (WDR), ONVIF support, Privacy Mask Function, reset button, password protection, triple video stream, exposure control, infrared-cut filter, watermark, heartbeat, anti-flicker, Internet Server Application Programming Interface (ISAPI), IP address filtering, anonymous access, 3D digital noise reduction (DNR), bit rate control |
| Image Sensor | Image Sensor |
| Type | 2 MP CMOS 1/2.8" |
| Lens Construction | Lens Construction |
| Type | Motorized zoom |
| Optical Zoom | 4.3 x |
| Focal Length | 2.8 mm - 12 mm |
| Lens Iris | F/1.4 |
| Horizontal Field of View (degree) | 35 - 105 |
| Interfaces | Interfaces |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ICMP, SNMP, RTSP, RTP, HTTPS, UPnP, IPv6, Bonjour, RTCP, PPPoE, IGMP, QOS, PSIA, CGI |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
| Expansion / Connectivity | Expansion / Connectivity |
| Ports | LAN/power - RJ-45 ¦ Audio line in ¦ Audio line out |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous | Miscellaneous |
| Included Accessories | Screw kit |
| Compliant Standards | ISO 9001, FCC, RoHS, IP67, IK10, IEEE 802.3af |
| Colour | White |
| Power | Power |
| Power Requirements | DC 12 V / PoE |
| Power Device | 9.5 Watt |
| Software / System Requirements | Software / System Requirements |
| Software Included | Drivers & Utilities |
| OS Required | Microsoft Windows XP / Vista / 7 / 8 / 10 |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -30 °C |
| Max Operating Temperature | 60 °C |
| Relative Humidity (operating) | 0 - 95% (non-condensing) |
Features - LevelOne - FCS-4203
More Details
Product Code
04:248638
EAN Code
4015867203415
Manufacturer
LevelOne
