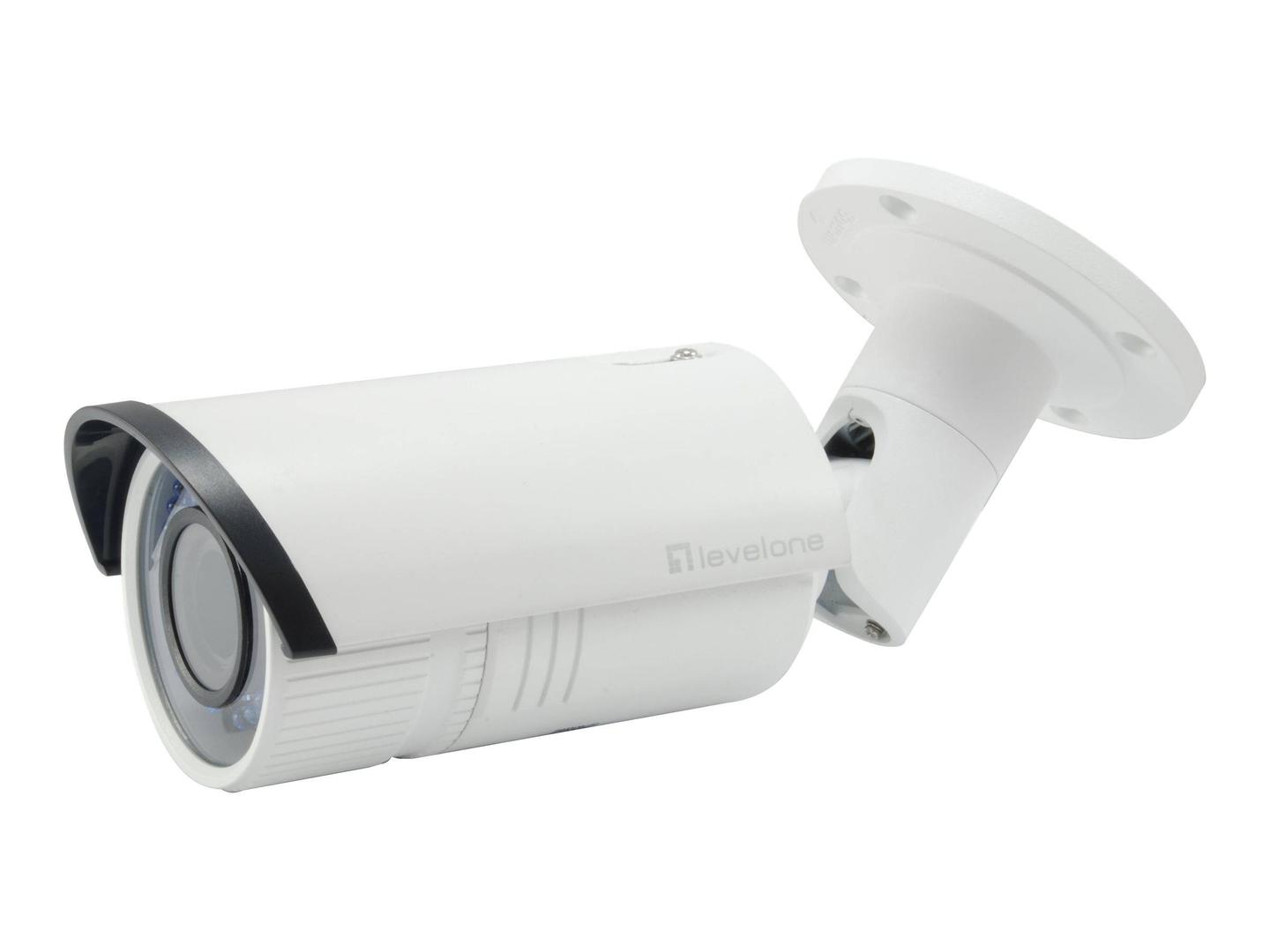

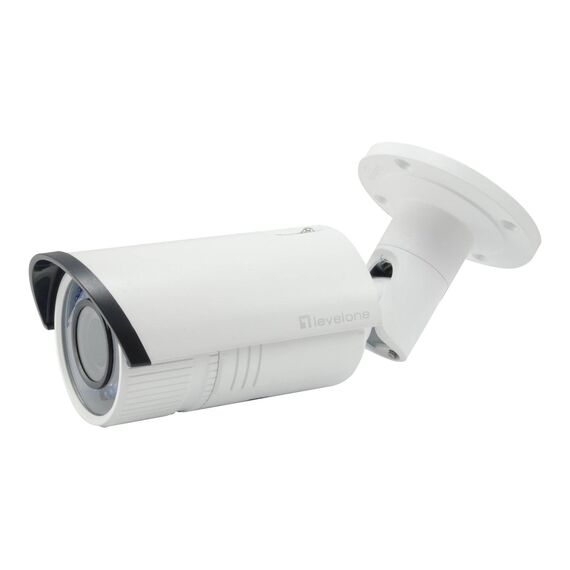

LevelOne FCS-5060 / Network surveillance camera / outdoor / weatherproof / colour (Day&Night) / 2 MP / 1920 x 1080 / f14 mount / auto iris / motorized / audio / LAN 10/100 / MJPEG, H.264 / DC 12 V / PoE | FCS-5060
Please sign in so that we can notify you about a reply
Special Features
- Weatherproof IP66-rated housing
- 2MP (1920 x 1080) high-definition resolution
- H.264/MJPEG video compression
- Features WDR to enhance visibility under extremely bright or dark environments
- Built-in infrared LEDs for night viewing
- Digital input/output for sensor and alarm
- Varifocal length for wide-angle surveillance
Product Specification
| Device Type | Network surveillance camera |
| Audio Support | Yes: two-way audio capability |
| Connectivity Technology | Wired |
| Width | 25.86 cm |
| Depth | 9.5 cm |
| Height | 10.5 cm |
| Weight | 1.2 kg |
| Camera | Camera |
| Type | Colour - Day&Night - fixed - outdoor - weatherproof |
| Digital Video Format | MJPEG, H.264 |
| Max Digital Video Resolution | 1920 x 1080 |
| Motion Detection | Yes |
| Exposure Range | 1/3 sec - 1/10000 sec |
| Minimum Illumination | 0.014 lux - colour - F1.4 ¦ 0 lux - IR |
| Infrared Distance | 30 m |
| Video Capture | 1920 x 1080 @ 30 fps ¦ 1280 x 960 @ 30 fps ¦ 1280 x 720 @ 30 fps ¦ 1920 x 1080 @ 25 fps ¦ 1280 x 960 @ 25 fps ¦ 1280 x 720 @ 25 fps |
| Features | Sharpness control, brightness control, contrast control, ONVIF support, Motion Detection Technology, PSIA, NAS-Ready, tamper-detection, reset button, microSD/SDHC/SDXC Memory Card slot, Region of Interest (ROI), intrusion detection, 3D Digital Noise Reduction Technology, Black light compensation (BLC), Line Crossing Detection, Internet Server Application Programming Interface (ISAPI) |
| Image Sensor | Image Sensor |
| Type | 2 MP CMOS 1/2.8" |
| Lens Construction | Lens Construction |
| Type | F14 mount - motorized zoom |
| Optical Zoom | 4.3 x |
| Focal Length | 2.8 mm - 12 mm |
| Lens Iris | F/1.4, f/1.2 auto iris |
| Interfaces | Interfaces |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DHCP, HTTP, TCP/IP, UDP/IP, ICMP, SNMP, RTSP, RTP, HTTPS, UPnP, IPv4, IPv6, Bonjour, PPPoE, IGMP, QOS |
| Expansion / Connectivity | Expansion / Connectivity |
| Ports | LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous | Miscellaneous |
| Included Accessories | Mounting bracket |
| Compliant Standards | FCC, IP66, IEEE 802.3af |
| Colour | White |
| Power | Power |
| Power Requirements | DC 12 V / PoE |
| Power Device | 7.5 Watt |
| Software / System Requirements | Software / System Requirements |
| OS Required | Microsoft Windows 7 / 8 / 10 |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -30 °C |
| Max Operating Temperature | 60 °C |
| Relative Humidity (operating) | 0 - 95% (non-condensing) |
Features - LevelOne - FCS-5060
More Details
Product Code
04:243384
EAN Code
4015867199107
Manufacturer
LevelOne
