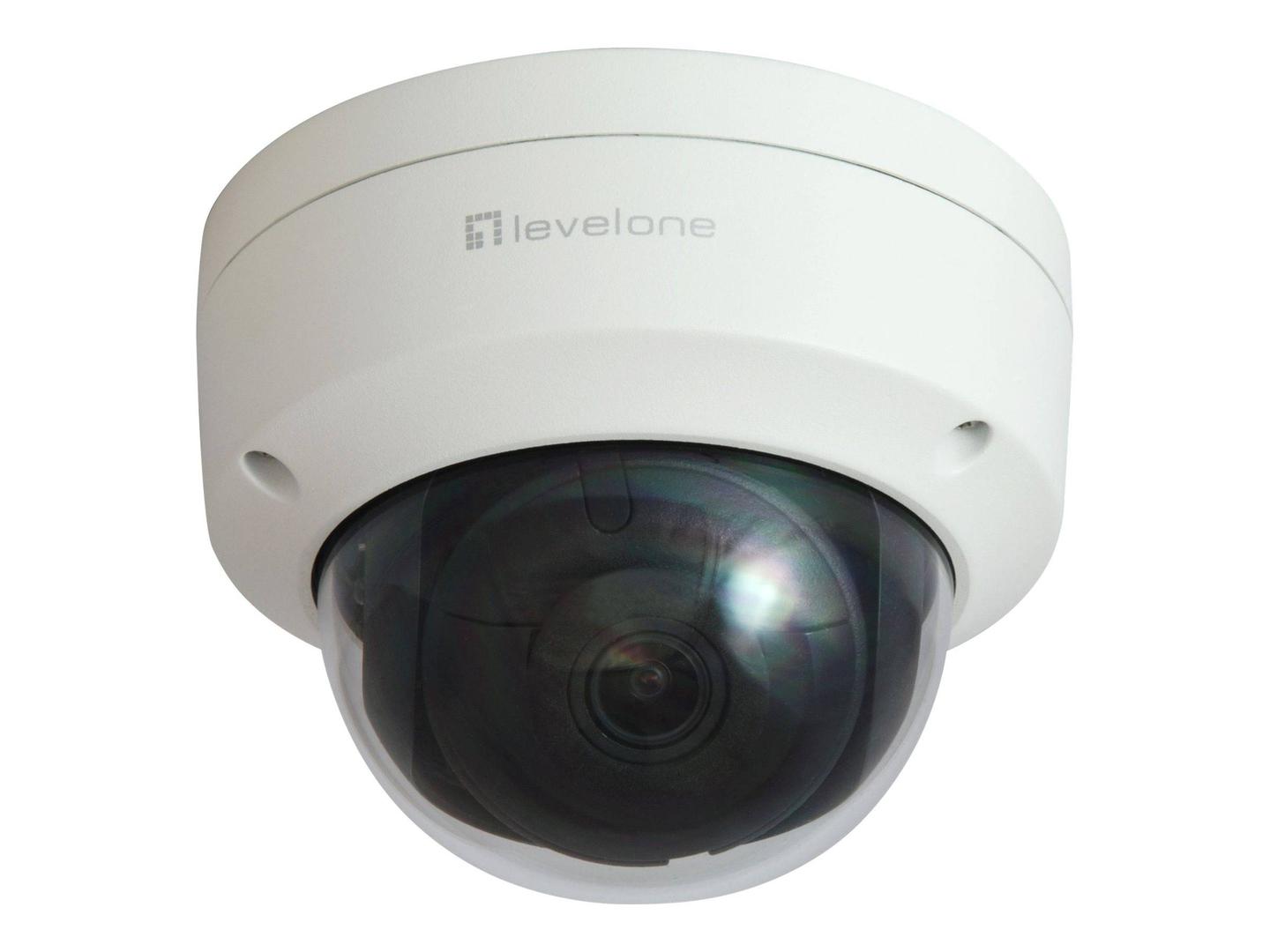

LevelOne GEMINI series FCS-3403 / Network surveillance camera / dome / outdoor / vandal / weatherproof / colour (Day&Night) / 4 MP / 1920 x 1080 / M12 mount / fixed focal / audio / LAN 10/100 / MJPEG, H.264, H.265 / DC 12 V / PoE | FCS-3403
Please sign in so that we can notify you about a reply
Special Features
- Features WDR (Wide Dynamic Range) to enhance visibility under extremely bright or dark environments
- Free CMS (Central Management System) software with 64-channel license
- Built-in Micro SD/SDHC/SDXC card slot for local storage
- Built-in infrared LEDs for night viewing
- 4-megapixel high-definition resolution
- Video compression: H.264, H.265, MJPEG
- Weatherproof IP66-rated housing
Product Specification
| Device Type | Network surveillance camera |
| Audio Support | Yes: two-way audio capability |
| Audio Formats | PCM, G.726, G.711, G.722.1, MP2L2, G.711u, G711-ALAW |
| Form Factor | Dome |
| Connectivity Technology | Wired |
| Width | 11.1 cm |
| Depth | 11.1 cm |
| Height | 8.2 cm |
| Weight | 500 g |
| Camera | Camera |
| Type | Colour - Day&Night - fixed - outdoor - vandal / weatherproof |
| Digital Video Format | MJPEG, H.264, H.265 |
| Max Digital Video Resolution | 1920 x 1080 |
| Motion Detection | Yes |
| Exposure Range | 1/3 sec - 1/100000 sec |
| Infrared LEDs | Yes |
| Infrared Distance | 30 m |
| Digital Video Capture Resolution | 1280 x 720, 1280 x 960, 1920 x 1080 |
| Frame Rate (max) | 60 frames per second |
| Features | Backlight Compensation (BLC), sharpness control, white balance, progressive scanning, saturation control, brightness control, contrast control, image mirror, infrared cut filter, Privacy Mask Function, active tampering alarm, reset button, password protection, Region of Interest (ROI), auto gain control, 3D Digital Noise Reduction Technology, ONVIF (Profile S) support, ONVIF (Profile G) support, watermark, heartbeat, anti-flicker, Internet Server Application Programming Interface (ISAPI) |
| Image Sensor | Image Sensor |
| Type | 4 MP CMOS 1/2.7" |
| Lens Construction | Lens Construction |
| Type | M12 mount - fixed focal |
| Focal Length | 4 mm |
| Lens Iris | F/2.0 |
| Horizontal Field of View (degree) | 86 |
| Vertical Field of View (degree) | 46 |
| Diagonal Field of View (degree) | 102 |
| Interfaces | Interfaces |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP, RTSP, RTP, HTTPS, UPnP, Bonjour, PPPoE, IGMP, Samba |
| Expansion / Connectivity | Expansion / Connectivity |
| Ports | LAN/power - RJ-45 ¦ Audio line in ¦ Audio line out |
| Supported Memory Cards | microSDHC Card, microSDXC Card |
| Miscellaneous | Miscellaneous |
| Included Accessories | Screw kit |
| Compliant Standards | FCC, RoHS, IP67, IK10 |
| Colour | White |
| Power | Power |
| Power Requirements | DC 12 V / PoE |
| Power Device | 8.5 Watt |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -30 °C |
| Max Operating Temperature | 60 °C |
| Relative Humidity (operating) | 0 - 95% (non-condensing) |
Features - LevelOne - FCS-3403
More Details
Product Code
04:405803
EAN Code
4015867207703
Manufacturer
LevelOne
