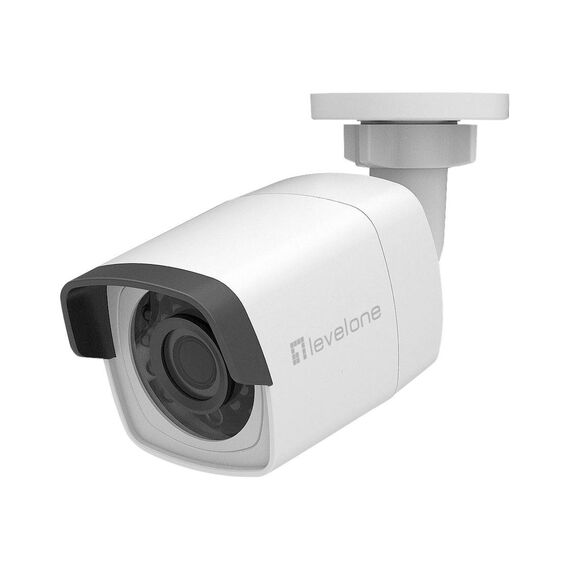

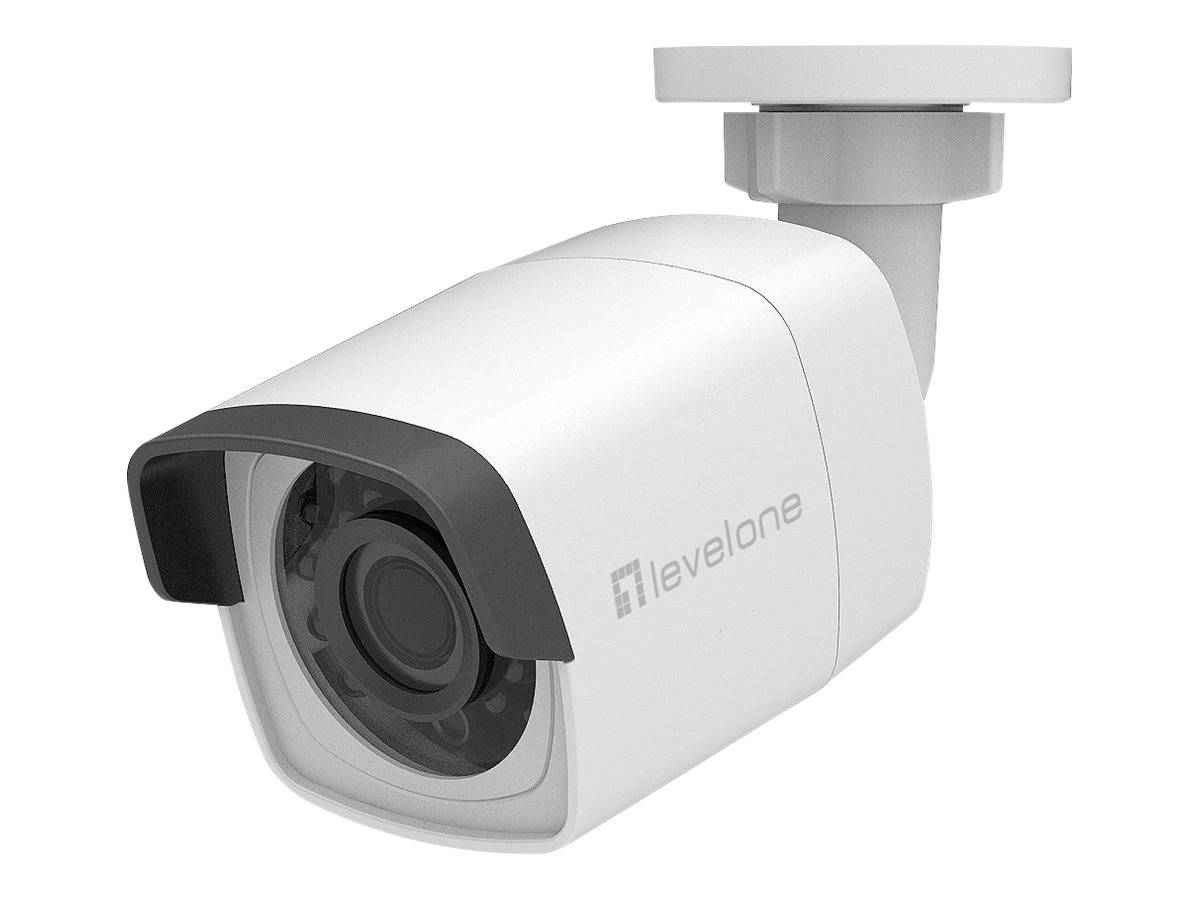

LevelOne GEMINI series FCS-5202 / Network surveillance camera / outdoor, indoor / weatherproof / colour (Day&Night) / 4 MP / 2688 x 1520 / fixed focal / LAN 10/100 / MJPEG, H.264, H.265 / DC 12 V / PoE Class 3 | FCS-5202
Please sign in so that we can notify you about a reply
Special Features
- 4-Megapixel high-definition resolution
- Features WDR (Wide Dynamic Range) to enhance visibility under extremely bright or dark environments
- Built-in infrared LEDs for night viewing up to 30 m
- Weatherproof IP67-rated housing
Product Specification
| Device Type | Network surveillance camera |
| Connectivity Technology | Wired |
| Width | 7 cm |
| Depth | 15.503 cm |
| Height | 7 cm |
| Weight | 420 g |
| Camera | Camera |
| Type | Colour - Day&Night - fixed - outdoor, indoor - weatherproof |
| Digital Video Format | MJPEG, H.264, H.265 |
| Max Digital Video Resolution | 2688 x 1520 |
| Motion Detection | Yes |
| Exposure Range | 1/3 sec - 1/100000 sec |
| Minimum Illumination | 0.01 lux - colour - F1.2 - AGC on ¦ 0.018 lux - colour - F1.6 - AGC on ¦ 0 lux - IR |
| Infrared LEDs | Yes |
| Infrared Distance | 30 m |
| Digital Video Capture Resolution | 1280 x 720, 352 x 240, 640 x 480, 320 x 240, 352 x 288, 1920 x 1080, 640 x 360, 2304 x 1296, 2560 x 1440, 2688 x 1520 |
| Frame Rate (max) | 30 frames per second |
| Features | Date/time stamp, sharpness control, white balance, progressive scanning, saturation control, brightness control, contrast control, image flip, image mirror, Wide Dynamic Range (WDR), ONVIF support, face detection, infrared cut filter, Privacy Mask Function, surge protection, tamper-detection, reset button, password protection, lightning-resistant, triple video stream, Region of Interest (ROI), intrusion detection, auto gain control, Line Crossing Detection, Voltage Transient Protection, watermark, heartbeat, anti-flicker, IP address filtering, 3D digital noise reduction (DNR) |
| Image Sensor | Image Sensor |
| Type | 4 MP CMOS 1/3" |
| Lens Construction | Lens Construction |
| Type | Fixed focal |
| Focal Length | 4 mm |
| Lens Iris | F/1.6 |
| Horizontal Field of View (degree) | 83 |
| Vertical Field of View (degree) | 45 |
| Diagonal Field of View (degree) | 99 |
| Interfaces | Interfaces |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ICMP, SNMP, RTSP, RTP, HTTPS, UPnP, IPv4, IPv6, Bonjour, RTCP, PPPoE, IGMP, QOS |
| Expansion / Connectivity | Expansion / Connectivity |
| Ports | LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous | Miscellaneous |
| Included Accessories | Screw kit |
| Compliant Standards | FCC, IP67, IEEE 802.3af |
| Colour | White |
| Power | Power |
| Power Requirements | DC 12 V / PoE Class 3 |
| Power Device | 6 Watt |
| Software / System Requirements | Software / System Requirements |
| Software Included | Drivers & Utilities |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -30 °C |
| Max Operating Temperature | 69 °C |
| Relative Humidity (operating) | 0 - 95% (non-condensing) |
Features - LevelOne - FCS-5202
More Details
Product Code
04:430864
EAN Code
4015867207758
Manufacturer
LevelOne
