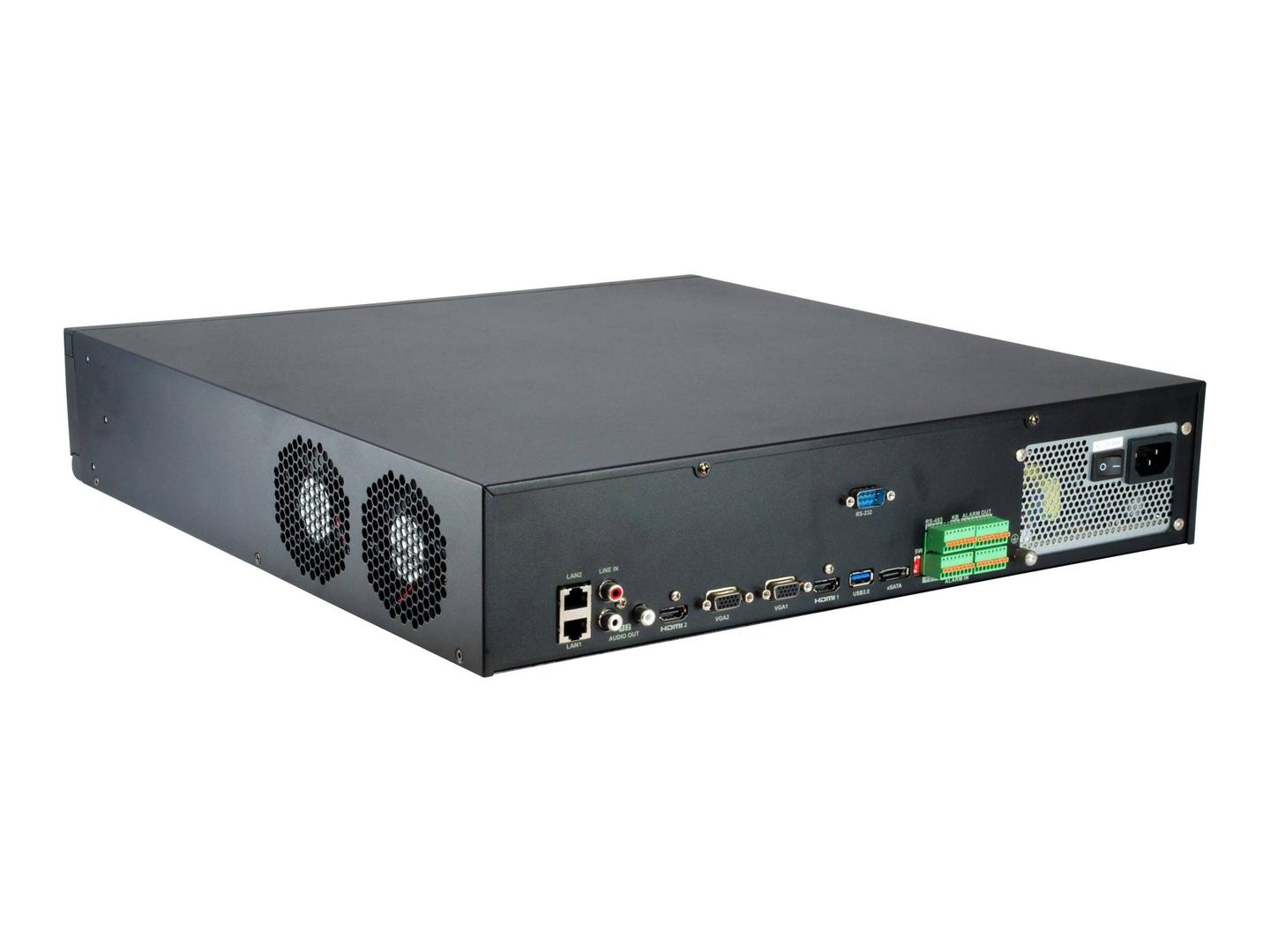

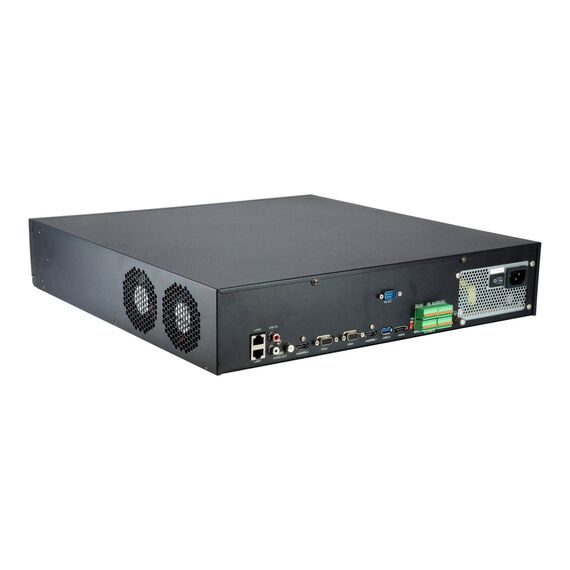

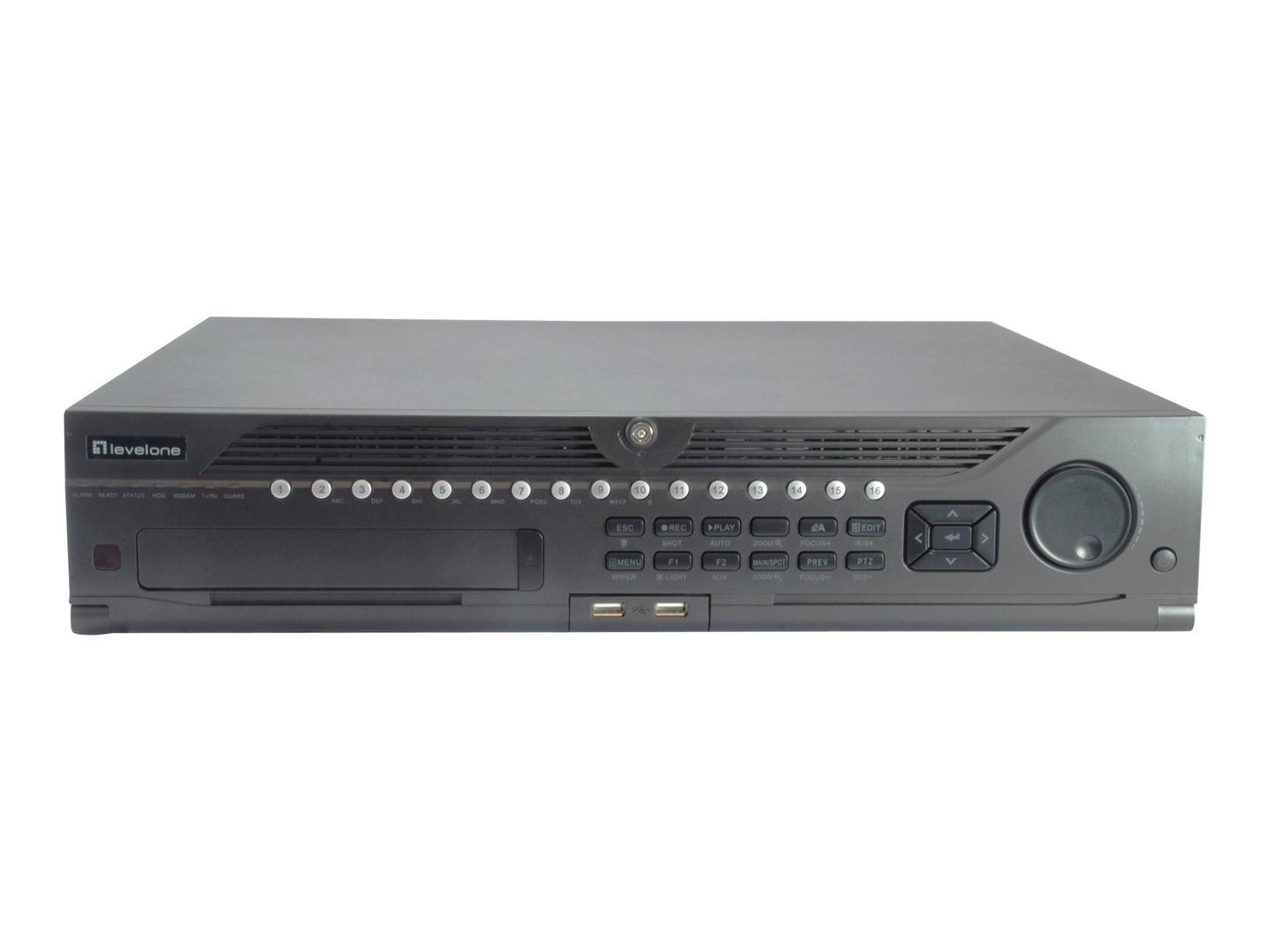

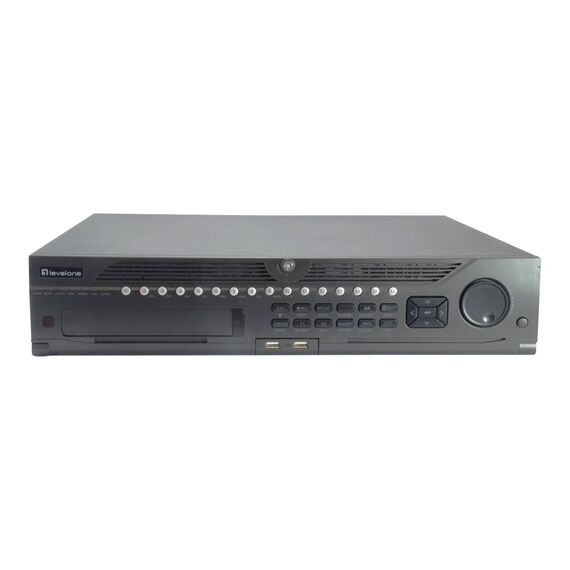

LevelOne GEMINI series NVR-0764 / NVR / 64 channels / networked / rack-mountable | NVR-0764
Please sign in so that we can notify you about a reply
Special Features
- Supports video resolutions up to 12 megapixels
- Video compression: H.265, H.264, MPEG4
- Supports 4k2k HDMI local display
- Provides RAID (0/1/5/10) technology for advanced data security and improved performance
- 8 x 3.5" hard drive bays support disk capacity of up to 10TB
Product Specification
| Device Type | NVR - rack-mountable |
| Video Channels | 64 |
| IP Cameras Supported | 64 |
| Audio Channels | 1 |
| Image Resolution | 1920x1080, 3840x2160 |
| Compression Format | MPEG-4, H.264, H.265, H.264+ |
| OS Provided | Linux |
| Software Included (Y) | LevelOne Central Management System |
| Compliant Standards | UL, ISO 9001, FCC, RoHS |
| Security DVR | Security DVR |
| Video Recording Resolution | 1920x1080, 3840x2160 |
| Networked | Yes |
| Features | RAID 5 support, RAID 10 support, RAID 0 support, RAID 1 support |
| Hard Drive | Hard Drive |
| Quantity Supported | 8 |
| Interface | Serial ATA |
| Supported Max Total Capacity | 80 TB |
| Networking | Networking |
| Network Interfaces | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Supported Protocols | HTTP, NTP, SMTP, TCP/IP, UDP/IP, HTTPS, IPv4, IPv6, SNTP |
| Features | ONVIF support |
| Connections | Connections |
| Video Output Ports | HDMI x 2, VGA x 2 |
| Audio Input Ports | RCA x 1 |
| Audio Output Ports | RCA x 2 |
| Alarm Ports | Alarm input x 4, alarm output x 16 |
| Camera Control Interface (PTZ) | RS-232/485 |
| Network Port | 10/100/1000Base-T x 2 |
| Other Ports | USB 2.0 x 2, eSATA x 1, USB 3.0 x 1 |
| Power | Power |
| Voltage | 120 / 230 V |
| Power Consumption | 30 Watt |
| Dimensions & Weight | Dimensions & Weight |
| Width | 44.5 cm |
| Depth | 47 cm |
| Height | 9 cm |
| Weight | 10 kg |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -10 °C |
| Max Operating Temperature | 55 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
Features - LevelOne - NVR-0764
More Details
Product Code
04:285675
EAN Code
4015867206416
Manufacturer
LevelOne
