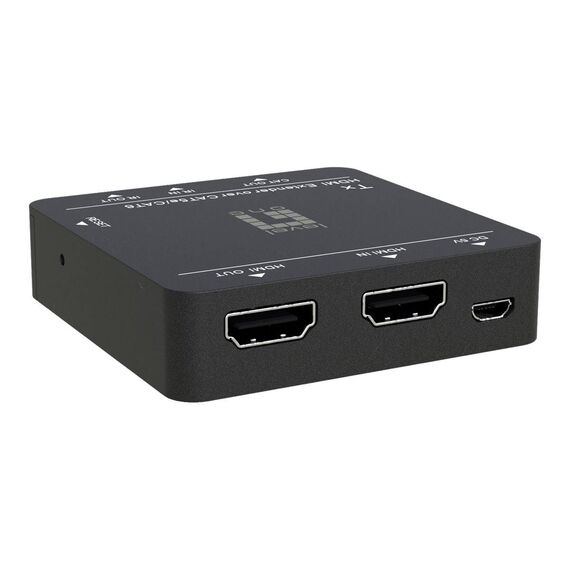

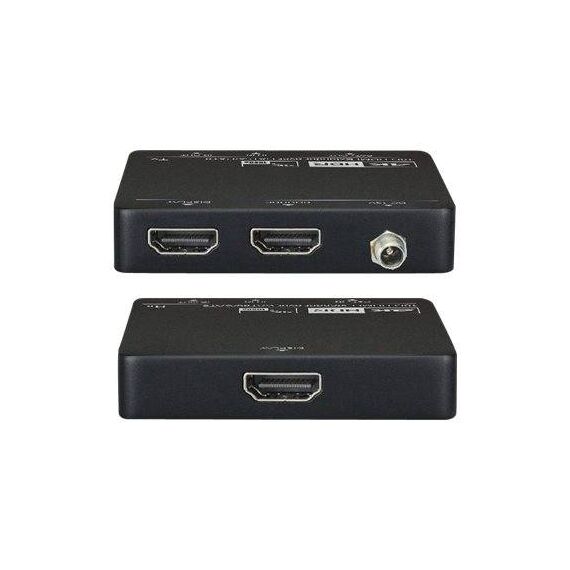

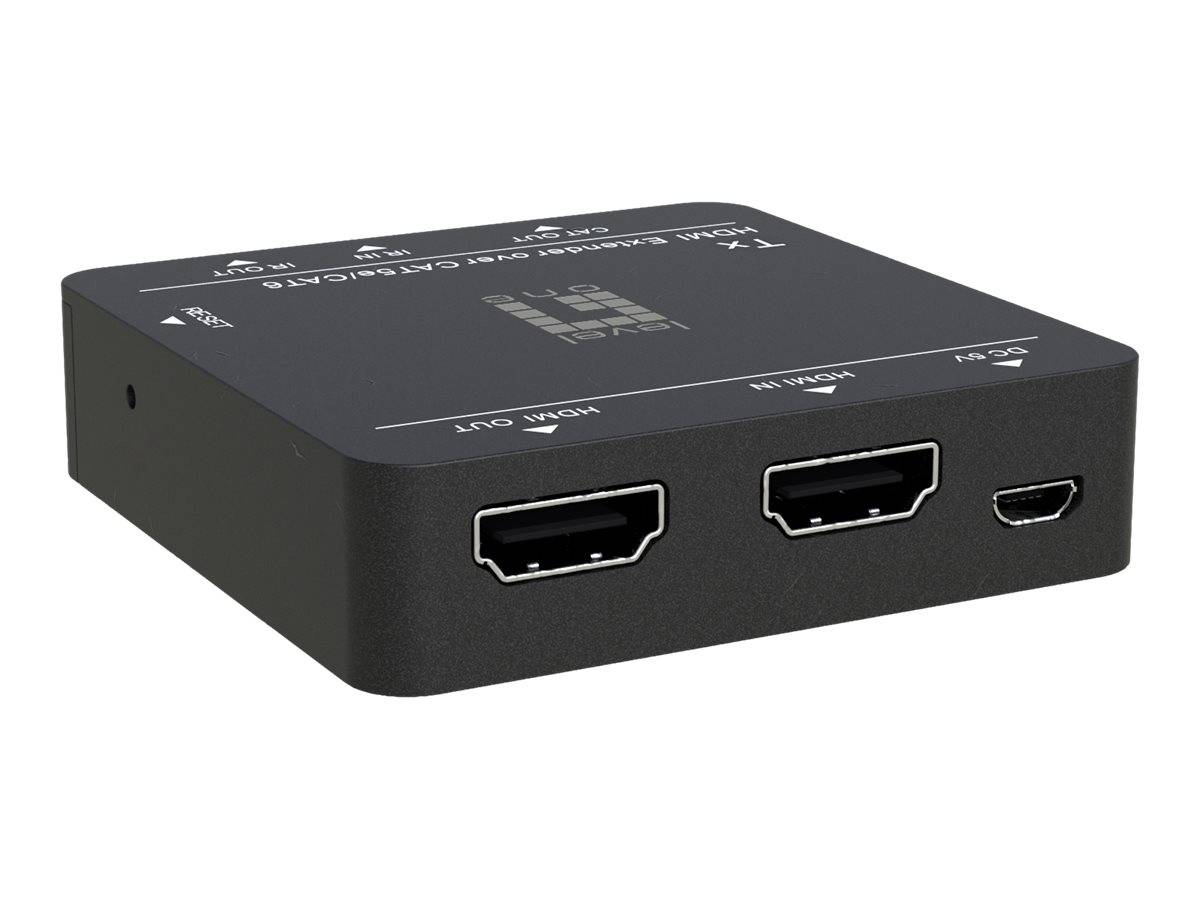

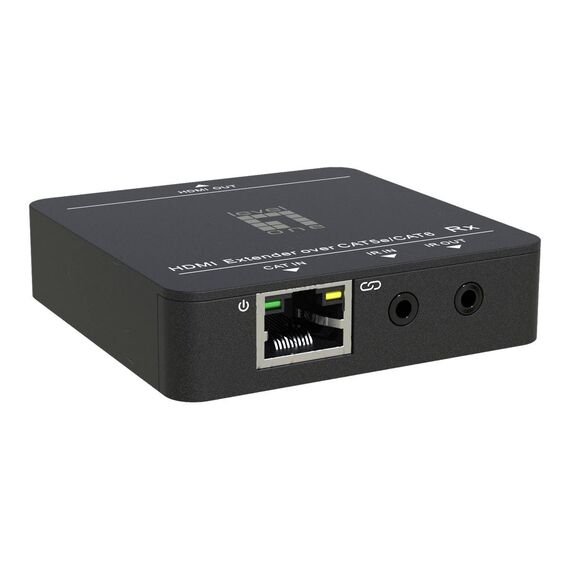

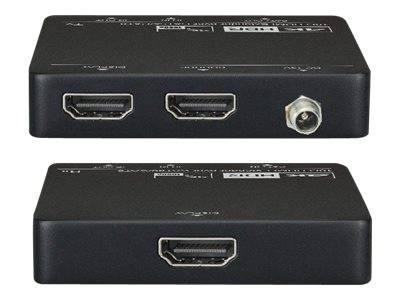

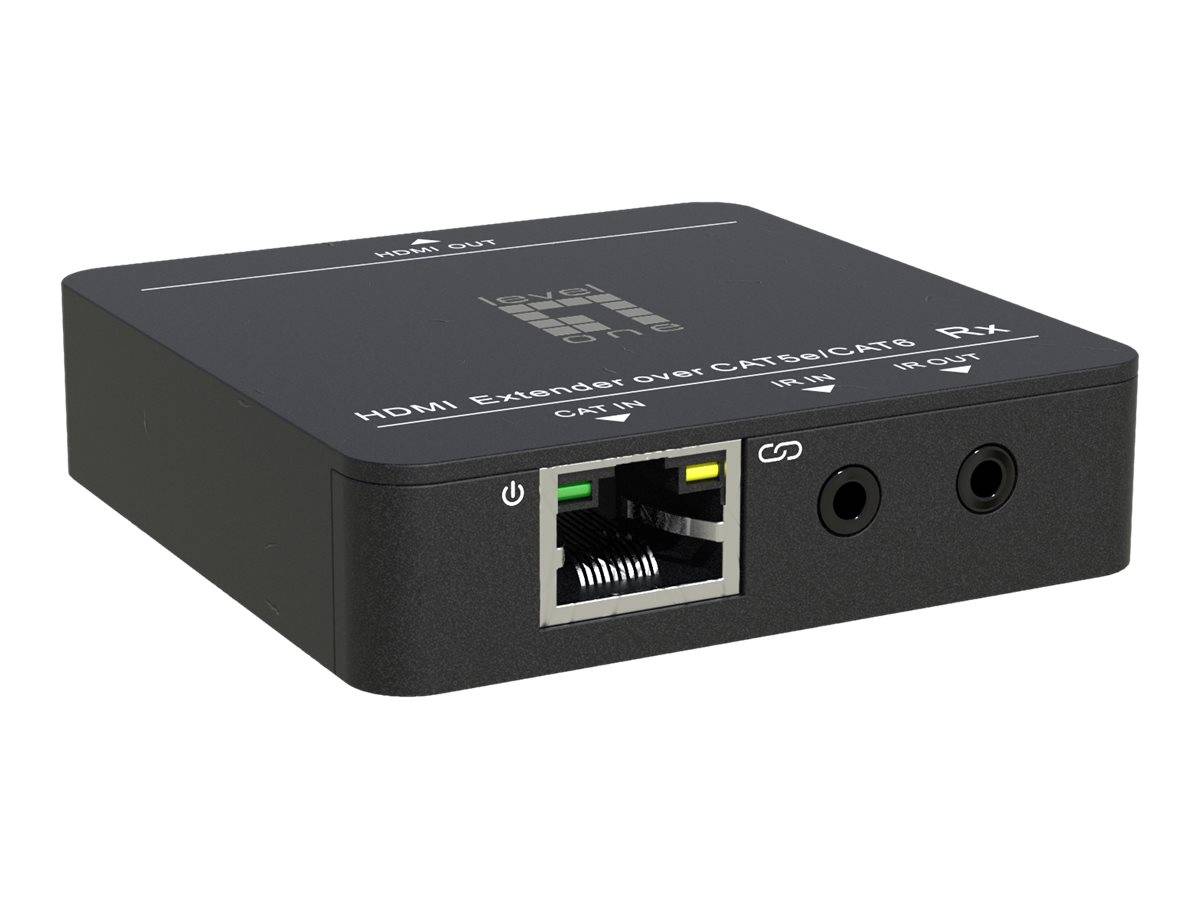

LevelOne HVE-9006 / Transmitter and receiver / video/audio extender / HDMI / up to 50 m | HVE-9006
Please sign in so that we can notify you about a reply
Special Features
- Transmission distance of up to 50m for 1080P resolution
- Simple Plug and Play installation
- Bi-Directional IR pass through
- Support full frequency IR signal from 20KHz to 60KHz
Product Specification
| Device Type | Video/audio extender |
| Form Factor | External |
| Colour | Black |
| Networking | Networking |
| Connectivity Technology | Wired |
| Data Link Protocol | HDMI |
| Max Resolution | 1920 x 1080 @ 60 Hz |
| Max Transfer Distance | 50 m |
| Features | HDCP compliant |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x HDMI input (transmitter input) - 19 pin HDMI Type A ¦ 1 x HDMI output (transmitter output) - 19 pin HDMI Type A ¦ 1 x IR (transmitter input) - mini jack ¦ 1 x IR (transmitter output) - mini jack ¦ 1 x network (transmitter output) - RJ-45 ¦ 1 x HDMI (receiver output) - 19 pin HDMI Type A ¦ 1 x network (receiver input) - RJ-45 ¦ 1 x IR (receiver input) - mini jack ¦ 1 x IR (receiver output) - mini jack |
| Miscellaneous | Miscellaneous |
| Included Accessories | IR receiver |
| Compliant Standards | Plug and Play, FCC |
| Power | Power |
| Power Device | External power adapter |
| Dimensions & Weight | Dimensions & Weight |
| Width | 6.6 cm |
| Depth | 6.6 cm |
| Height | 1.68 cm |
| Weight | 74 g |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -10 °C |
| Max Operating Temperature | 55 °C |
| Humidity Range Operating | 90% |
Features - LevelOne - HVE-9006
More Details
Product Code
04:374023
EAN Code
4015867225738
Manufacturer
LevelOne
