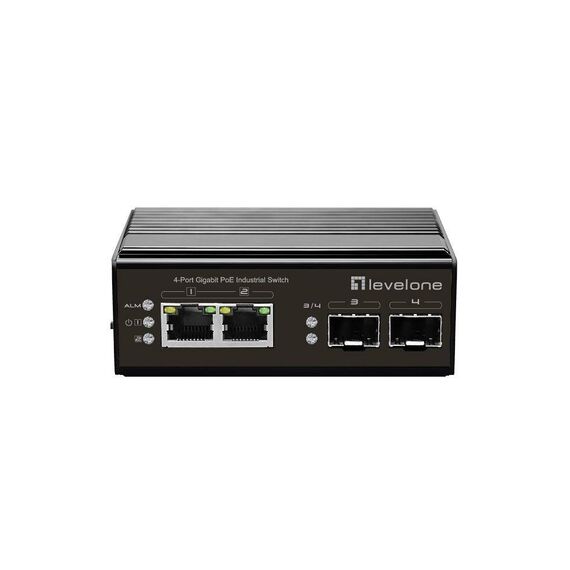

LevelOne 4-Port Gigabit PoE Industrial Switch, DIN-Rail, -40°C to 75°C | IGP-0432

LevelOne IGP-0432 Industry Ethernet Switch provides 2 PoE ports 10/100/1000Base plus 2 port Gigabit SFP to enable high speed network at mission-critical environment. With the industrial standard DIN-rail mount; this switch can be easily installed in the cabinet, plus the clearly visible status LEDs provide simple monitoring of port link activity. Moreover, the SFP slots support pluggable modules that enabling you to choose from a variety of transceivers. This switch is Power Sourcing Equipment (PSE), and it is fully complied with IEEE 802.3at/af PoE standard at maximum 30W power budget per port. It helps to save infrastructure wiring costs dramatically by eliminating electric wiring and less UPS needed. Also, it is compatible with IEEE802.3af standard PD devices.

• 10/100/1000 Mbps wire speed transmission and reception
• IEEE 802.3af/at PoE compliant to simplify deployment and installation
• 6KV surge protection level on each port
• -40°C to 75°C operating temperature range
• Supports the PoE auto-check function,which is specially designed to solve the problems of equipment frozen. It can automatically detect the frozen PD equipment and restart the port's output of PoE, and restart the PD device. It gently reduces the maintenance difficulty of engineering.
• ESD and surge protection
• Supports DIN-rail installation

Product Specification
