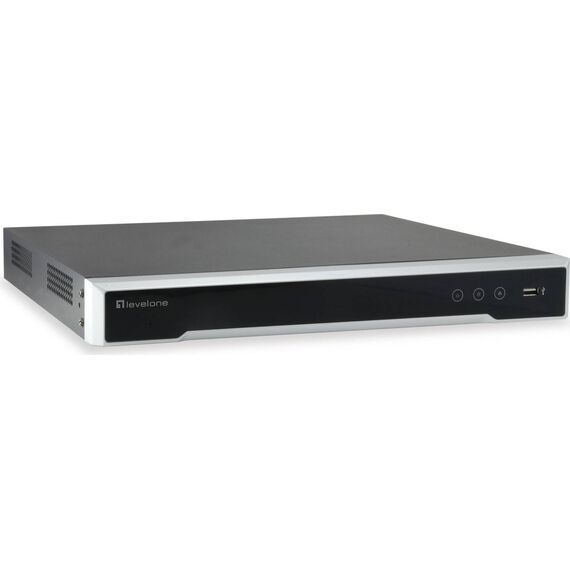

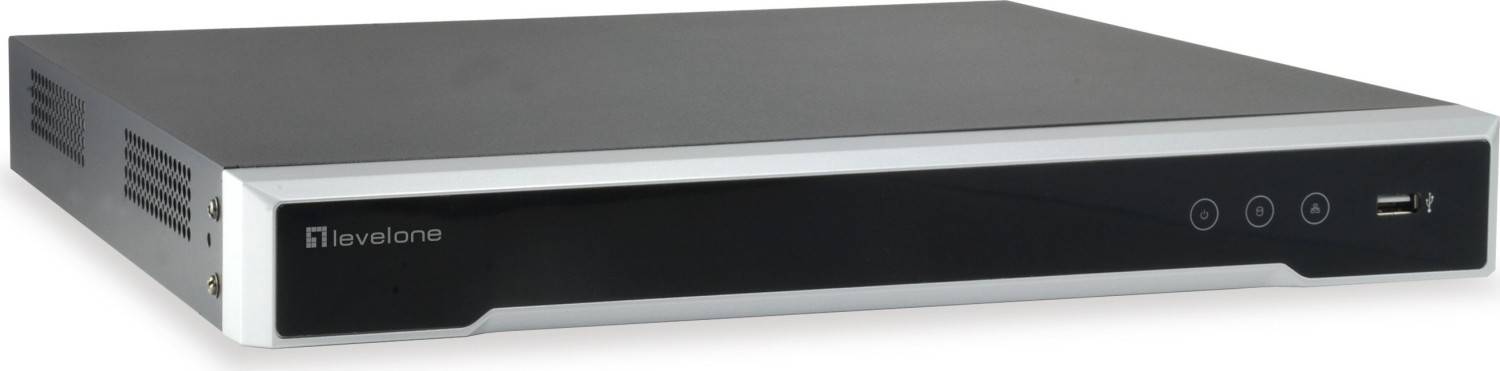

LevelOne NVR-0508 / NVR / 8 channels / networked | NVR-0508
Please sign in so that we can notify you about a reply
Special Features
- Supports 4k2k HDMI local display
- 8-Megapixel high-definition resolution
- Built-in 8 PoE ports for PoE devices
- 2 x 3.5" hard drive bays support disk capacity
Product Specification
| Device Type | NVR |
| Video Channels | 8 |
| Audio Channels | 1 |
| Image Resolution | 3840x2160 |
| Compression Format | H.264, H.265, H.264+ |
| Package Content | DVR, external power adapter, software |
| Software Included (Y) | LevelOne Central Management System |
| Compliant Standards | ISO 9001, ISO 14001, FCC, RoHS, IEEE 802.3at |
| Security DVR | Security DVR |
| Networked | Yes |
| Features | Smartphone support |
| Hard Drive | Hard Drive |
| Quantity Supported | 2 |
| Interface | Serial ATA |
| Supported Max Total Capacity | 12 TB |
| Networking | Networking |
| Network Interfaces | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Supported Protocols | HTTP, NTP, SMTP, TCP/IP, UDP/IP, HTTPS, IPv4, IPv6, SNTP |
| Features | ONVIF support, 1080p resolution support |
| Connections | Connections |
| Video Output Ports | HDMI x 1, VGA x 1 |
| Audio Input Ports | RCA x 1 |
| Audio Output Ports | RCA x 1 |
| Network Port | 10/100/1000Base-T |
| Other Ports | USB 3.0 x 2, RJ-45 x 8 (POE) |
| Power | Power |
| Power Consumption | 180 Watt |
| Dimensions & Weight | Dimensions & Weight |
| Width | 38.5 cm |
| Depth | 31.5 cm |
| Height | 5.2 cm |
| Weight | 3 kg |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -10 °C |
| Max Operating Temperature | 55 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
Features - LevelOne - NVR-0508
More Details
Product Code
04:238984
EAN Code
4015867202272
Manufacturer
LevelOne
