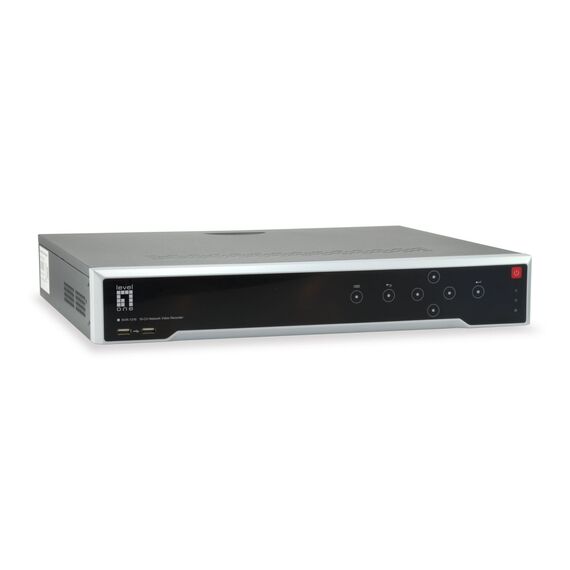

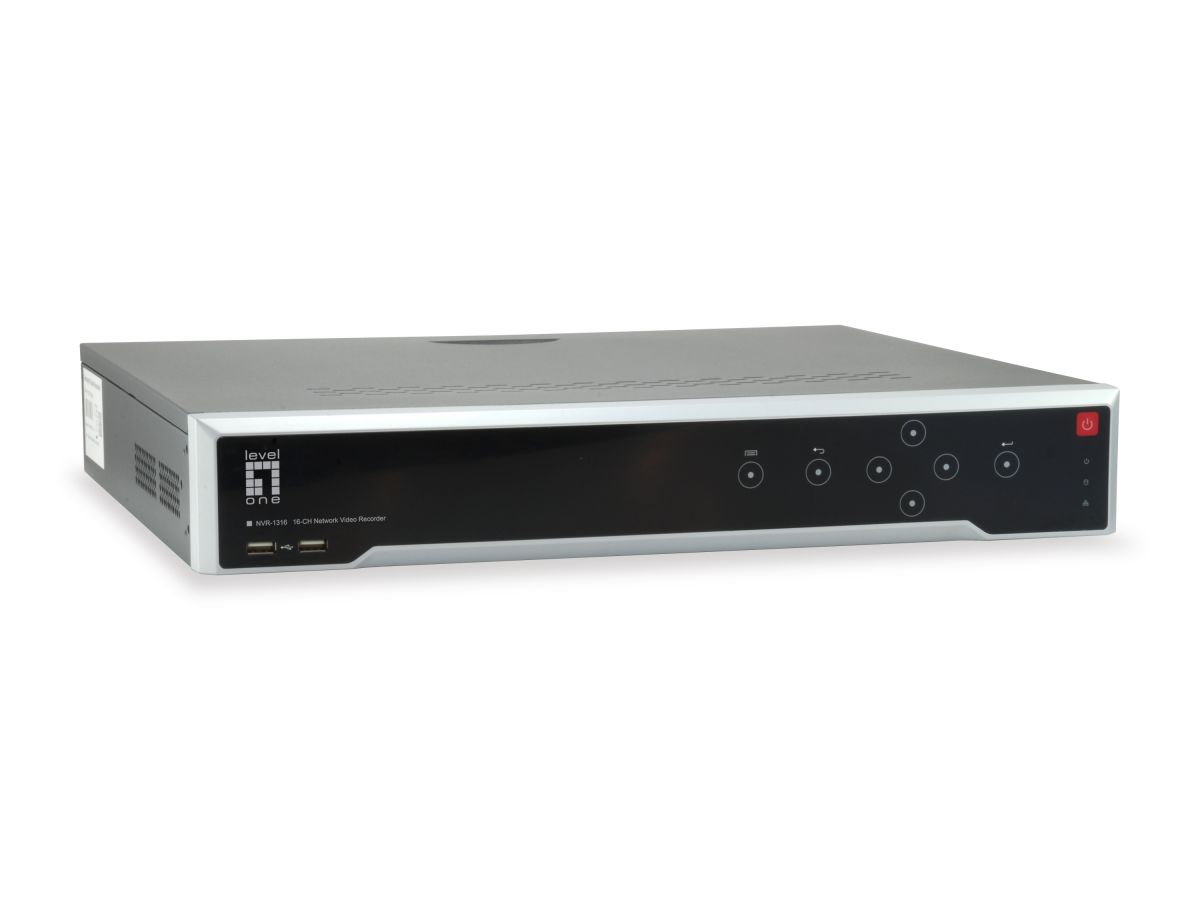

LevelOne NVR-1316 / NVR / 4-bay / 16 channels / Network Data Storage | NVR-1316
Please sign in so that we can notify you about a reply
Special Features
- Supports high video resolutions
- Video compression: H.264/H.265/MPEG4
- Display mode: Live view/playback/full screen
Product Specification
| Device Type | NVR |
| Video Channels | 16 |
| IP Cameras Supported | 16 |
| Audio Channels | 1 |
| Image Resolution | 1280x720, 1920x1080, 3840x2160 |
| Compression Format | MPEG-4, H.264, H.265, H.264+ |
| OS Provided | Linux |
| Compliant Standards | FCC |
| Security DVR | Security DVR |
| Video Recording Resolution | 1920x1080, 3840x2160 |
| Display Modes | Full screen, 16 split screens |
| Networked | Yes |
| Features | Mobile phone monitoring |
| Hard Drive | Hard Drive |
| Quantity Supported | 4 |
| Interface | Serial ATA |
| Supported Max Total Capacity | 24 TB |
| Networking | Networking |
| Network Interfaces | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Supported Protocols | HTTP, NTP, SMTP, TCP/IP, UDP/IP, SNMP, HTTPS, IPv4, IPv6 |
| System Requirements | System Requirements |
| Browser | Internet Explorer 9 or later |
| Connections | Connections |
| Video Output Ports | HDMI x 1, VGA x 1 |
| Audio Input Ports | RCA x 1 |
| Audio Output Ports | RCA x 1 |
| Alarm Ports | Alarm input x 4, alarm output x 8 |
| Network Port | 10/100/1000Base-T x 2 |
| Other Ports | USB 2.0 x 2, serial RS-232 x 1, serial RS-485 x 1, USB 3.0 x 1 |
| Power | Power |
| Voltage | 120 / 230 V |
| Power Consumption | 20 Watt |
| Dimensions & Weight | Dimensions & Weight |
| Width | 44.5 cm |
| Depth | 39 cm |
| Height | 7 cm |
| Weight | 5 kg |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -10 °C |
| Max Operating Temperature | 55 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
Features - LevelOne - NVR-1316
More Details
Product Code
04:248986
EAN Code
4015867199121
Manufacturer
LevelOne
