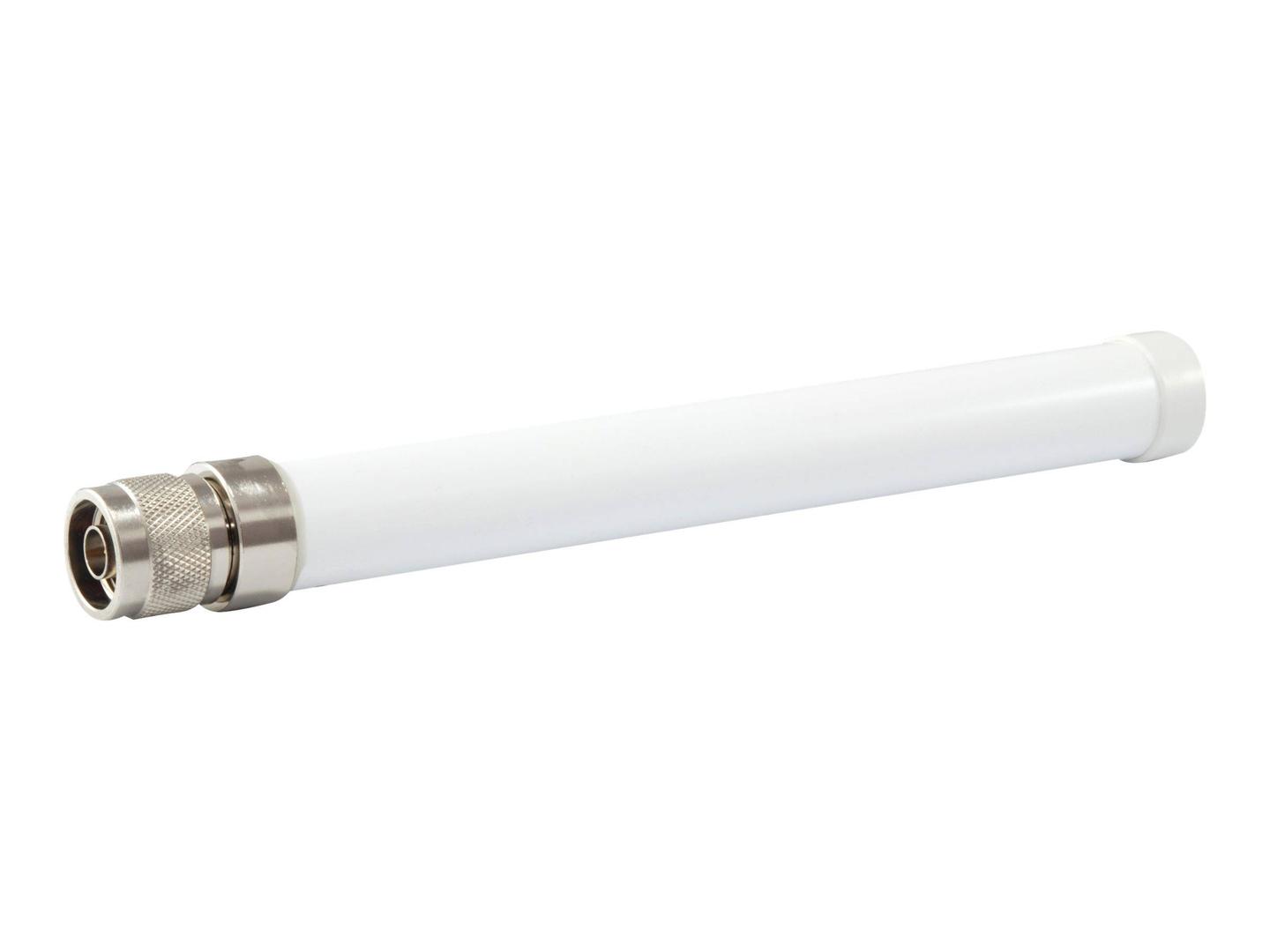

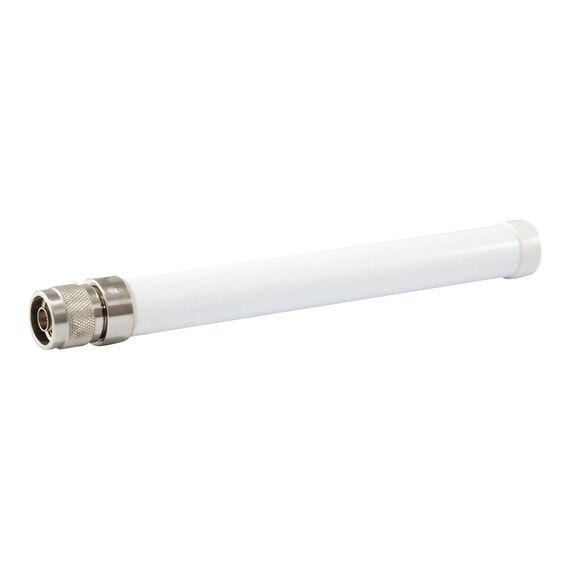

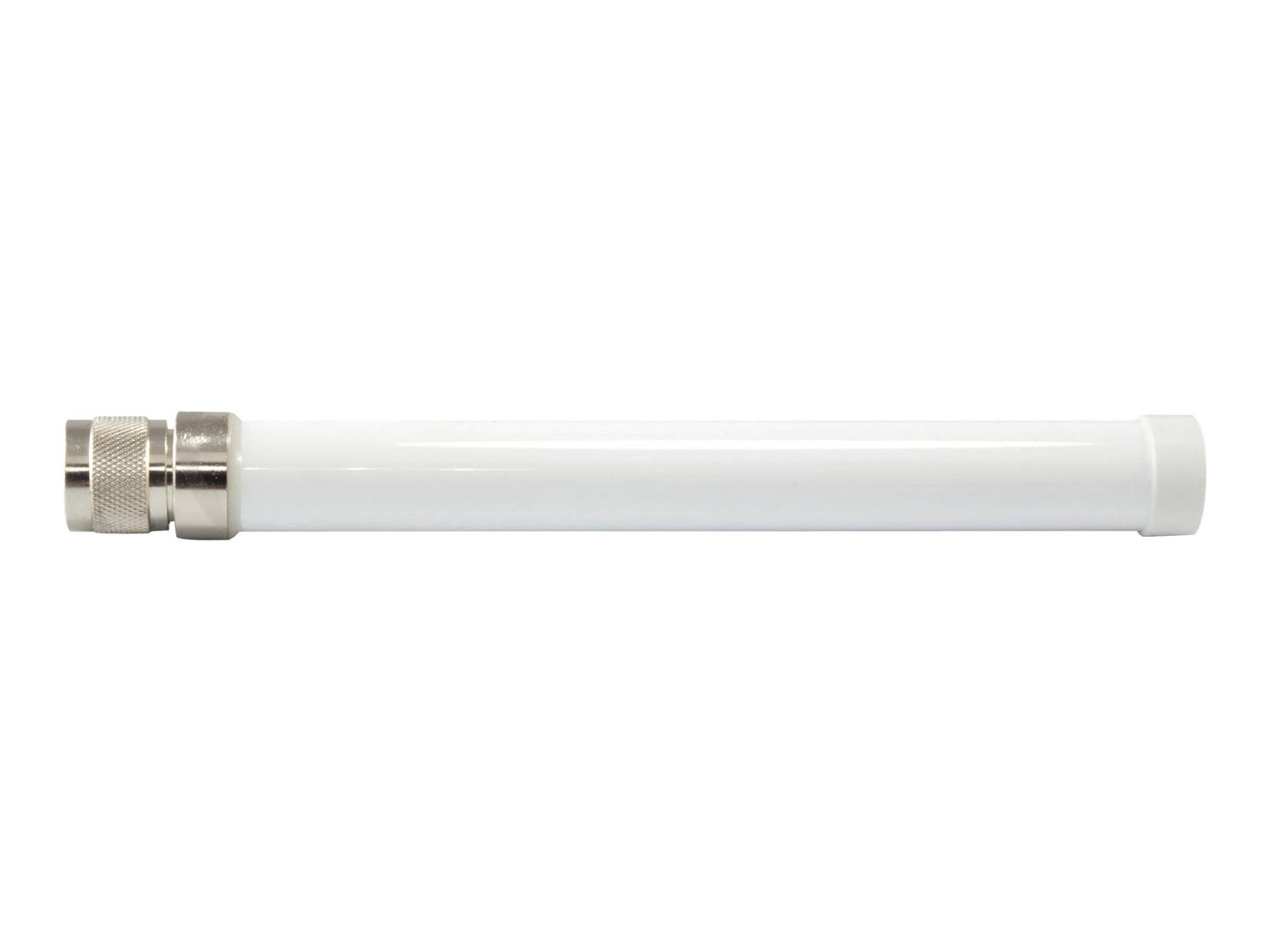

LevelOne OAN-4058 / Antenna / Wi-Fi / 8 dBi (for 5 GHz), 5 dBi (for 2.4 GHz) / omni-directional / Indoor / Outdoor | OAN-4058
Please sign in so that we can notify you about a reply
Special Features
- Provides 5 dBi/8 dBi omnidirectional operation
- For IEEE 802.11a/b/g/n/ac Wireless applications in 2.4/5 GHz frequency range
- Low wind loading
- -30°C to 60°C operating temperature range
Product Specification
| Product Type | Antenna |
| Width | 20.3 cm |
| Depth | 2.2 cm |
| Height | 2.2 cm |
| Weight | 86 g |
| Aerial | Aerial |
| Intended For | Wi-Fi |
| Aerial Placing / Mounting | Indoor / Outdoor |
| Compatibility | 802.11 a/b/g/n/ac |
| Frequency Range | 2.4 - 2.5 GHz, 4.9 - 5.9 GHz |
| Gain | 8 dBi (for 5 GHz), 5 dBi (for 2.4 GHz) |
| Directivity | Omni-directional |
| Voltage Standing Wave Ratio (VSWR) | 2.0:1 |
| Horizontal Beamwidth | 360° |
| Vertical Beamwidth | 51.7° (at 2.4 GHz), 27.7° (at 5 GHz) |
| Impedance | 50 Ohm |
| Cabling & Wiring | Cabling & Wiring |
| Connector Provided | 1 x N connector male |
| Miscellaneous | Miscellaneous |
| Features | Weatherproof, IP65 protection, vertical polarisation |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -30 °C |
| Max Operating Temperature | 60 °C |
| Humidity Range Operating | 95% (non-condensing) |
Features - LevelOne - OAN-4058
More Details
Product Code
04:281967
EAN Code
4015867205020
Manufacturer
LevelOne
