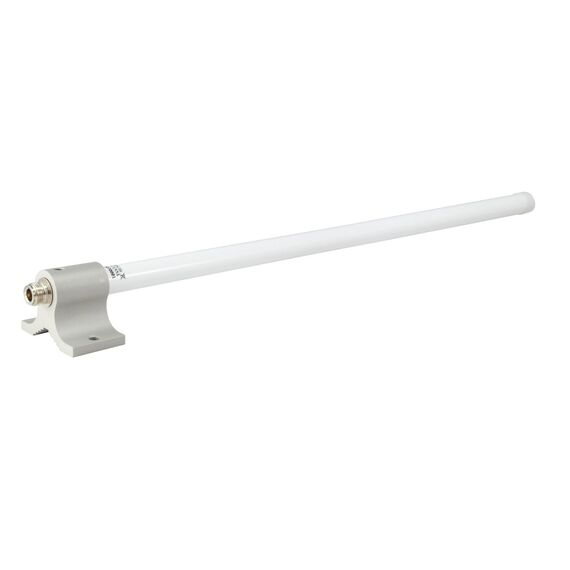

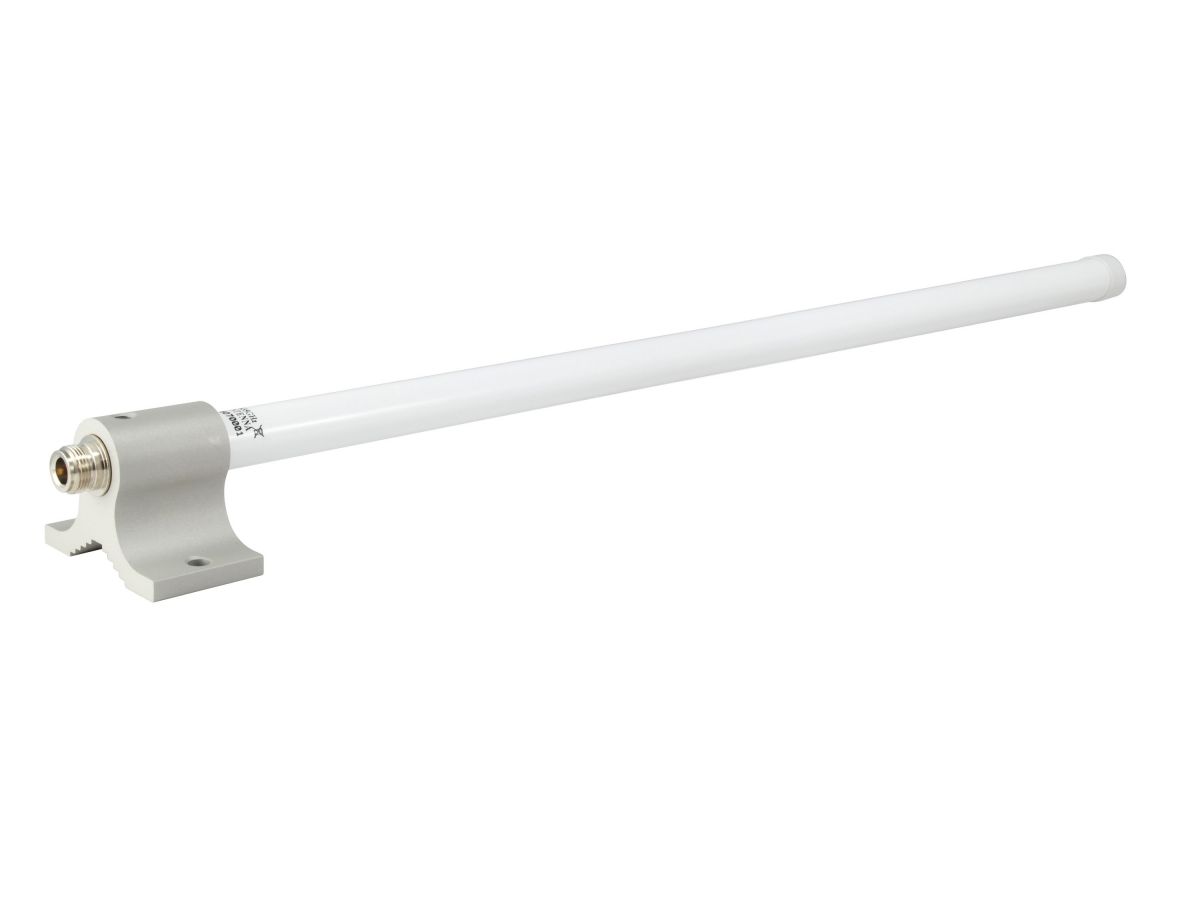

LevelOne OAN-4102 / Antenna / Wi-Fi / 10 dBi / omni-directional / Indoor / Outdoor, pole mount | OAN-4102
Please sign in so that we can notify you about a reply
Special Features
- For IEEE 802.11a/n wireless applications in 5 GHz frequency range
- Provides 10dBi omnidirectional operation
- Low wind loading
- 40°C to 70°C operating temperature range
Product Specification
| Product Type | Antenna |
| Width | 40.9 cm |
| Depth | 7 cm |
| Height | 5.3 cm |
| Weight | 262 g |
| Aerial | Aerial |
| Intended For | Wi-Fi |
| Aerial Placing / Mounting | Indoor / Outdoor, pole mount |
| Compatibility | 802.11 a, 802.11n |
| Frequency Range | 5.4 - 5.835 GHz |
| Gain | 10 dBi |
| Directivity | Omni-directional |
| Voltage Standing Wave Ratio (VSWR) | 2.0:1 |
| Horizontal Beamwidth | 360° |
| Vertical Beamwidth | 9.6° |
| Impedance | 50 Ohm |
| Cabling & Wiring | Cabling & Wiring |
| Connector Provided | 1 x N connector female |
| Miscellaneous | Miscellaneous |
| Mounting Kit | Included |
| Features | Water-resistant, weather-resistant, vertical polarisation |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 70 °C |
| Humidity Range Operating | 95% |
Features - LevelOne - OAN-4102
More Details
Product Code
04:248499
EAN Code
4015867203194
Manufacturer
LevelOne
