LevelOne WAB-6010 / Radio access point / Wi-Fi / 2.4 GHz | WAB-6010
Description

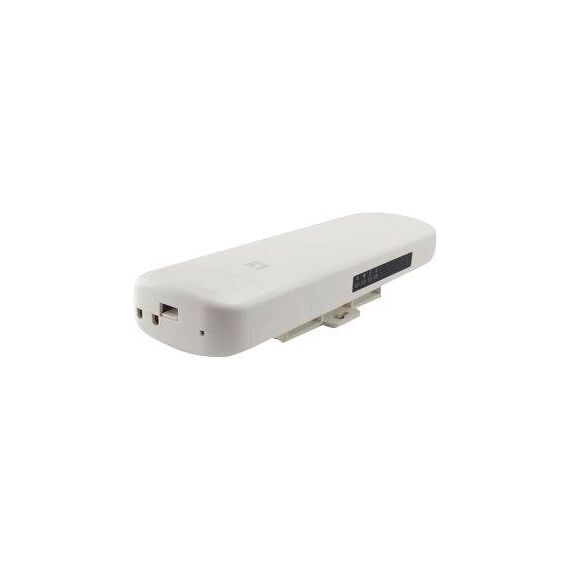

The LevelOne WAB-6010 is a managed, outdoor single-band 802.11n wireless access point, capable of 300 Mbps wireless internet speeds. The device runs on 2.4 GHz frequency, and can be used as part of a managed network when controlled by the LevelOne WAC-2000/WAC-2003 Wireless LAN Controller. LevelOne WAB-6010 also offers PoE, removing the need for an external power supply, which makes it easy to install. Advanced weatherproof design, rated to IP65 means the WAP is designed for outdoor deployments, and can withstand rain, humidity, dust, snow and extremely hot conditions. A fast, versatile and secure access point for a wide variety of outdoor network requirements.
LevelOne WAB-6010 / Radio access point | WAB-6010
Special Features
- Share your wireless network up to 300 Mbps
- Compatible with IEEE 802.11b/g/n wireless standards
- Multi-operation modes to suit different wireless applications
- IEEE 802.3af/at PoE compliant to simplify deployment and installation
- Weatherproof IP65-rated housing
- Provides up to 4 SSIDs to separate network traffic and enhance security
Product Specification
| Device Type | Radio access point |
| Ruggedized Design | Outdoor |
| Width | 25.7 cm |
| Depth | 8.7 cm |
| Height | 3.8 cm |
| Weight | 400 g |
| Form Factor | External |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 300 Mbps |
| Line Coding Format | DBPSK, DQPSK, CCK, 64 QAM, BPSK, QPSK, 16 QAM |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Spread Spectrum Method | OFDM, DSSS |
| Frequency Band | 2.4 GHz |
| Capacity | Maximum number of clients: 64 ¦ Recommended number of clients: 50 |
| Status Indicators | Power, status, link/activity |
| Features | Flow control, auto-uplink (auto MDI/MDI-X), repeating mode, Syslog support, manageable, Wireless Distribution System (WDS) support, firmware upgradable, wall mountable, Wi-Fi Multimedia (WMM) support, Auto Channel Select (ACS), Quality of Service (QoS), Wi-Fi Protected Setup (WPS), reset button, weatherproof, port based access control |
| Encryption Algorithm | 128-bit WEP, 64-bit WEP, TKIP, WPA, WPA2, WPA-PSK, 128-bit AES, WPA2-PSK |
| Authentication Method | Radio Service Set ID (SSID) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.11b, IEEE 802.3af, IEEE 802.3x, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11e, IEEE 802.11n, IEEE 802.3at |
| Antenna | External detachable |
| Antenna Qty | 2 |
| Gain Level | 5 dBi |
| Interfaces | 1 x 100Base-TX - RJ-45 (WAN) ¦ 1 x 100Base-TX (PoE) - RJ-45 |
| Compliant Standards | FCC, IP65 |
| Power Over Ethernet (PoE) Supported | PoE+ |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 55 °C |
| Humidity Range Operating | 10 - 90% |
Features - LevelOne - WAB-6010
More Details
Product Code
04:244916
EAN Code
4015867202333
Manufacturer
LevelOne
