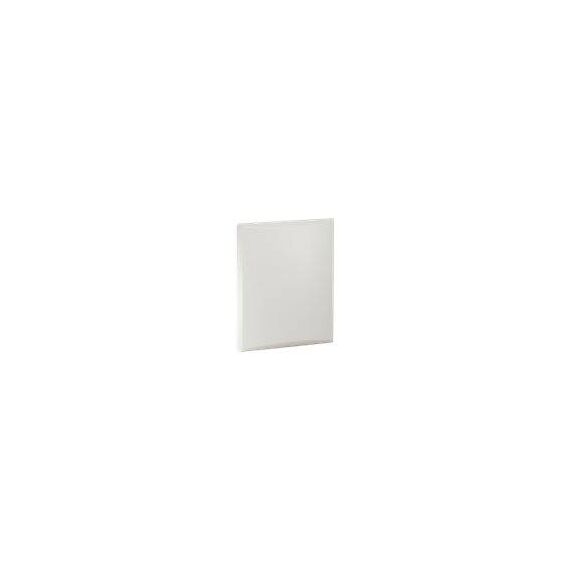

LevelOne WAN-7151 / Antenna / panel / Wi-Fi / 15 dBi / directional / Indoor / Outdoor, pole mount | WAN-7151
Please sign in so that we can notify you about a reply
Special Features
- Provides 15 dBi directional operation
- For IEEE 802.11b/g/n wireless applications in 2.4 GHz frequency range
- Directional operation provides extended point to point coverage
- Dual-Polarization to avoid interference
- 30°C to 60°C operating temperature range
- Low wind loading
Product Specification
| Product Type | Antenna |
| Width | 33 cm |
| Depth | 29.5 cm |
| Height | 3.5 cm |
| Weight | 904 g |
| Aerial | Aerial |
| Form Factor | Panel |
| Intended For | Wi-Fi |
| Aerial Placing / Mounting | Indoor / Outdoor, pole mount |
| Compatibility | 802.11 b/g/n |
| Frequency Range | 2.4 - 2.5 GHz |
| Gain | 15 dBi |
| Directivity | Directional |
| Voltage Standing Wave Ratio (VSWR) | 2.0:1 |
| Horizontal Beamwidth | 30° |
| Vertical Beamwidth | 15° |
| Impedance | 50 Ohm |
| Cabling & Wiring | Cabling & Wiring |
| Connector Provided | 2 x N-Series connector female |
| Miscellaneous | Miscellaneous |
| Mounting Kit | Included |
| Features | Dual polarising |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -30 °C |
| Max Operating Temperature | 60 °C |
| Humidity Range Operating | 95% (non-condensing) |
Features - LevelOne - WAN-7151
More Details
Product Code
04:248519
EAN Code
4015867203576
Manufacturer
LevelOne
