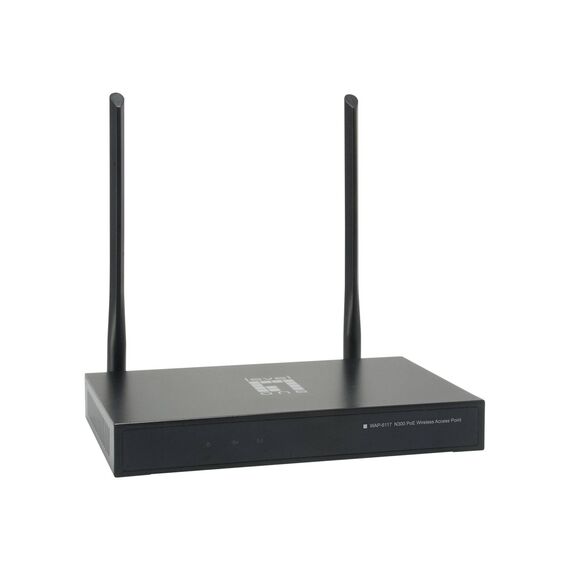

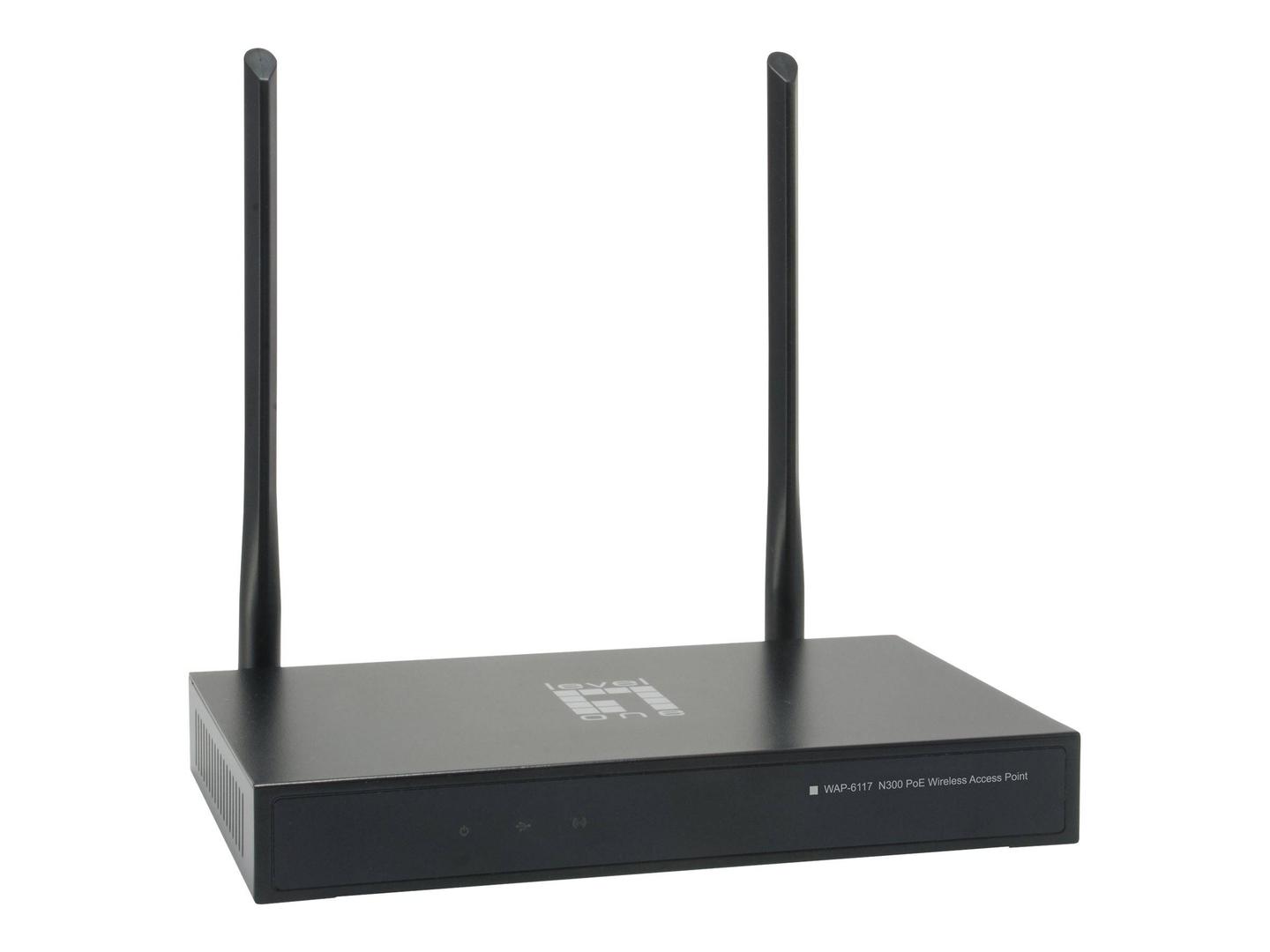

LevelOne WAP-6117 / Radio access point / 100Mb LAN / Wi-Fi / 2.4 GHz / desktop | WAP-6117
Please sign in so that we can notify you about a reply
Special Features
- Share your wireless network up to 300 Mbps
- Compatible with IEEE 802.11 b/g/n wireless standards
- Provides up to 4 SSIDs to separate network traffic and enhance security
- Multi-operation modes to suit different wireless applications
- Supports WEP, WPA and WPA2 encryption with IEEE 802.1x for high level security
- IEEE 802.3af PoE compliant to simplify deployment and installation
Product Specification
| Device Type | Radio access point |
| Width | 22 cm |
| Depth | 13.5 cm |
| Height | 3 cm |
| Weight | 870 g |
| Networking | Networking |
| Form Factor | Desktop |
| Connectivity Technology | Wireless, wired |
| Data Transfer Rate | 300 Mbps |
| Line Coding Format | DBPSK, DQPSK, CCK, 64 QAM, BPSK, QPSK, 16 QAM, OFDM |
| Data Link Protocol | Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Remote Management Protocol | HTTP, CLI |
| Frequency Band | 2.4 GHz |
| Performance | Data transfer rate: 300 Mbps |
| Capacity | Maximum number of clients: 40 ¦ Maximum number of configured SSIDs: 4 |
| Status Indicators | Power, WLAN, USB |
| Features | Flow control, repeating mode, firmware upgradable, WISP mode, WPA2 encryption, Wi-Fi Multimedia (WMM) support, Wi-Fi Protected Setup (WPS), Multiple SSID support, 802.1x authentication, WEP encryption, WPA encryption, AES encryption, gateway mode |
| Encryption Algorithm | AES, 128-bit WEP, 64-bit WEP, 152-bit WEP, TKIP, WPA, WPA2, WPA-PSK, WPA2-PSK |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.11b, IEEE 802.3af, IEEE 802.3x, IEEE 802.11g, IEEE 802.11i, IEEE 802.11e, IEEE 802.11n, IEEE 802.3at |
| Aerial | Aerial |
| Antenna | External detachable |
| Antenna Qty | 2 |
| Gain Level | 5 dBi |
| Expansion / Connectivity | Expansion / Connectivity |

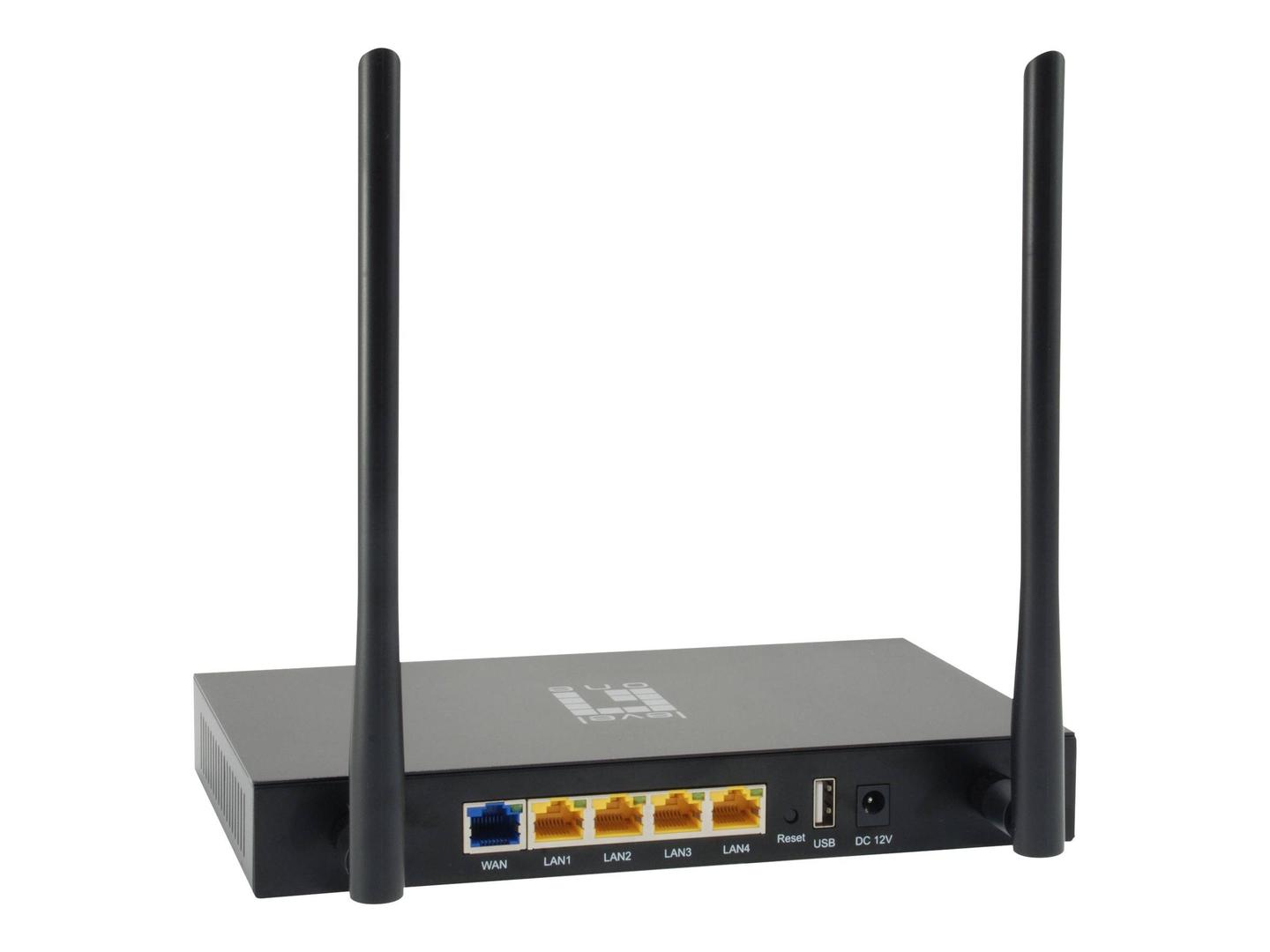

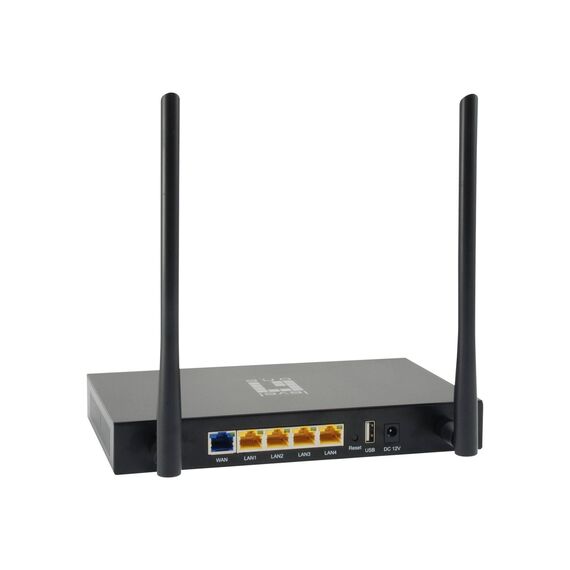

| Interfaces | 1 x 100Base-TX - RJ-45 (WAN) ¦ 4 x 100Base-TX - RJ-45 ¦ 1 x USB 2.0 - Type A |
| Miscellaneous | Miscellaneous |
| Cables Included | 1 x network cable |
| Compliant Standards | EMI |
| Power | Power |
| Power Over Ethernet (PoE) Supported | PoE+ |
| Power Device | External power adapter |
| Power Consumption Operational | 12 Watt |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 55 °C |
| Humidity Range Operating | 0 - 95% (non-condensing) |
Features - LevelOne - WAP-6117
More Details
Product Code
04:258086
EAN Code
4015867203996
Manufacturer
LevelOne
