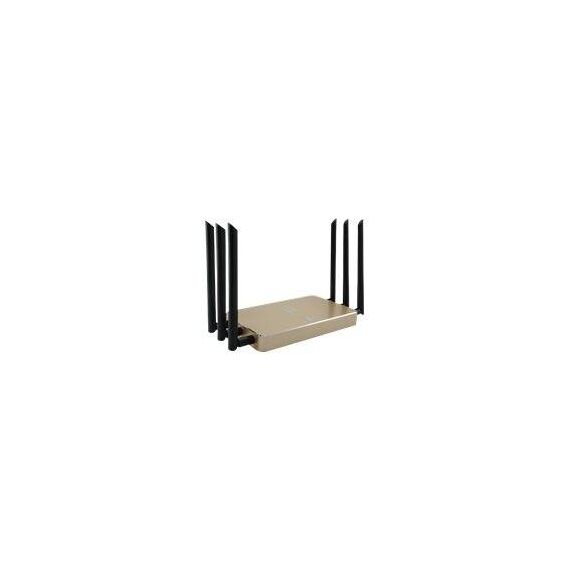

LevelOne WAP-8021 / Radio access point / Wi-Fi 5 / 2.4 GHz, 5 GHz | WAP-8021
Please sign in so that we can notify you about a reply
Special Features
- Share your wireless network
- Compatible with IEEE 802.11a/b/g/n/ac wireless standards
- Multi-operation modes to suit different wireless applications
Product Specification
| Device Type | Radio access point |
| Width | 19.8 cm |
| Depth | 12.8 cm |
| Height | 2.6 cm |
| Weight | 598 g |
| Networking | Networking |
| Form Factor | External |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 1200 Mbps |
| Line Coding Format | DBPSK, DQPSK, CCK, 64 QAM, BPSK, QPSK, 16 QAM, OFDM |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Spread Spectrum Method | OFDM, DSSS |
| Remote Management Protocol | HTTP |
| Frequency Band | 2.4 GHz, 5 GHz |
| Capacity | Maximum number of configured SSIDs: 8 ¦ Maximum number of clients: 100 |
| Wi-Fi Rating | AC1200 |
| Status Indicators | Port status |
| Features | Flow control, repeating mode, manageable, Wireless Distribution System (WDS) support, Access Point operational mode, firmware upgradable, WISP mode, WPA2 encryption, Wi-Fi Multimedia (WMM) support, Samba support, Multiple SSID support, reset button, WEP encryption, wireless extender mode, WPA encryption, Pre-Shared Key (PSK), DLNA support |
| Encryption Algorithm | 128-bit WEP, 64-bit WEP, WPA, WPA2, WPA-PSK, WPA2-PSK |
| Authentication Method | Radio Service Set ID (SSID) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.11b, IEEE 802.11a, IEEE 802.3x, IEEE 802.11g, IEEE 802.11i, IEEE 802.11e, IEEE 802.11n, IEEE 802.11ac |
| Aerial | Aerial |
| Antenna Qty | 6 |
| Directivity | Omni-directional |
| Gain Level | 6 dBi |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x 1000Base-T - RJ-45 (WAN) ¦ 4 x 1000Base-T - RJ-45 ¦ 4 x USB |
| Miscellaneous | Miscellaneous |
| Compliant Standards | EMI |
| Power | Power |
| Power Device | External power adapter |
| Power Consumption Operational | 17 Watt |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
Features - LevelOne - WAP-8021
More Details
Product Code
04:246008
EAN Code
4015867200605
Manufacturer
LevelOne
