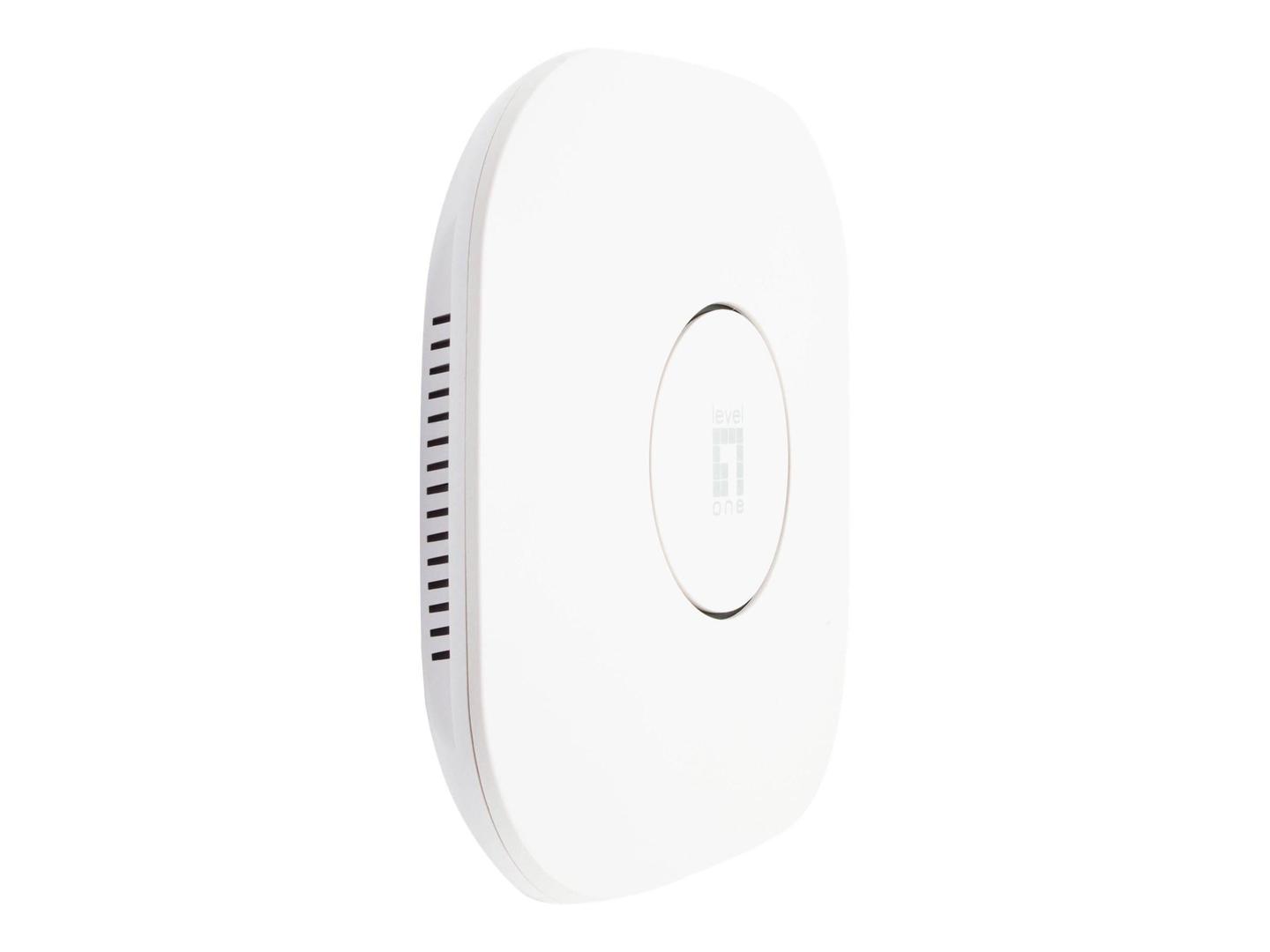

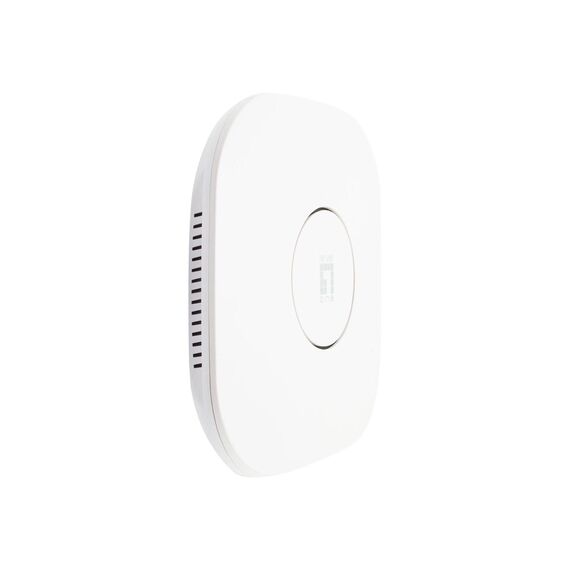

LevelOne WAP-8121 / Radio access point / Wi-Fi / Dual Band / in-ceiling | WAP-8121
Please sign in so that we can notify you about a reply
Special Features
- Compatible with IEEE 802.11a/b/g/n/ac wireless standards
- Multi-operation modes to suit different wireless applications
- IEEE 802.3af PoE compliant to simplify deployment and installation
- Provides up to 8 SSIDs to separate network traffic and enhance security
- Auto Channel Selection for low interference band
Product Specification
| Device Type | Radio access point |
| Width | 18.9 cm |
| Depth | 3.85 cm |
| Height | 18.9 cm |
| Weight | 326 g |
| Networking | Networking |
| Form Factor | In-ceiling |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 750 Mbps |
| Line Coding Format | DBPSK, DQPSK, CCK, 64 QAM, BPSK, QPSK, 16 QAM, OFDM |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Spread Spectrum Method | OFDM, DSSS |
| Remote Management Protocol | HTTP |
| Frequency Band | 2.4 GHz, 5 GHz |
| Capacity | Maximum number of configured SSIDs: 8 ¦ Maximum number of clients: 80 |
| Status Indicators | Power, WLAN |
| Features | Flow control, repeating mode, Syslog support, Wireless Distribution System (WDS) support, firmware upgradable, Wi-Fi Multimedia (WMM) support, Multiple SSID support, wireless bridge mode, reset button |
| Encryption Algorithm | AES, 128-bit WEP, 64-bit WEP, 152-bit WEP, TKIP, WPA, WPA2, WPA2-PSK |
| Authentication Method | Radio Service Set ID (SSID) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.3x, IEEE 802.11g, IEEE 802.11i, IEEE 802.11e, IEEE 802.11n, IEEE 802.11ac |
| Aerial | Aerial |
| Antenna | Internal |
| Antenna Qty | 3 |
| Directivity | Omni-directional |
| Gain Level | 3 dBi |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x 100Base-TX (PoE) - RJ-45 ¦ 1 x 100Base-TX - RJ-45 |
| Miscellaneous | Miscellaneous |
| Cables Included | 1 x network cable |
| Compliant Standards | FCC |
| Power | Power |
| Power Over Ethernet (PoE) Supported | PoE |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
Features - LevelOne - WAP-8121
More Details
Product Code
04:220004
EAN Code
4015867199190
Manufacturer
LevelOne
