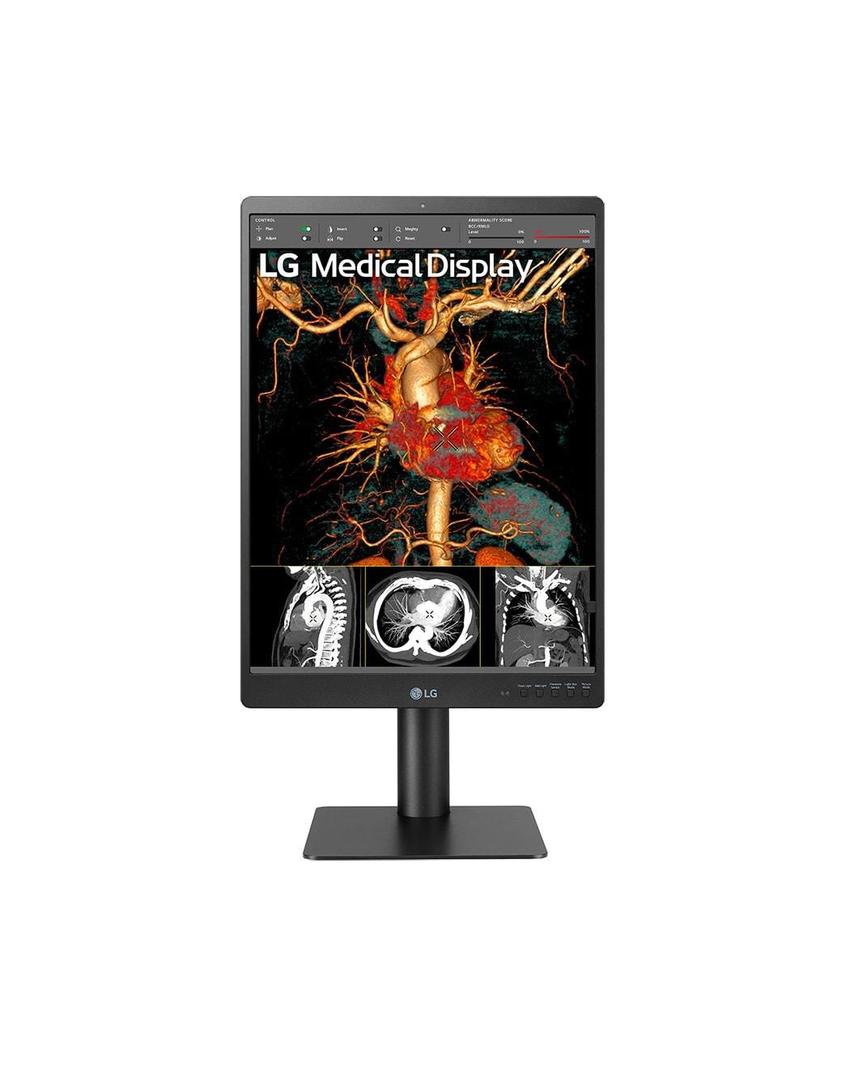

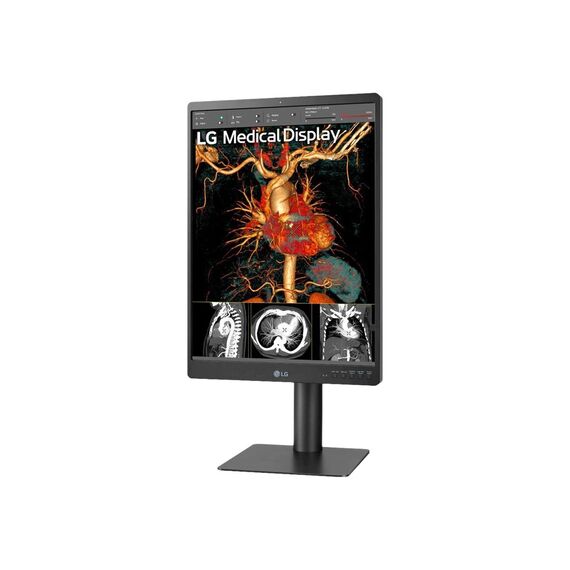

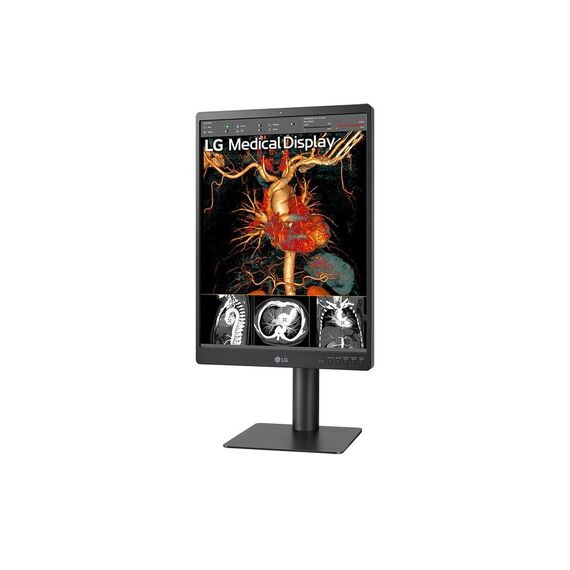

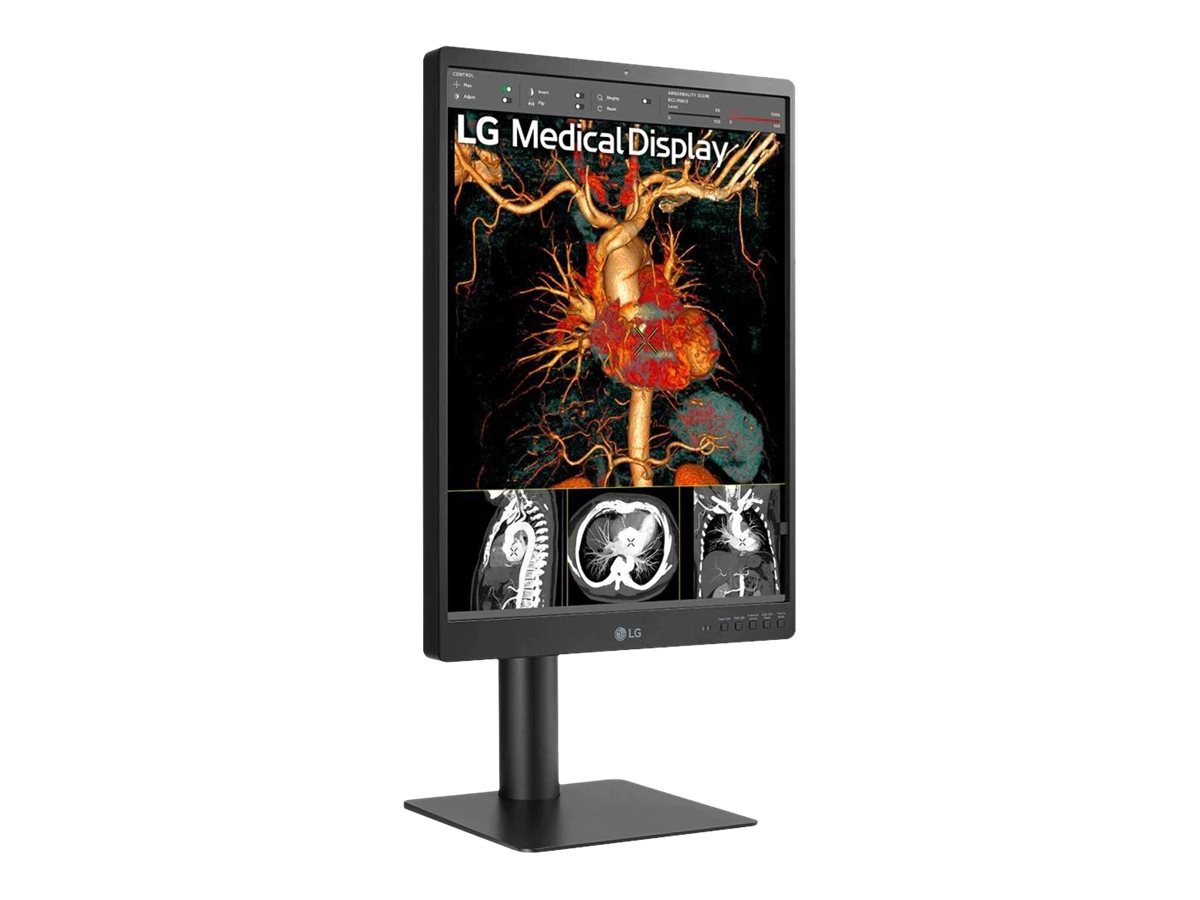

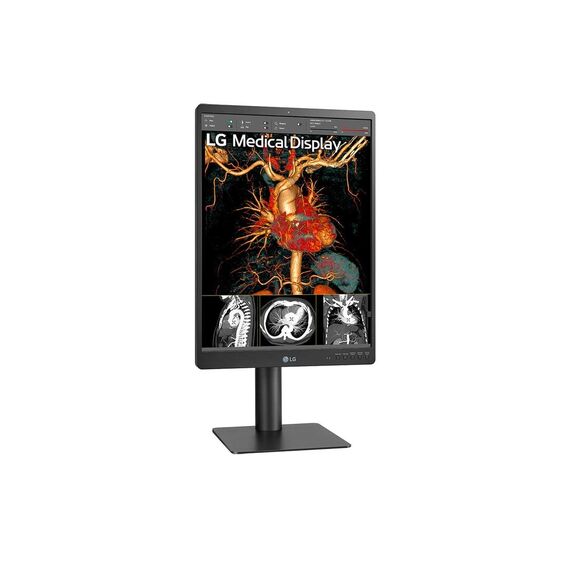

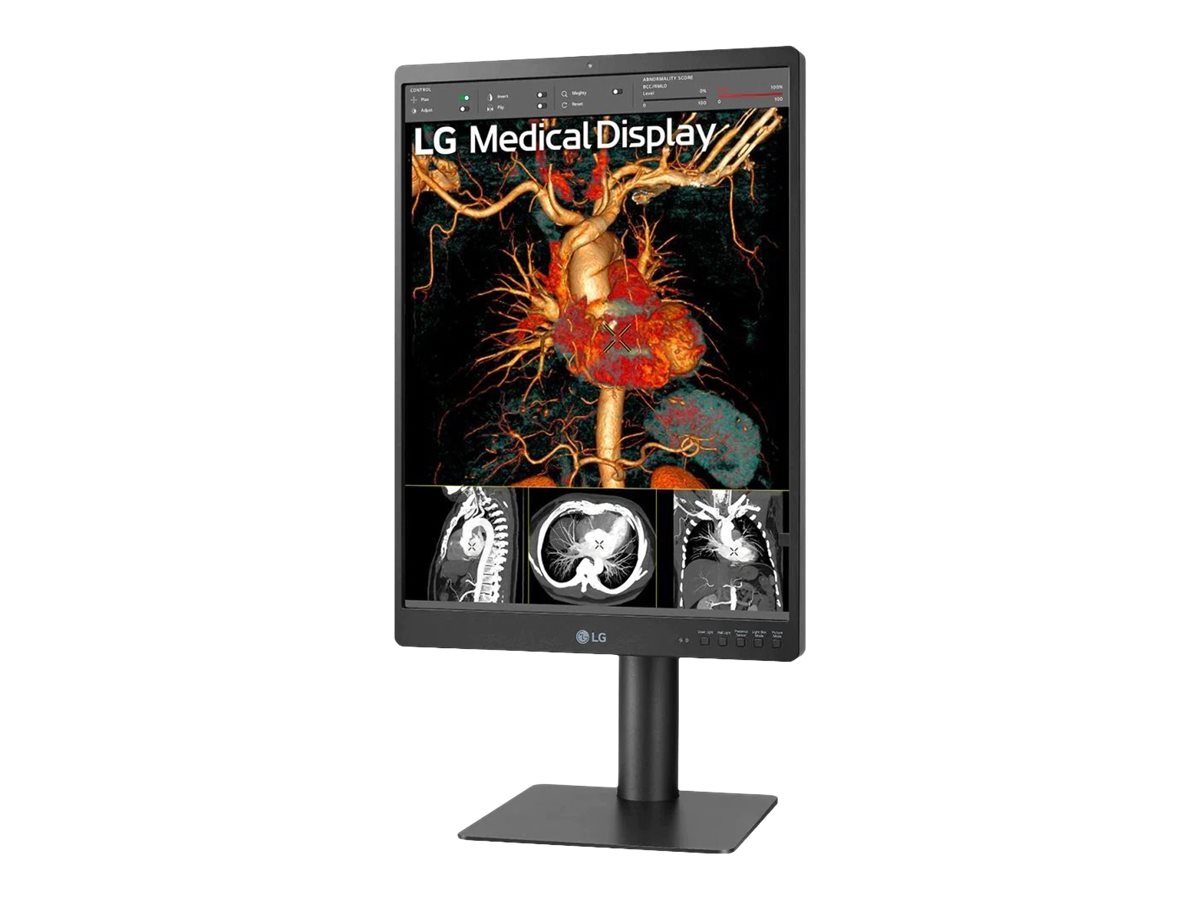

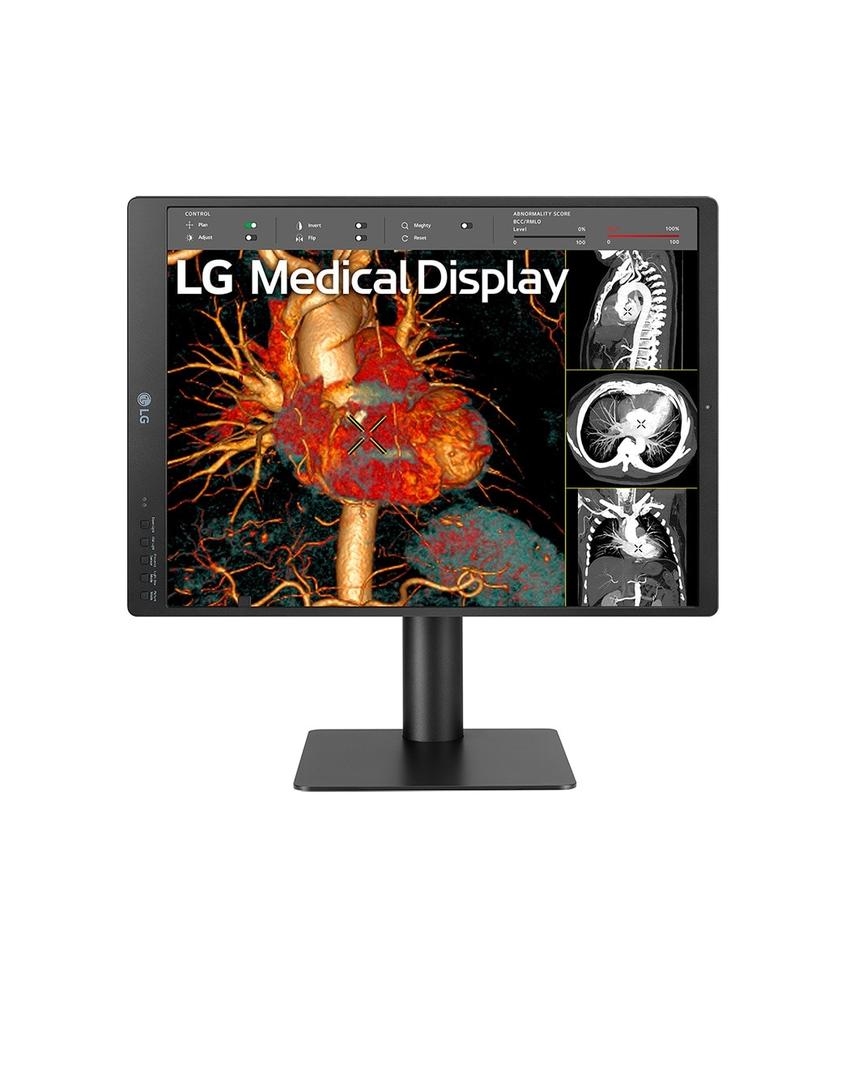

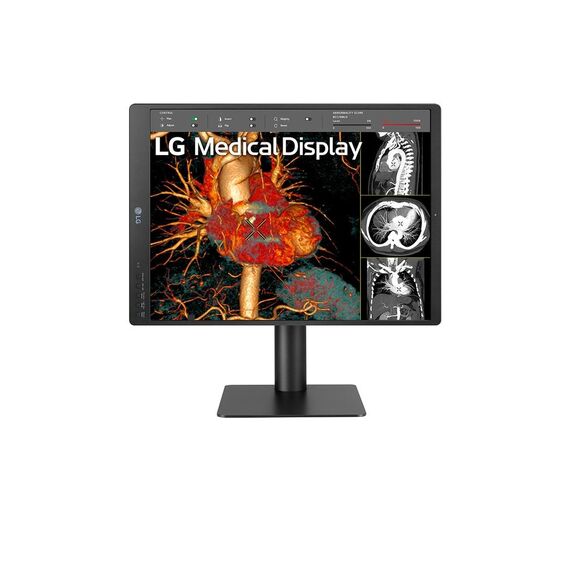

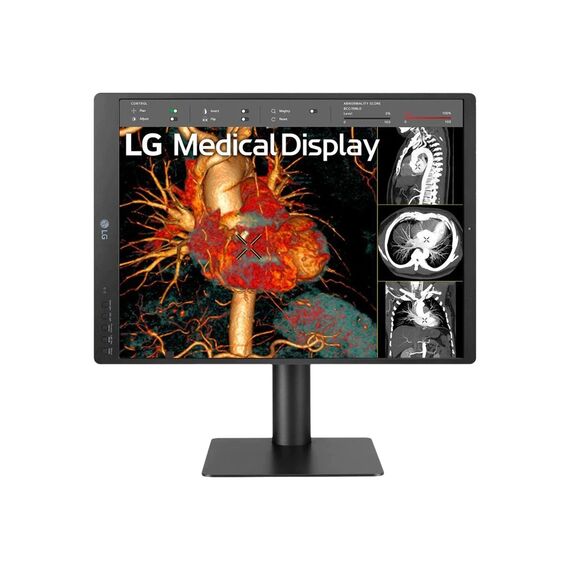

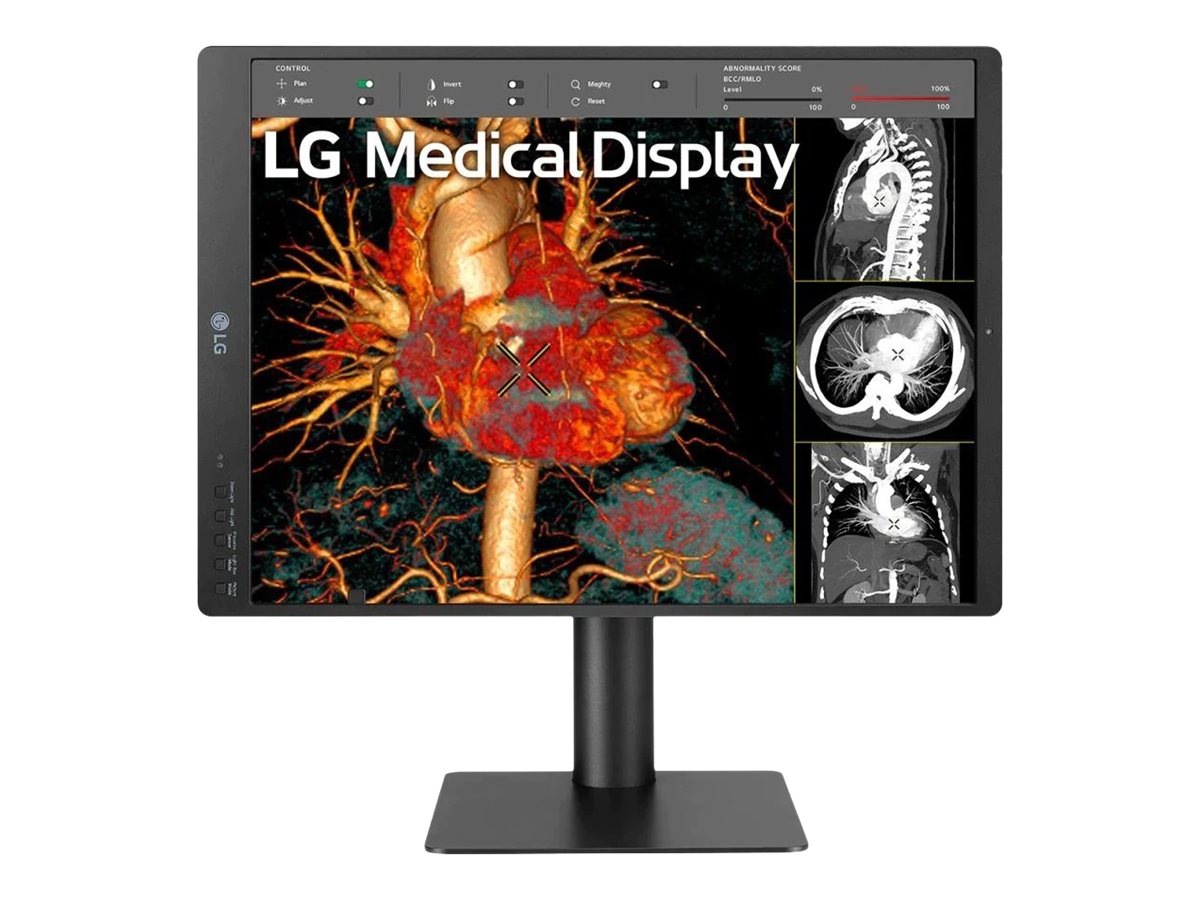

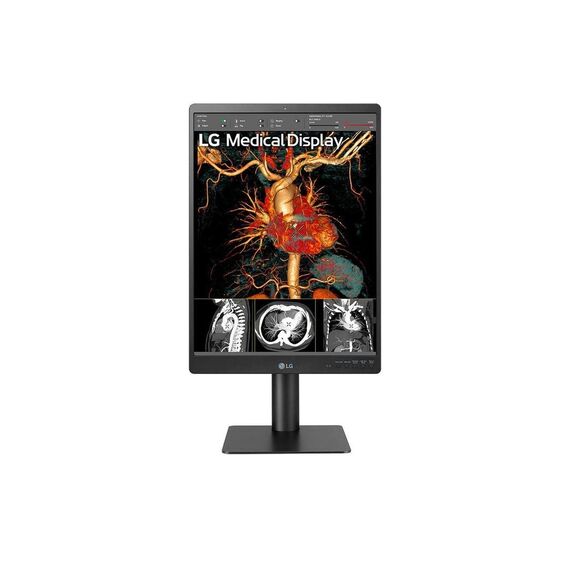

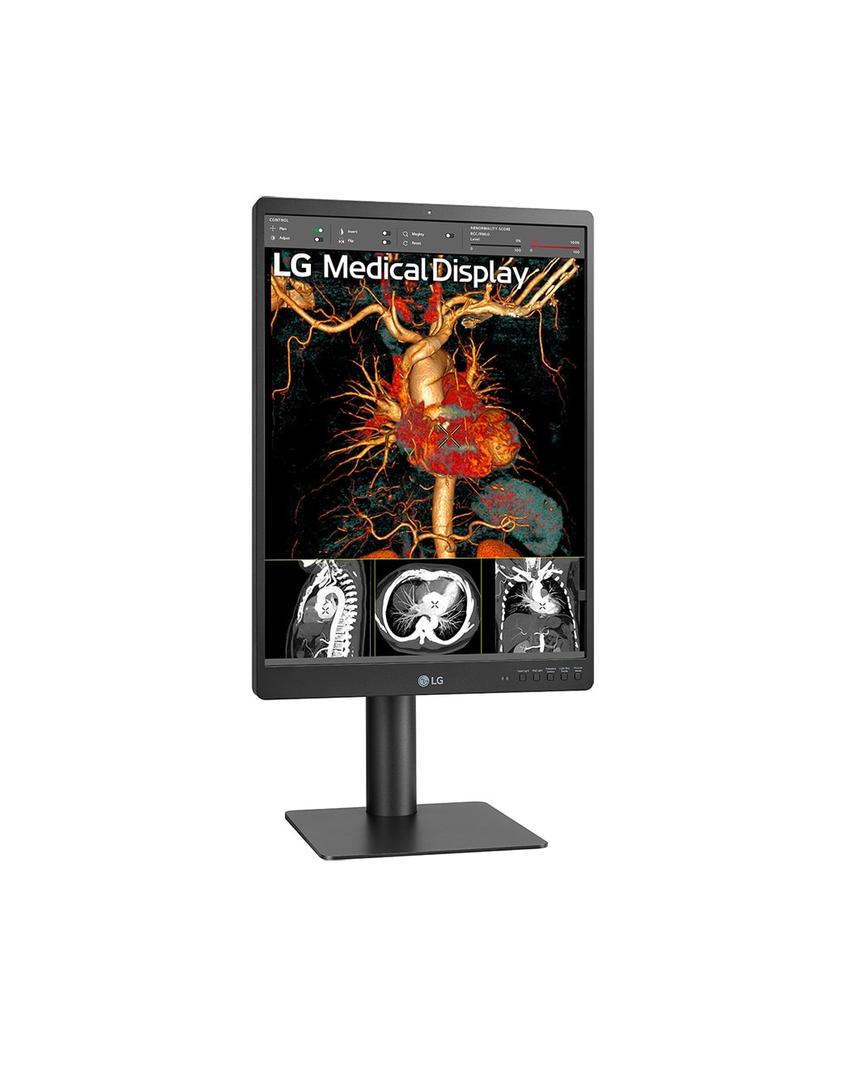

LG 21HQ513D-B / LED monitor Medical / 3MP / colour / 21.3" / 2048 x 1536 @ 60 Hz / IPS / 1100 cd/m² / 1800:1 / 5 ms / DVI-D, 2xDisplayPort / black | 21HQ513D-B
Please sign in so that we can notify you about a reply
Product Features
- Manage effortless quality control
The Integrated Front Sensor allows easy calibration without the need for additional measuring equipment. It improves the quality and consistency of medical images that are displayed by maintaining accurate values. - Compatible with various devices
Diagnostic monitors often need to be connected to various modalities, all with differing resolutions. Thanks to 21HQ513D's Multi-resolution Mode, you can adjust the resolution of monitor to optimize to the connected device. - True-to-life color reproduction
In Pathology Mode, the 21HQ513D reproduces the same level of detail and color accuracy as seen directly under a microscope, to help healthcare professionals make more accurate diagnoses. - Hassle-free savings and stronger security
Thanks to the Presence Sensor of 21HQ513D which automatically turns off the display when no motion is detected, you can save energy and be more secure against exposing patient information and other sensitive data. - Fully focus on the region of interest
LG 21HQ513D includes the Focus View Mode which allows you to review a specific part of the medical image more closely. This allows professionals to focus fully on the region of interest of the image for a more accurate and efficient diagnosis. - Ideal diagnostic workspace

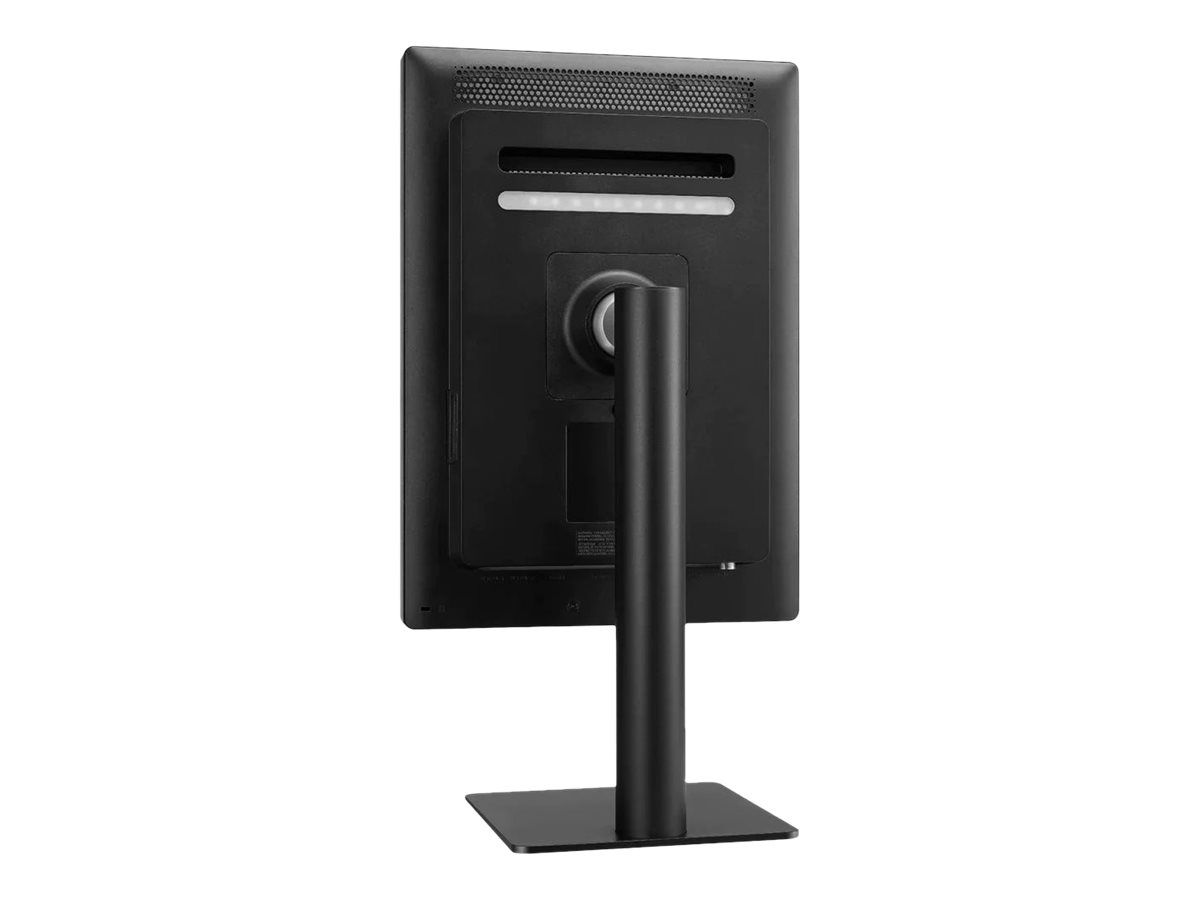

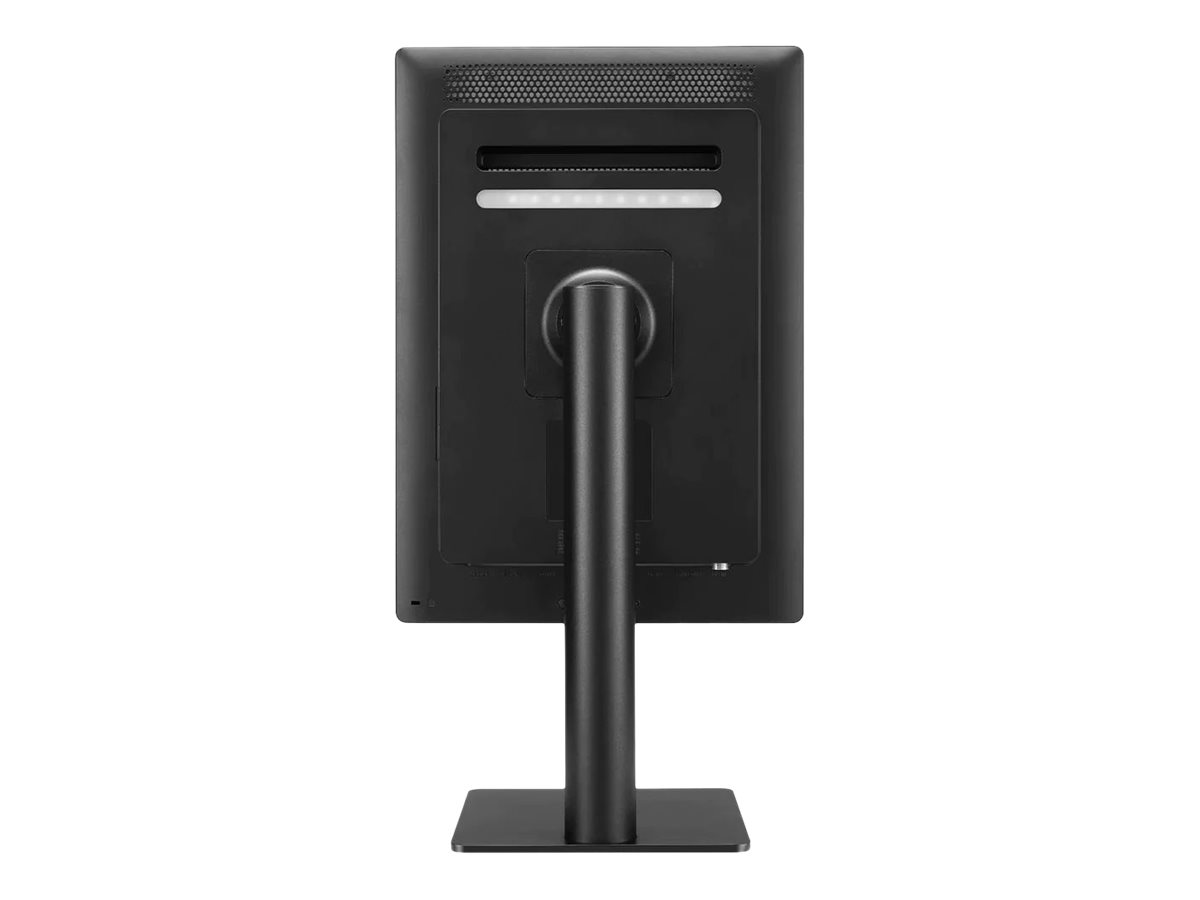

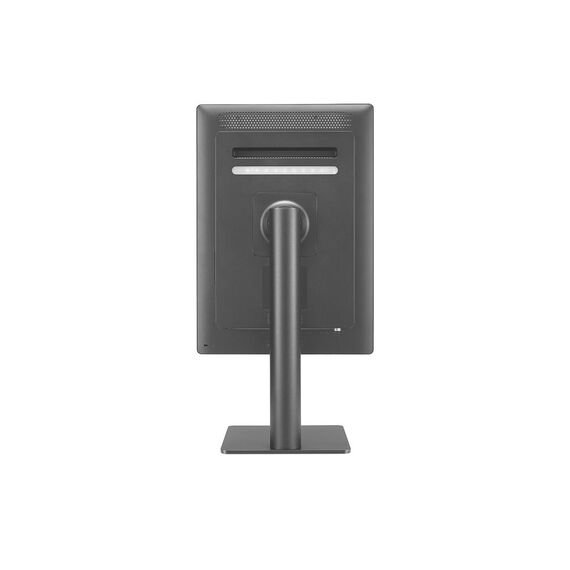

Down and Wall Lighting Modes reduce the contrast between the monitor brightness and ambient lighting conditions, allowing you to work comfortably without having to adjust the lighting to view paper documents in the darkroom. - Intuitive control
The 21HQ513D's 5 Hot Keys make changing between screen modes easier and more intuitive than operation through an OnScreen menu. The 5 Hot Keys are much faster and easier to operate while working, allowing you to change mode and lighting settings all without disrupting your workflow. - Reducing eye strain
LG 21HQ513D features an Auto Luminance Sensor which automatically adjusts screen brightness according to the ambient lighting conditions. As a result, eye strain is reduced by ensuring screen brightness is always set to the optimal level. - Reducing clutter on your desk and simplifying cable management

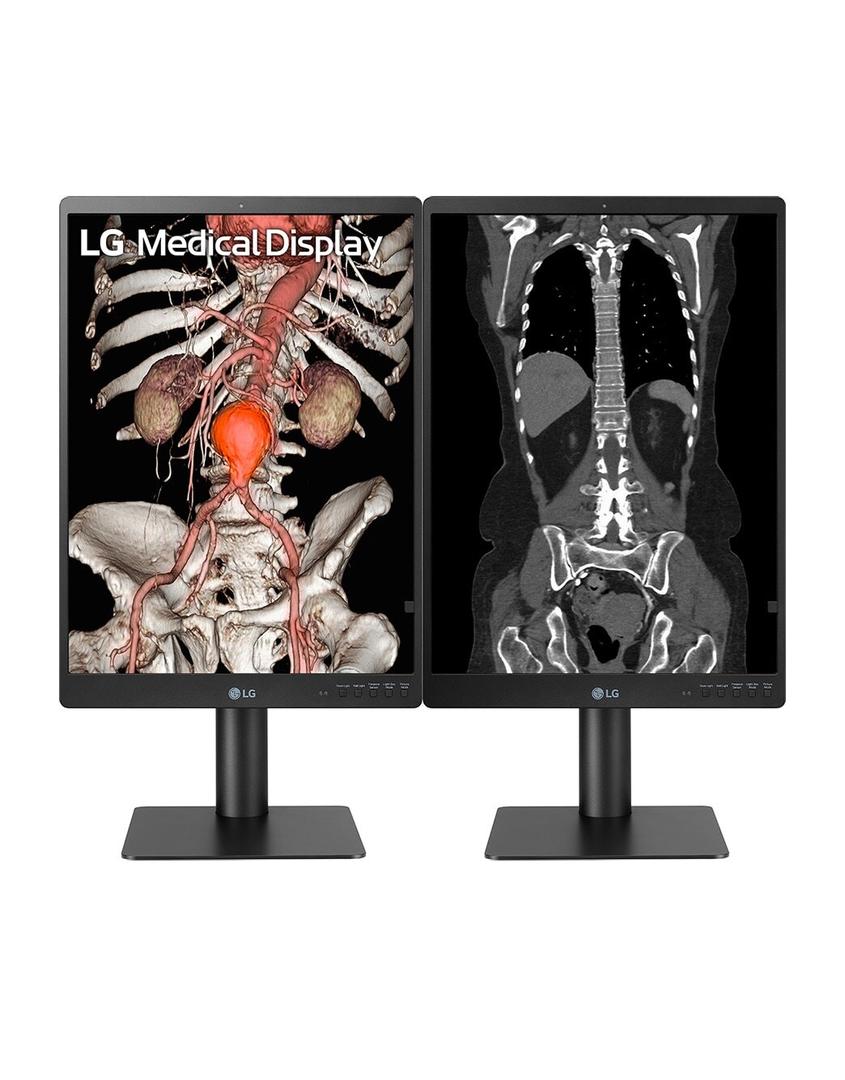

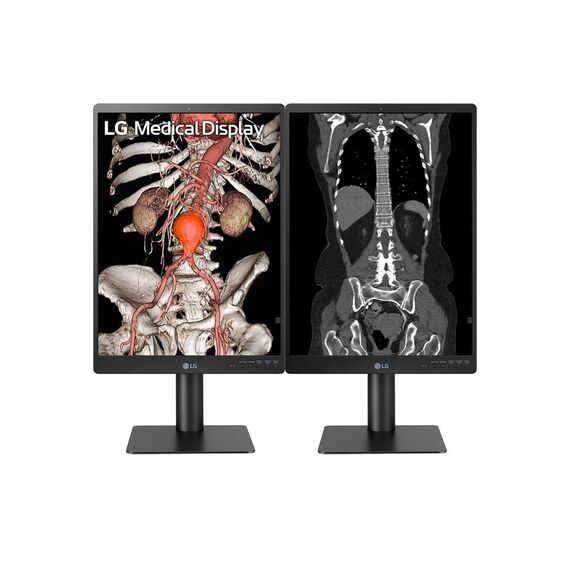

The 21HQ513D with 2 USB 3.0 upstream ports and DisplayPort support daisy chain setup. So you can establish a productive workstation by connecting two diagnostic monitors and a PC. - Easy and comfortable workspace
The 21HQ513D is designed to be adjustable for the posture of healthcare professionals' image review. So, it helps review medical images more comfortable reducing chronic pain caused by long hours of work.
Special Features
- 3MP IPS display
- 1100 cd/m²
- Pathology Mode, Focus View Mode
- Lighting (down/wall lighting)
- Ergonomic design
Product Specification
| Display Type | LED-backlit LCD monitor / TFT active matrix - 3MP - colour |
| Diagonal Size | 21.3" |
| Built-in Devices | USB 3.0 hub |
| Panel Type | IPS |
| Aspect Ratio | 4:3 |
| Native Resolution | 2048 x 1536 at 60 Hz |
| Pixel Pitch | 0.2115 mm |
| Brightness | 1100 cd/m² |
| Contrast Ratio | 1800:1 |
| Colour Gamut | 72% NTSC (CIE 1931) |
| Response Time | 5 ms (grey-to-grey) |
| Horizontal Viewing Angle | 178 |
| Vertical Viewing Angle | 178 |
| Screen Coating | Anti-glare, 2H Hard Coating |
| Backlight Technology | WLED |
| OSD Languages | Danish, German, French, Italian, Portuguese, Polish, Finnish, Swedish, Russian, Spanish, Greek, Japanese, Chinese, Korean, UK English |
| Features | Auto Brightness Control, SUPER + Resolution, Multiscan Support, Integrated Front Sensor, daisy chain compatible, Flicker Safe, Reader Mode, Factory Calibration, Smart Energy Saving technology, Hardware Calibration Ready, presence sensor, Black Level, Brightness Stabilization, Self-calibration, Light Box Mode, pathology mode, focus view mode, multi-resolution mode, wall lighting, downward lighting, 5 keyboard shortcuts |
| Colour | Black |
| Dimensions (WxDxH) | 34.31 cm x 23.46 cm x 64 cm - with stand |
| Weight | 7 kg |
| Connectivity | Connectivity |

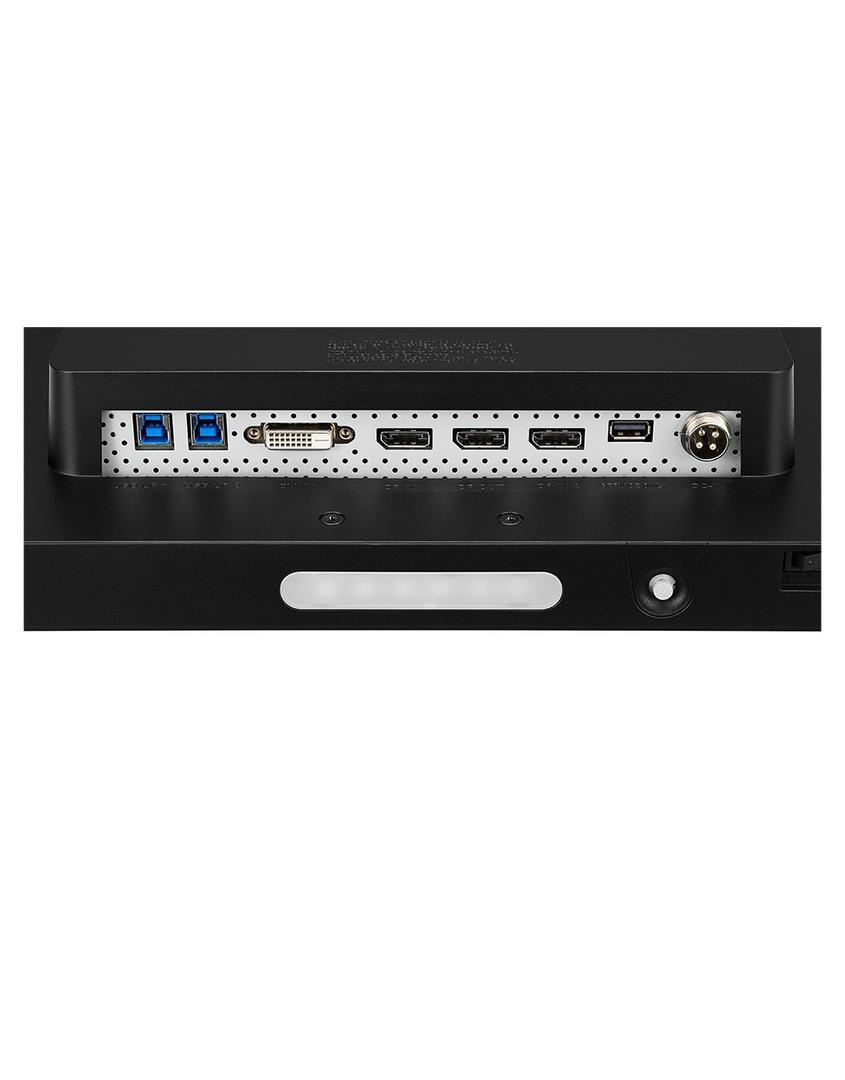

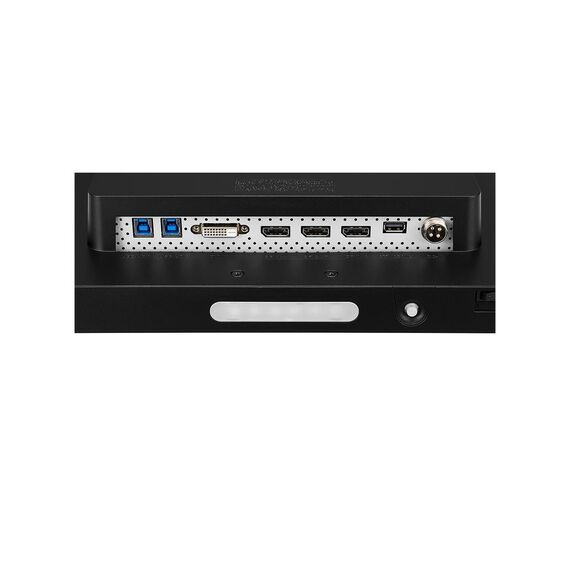

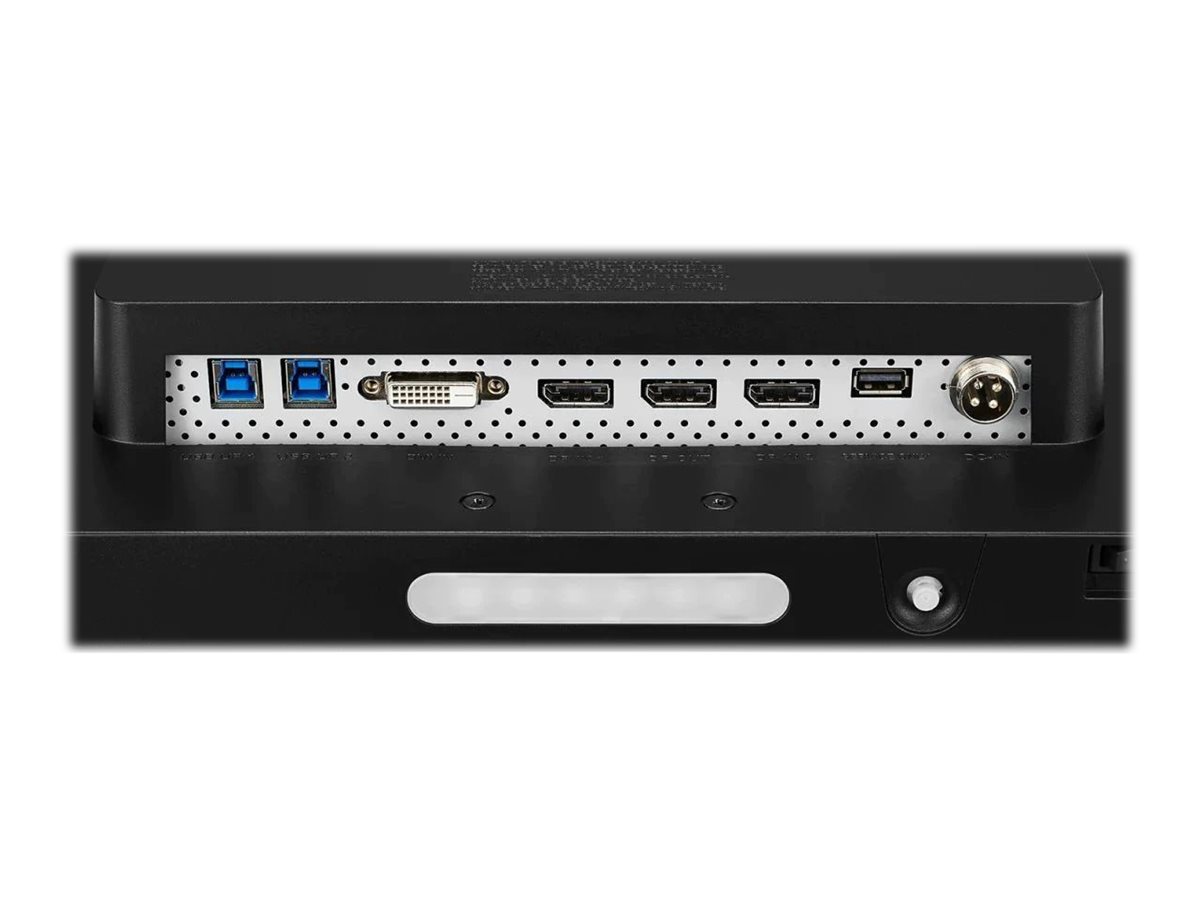

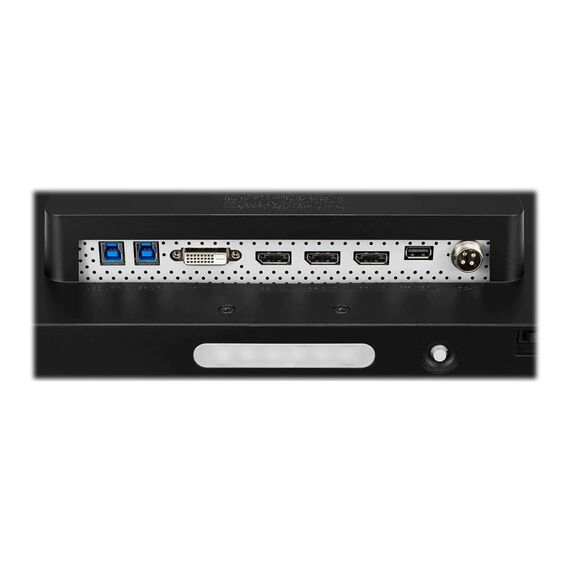

| Interfaces | DVI-D ¦ 2 x DisplayPort 1.4 ¦ DisplayPort 1.2 output ¦ 2 x USB 3.0 downstream ¦ 2 x USB 3.0 upstream (Type B) |
| Mechanical | Mechanical |

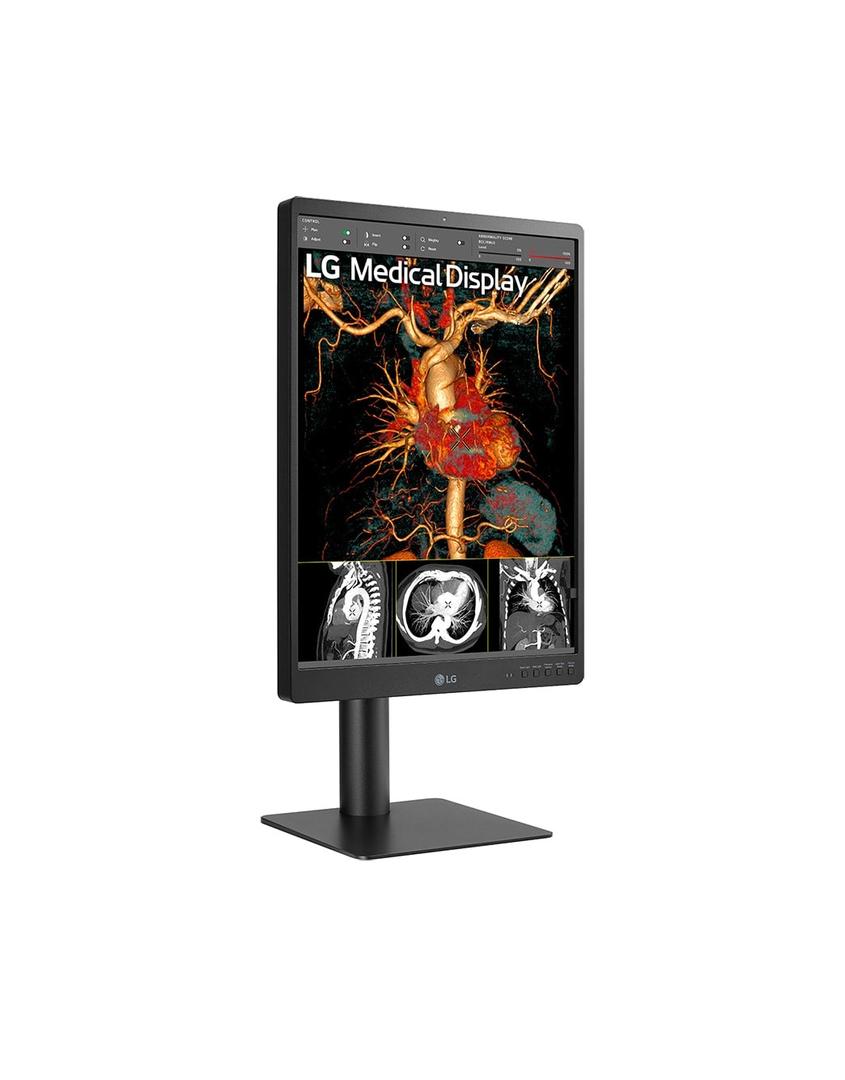

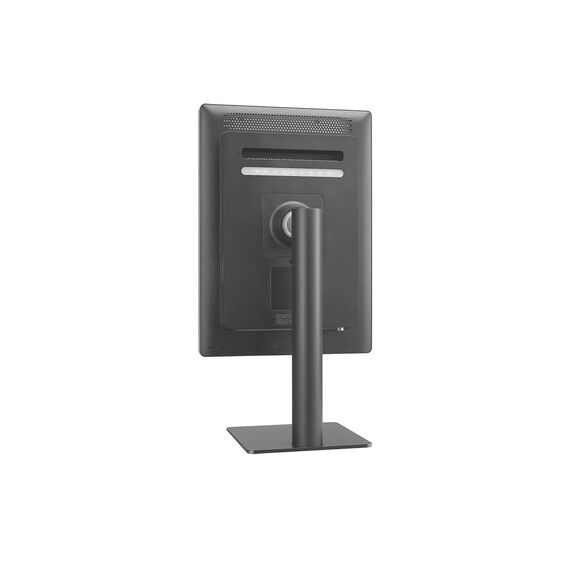

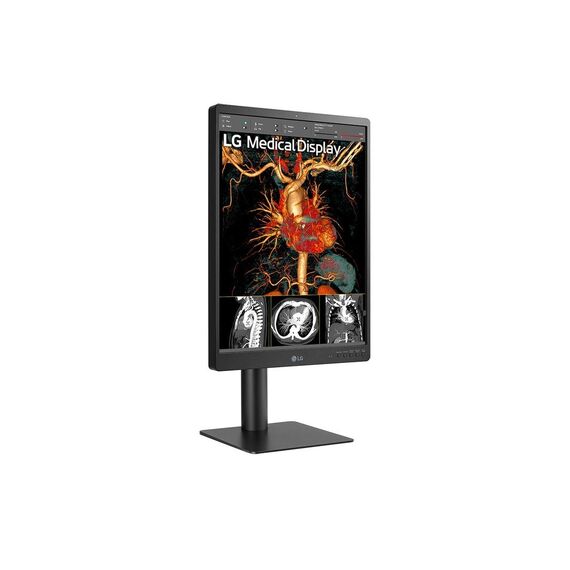

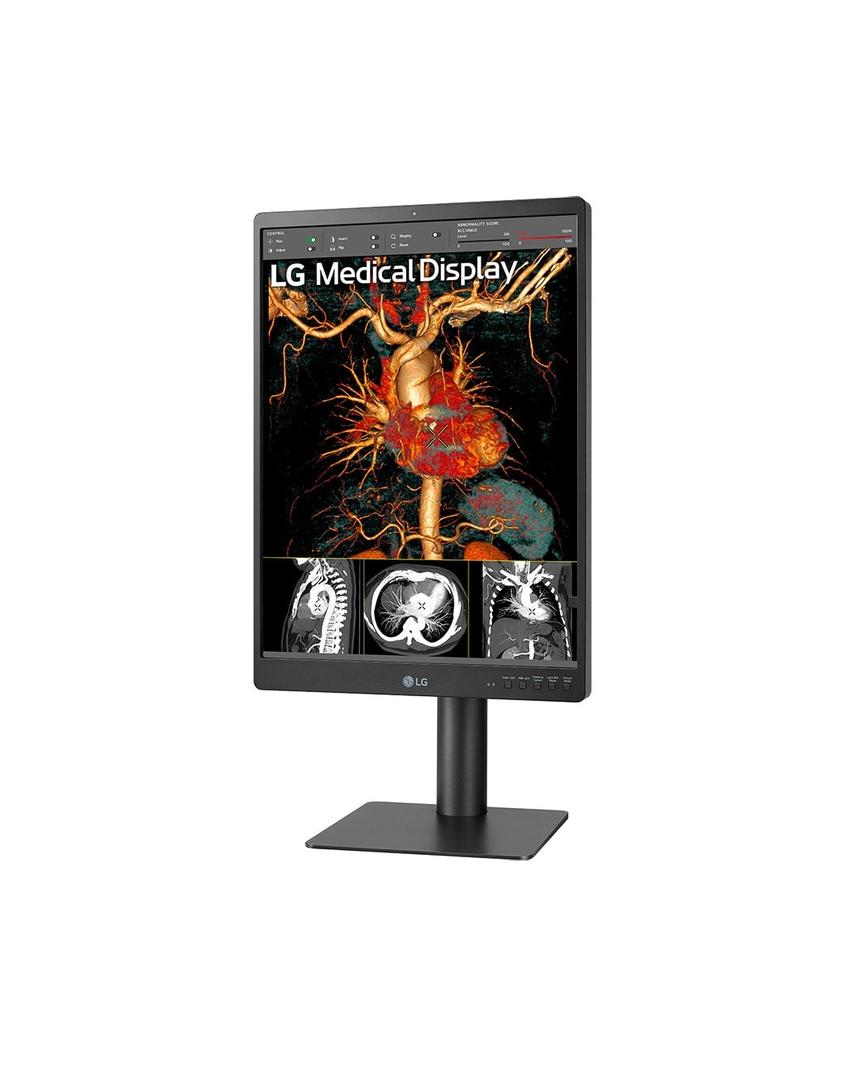

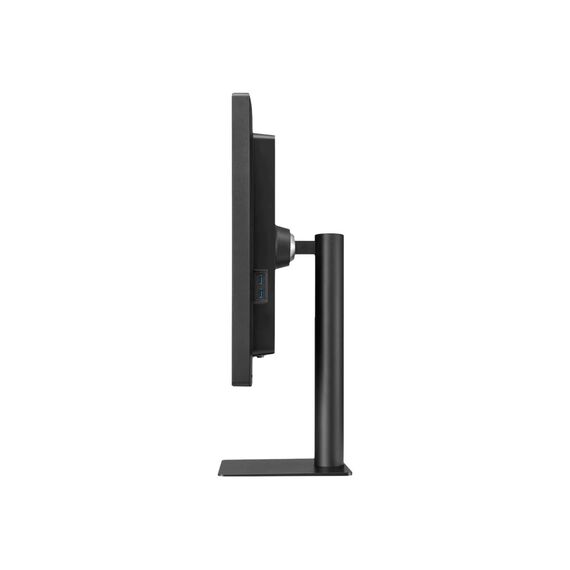

| Display Position Adjustments | Height, pivot (rotation), tilt |
| Tilt Angle | -5/+20 |

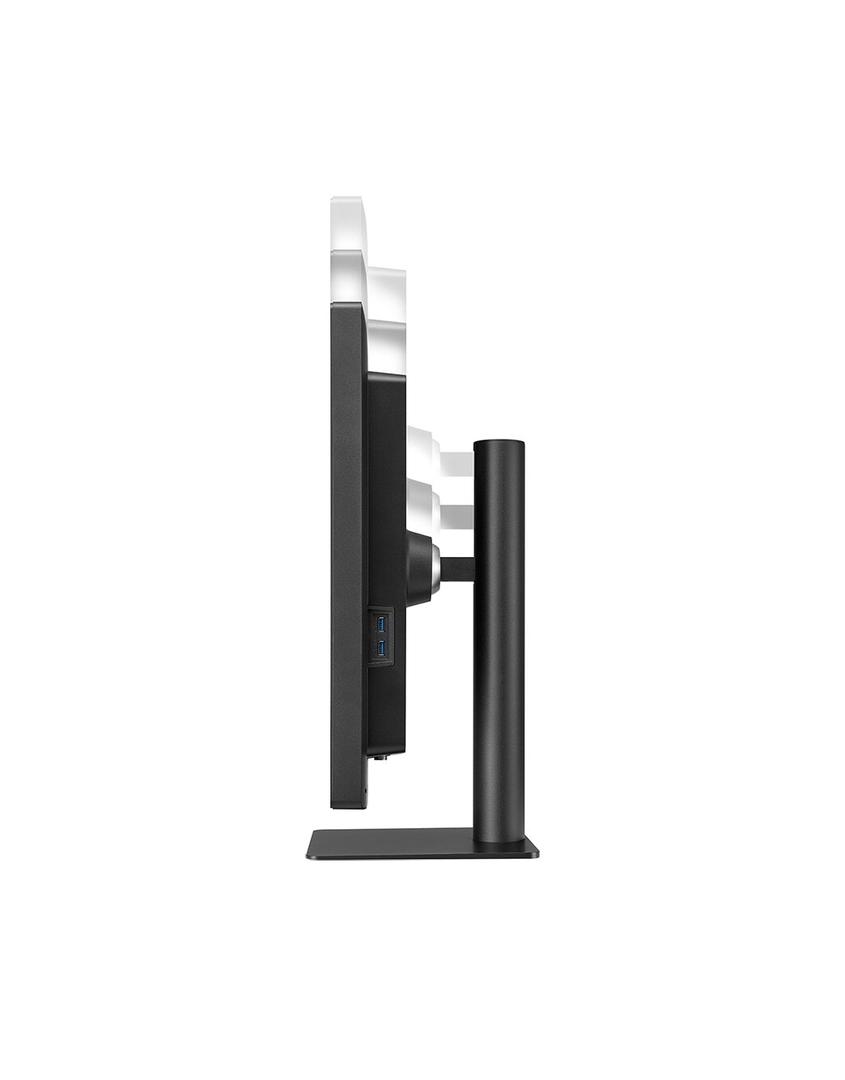

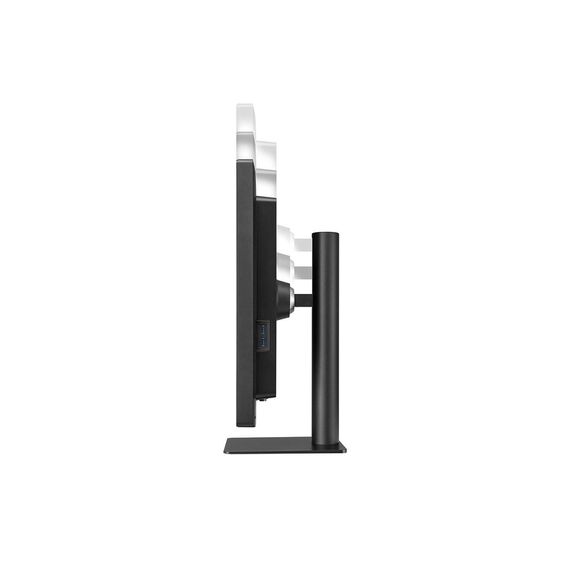

| Height Adjustment | 110 mm |
| Miscellaneous | Miscellaneous |
| Features | Security lock slot (cable lock sold separately) |
| Cables Included | 1 x DVI-D cable ¦ 1 x DisplayPort cable ¦ 1 x SuperSpeed USB cable |
| Compliant Standards | Plug and Play, cUL, EN55024, FCC, DDC/CI, RoHS, IEC 60950-1, EN 60950-1, WEEE, FCC Part 15 A, REACH, ISO 13485, IEC 60601-1, CAN/CSA C22.2 No. 60601-1, EN 55032, FDA Class II, MFDS, GMP, KGMP, ANSI, IEC 60601-1-1-2, EN 606011-1, EN 606601-1-2, IEC 55032, IEC 55024, AAMI ES60601-1 |
| Security Slot Type | Kensington security slot |
| Power | Power |
| Power Consumption (Max) | 120 Watt |
| Power Consumption (Off Mode) | 0.3 Watt |
| Software / System Requirements | Software / System Requirements |
| Included Software | Dual Controller Software, LG On-Screen Control, Qubyx |
| Dimensions & Weight | Dimensions & Weight |
| Dimensions & Weight Details | With stand - width: 34.31 cm - depth: 23.46 cm - height: 64 cm - weight: 7 kg ¦ Without stand - width: 34.31 cm - depth: 7.24 cm - height: 48.4 cm - weight: 5 kg |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 63.6 cm |
| Shipping Depth | 16.3 cm |
| Shipping Height | 55.1 cm |
| Shipping Weight | 9.5 kg |
