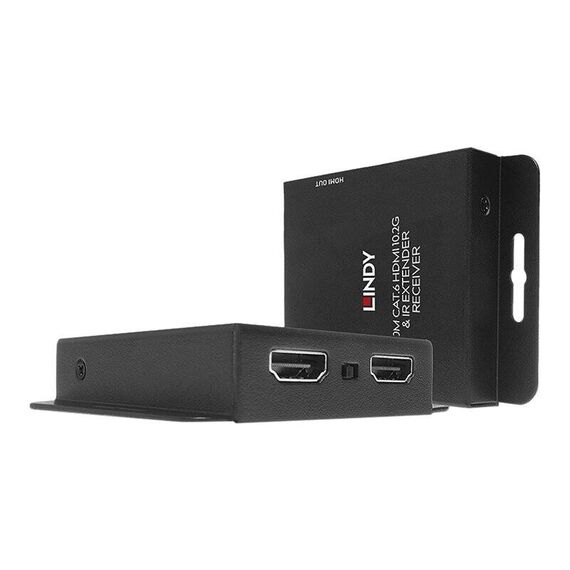

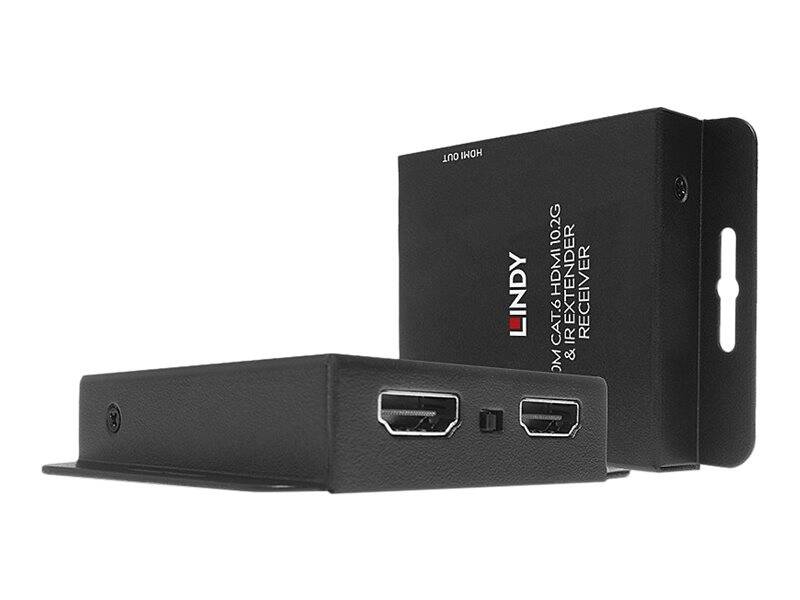

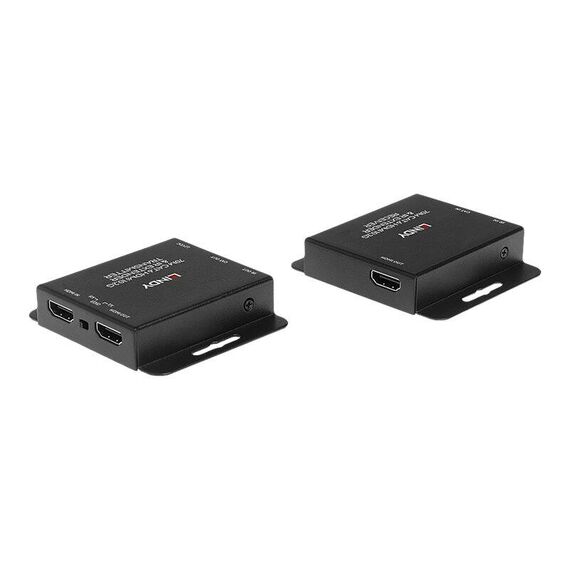

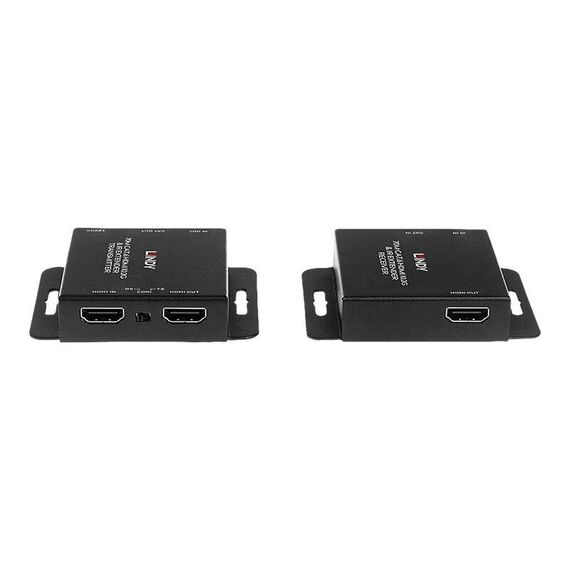

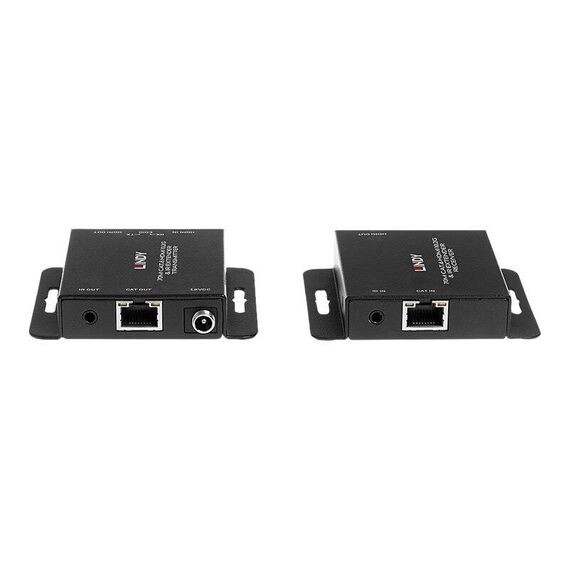

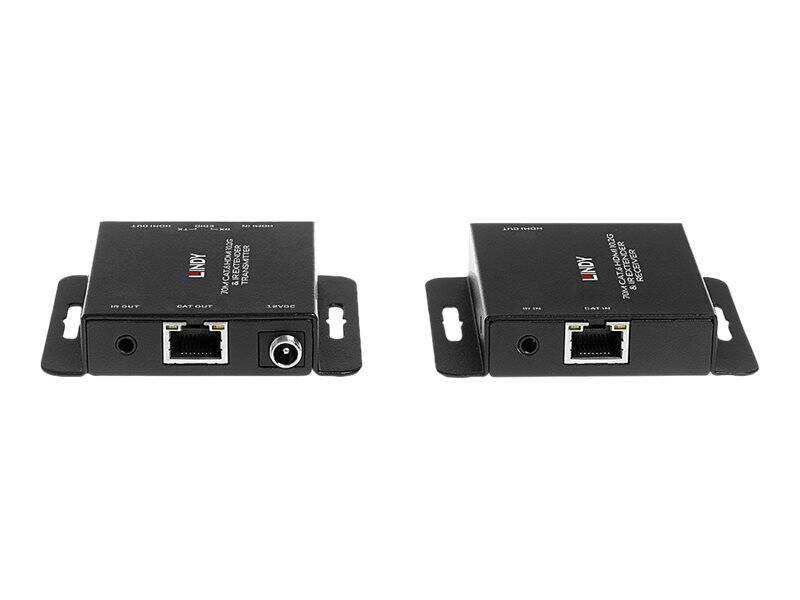

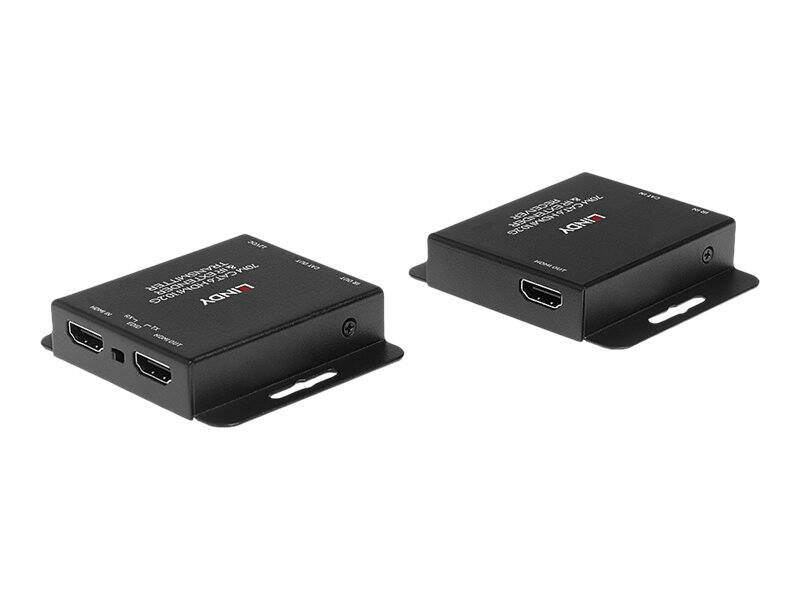

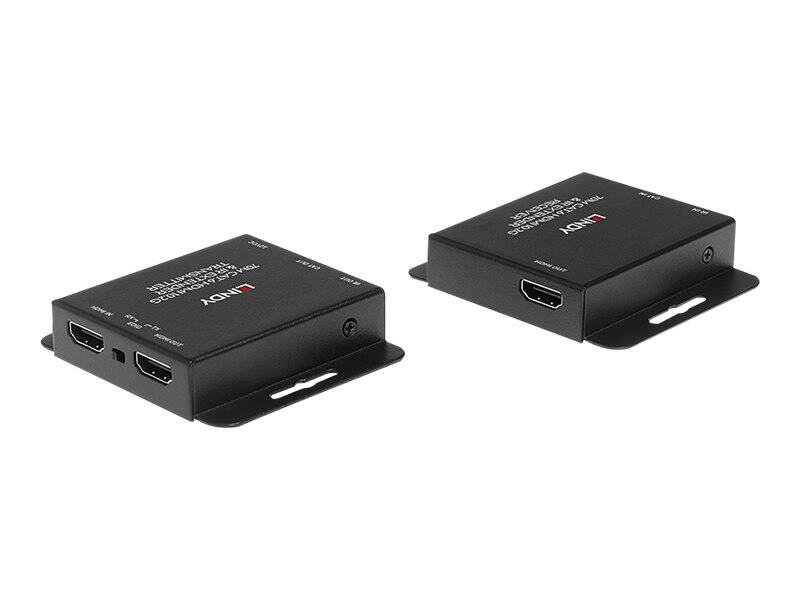

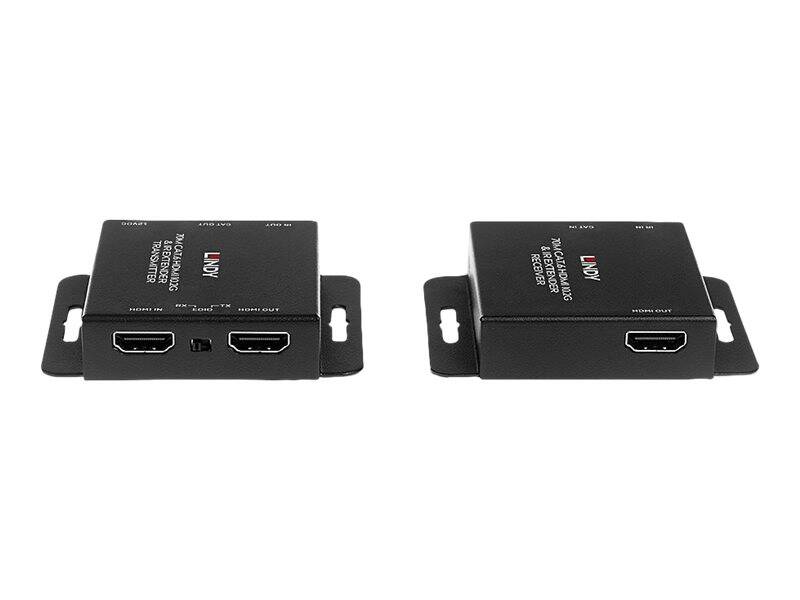

LINDY / Video/audio/infrared extender / up to 70 m | 38208
Please sign in so that we can notify you about a reply
Special Features
- Extends HDMI & IR Signals up to 70m using a single Cat.6 Cable
- Supports resolutions up to 3840x2160@30Hz 4:4:4 8bit
- Features a loop-through HDMI output on the Transmitter for local monitoring
- Supports power over Cat.6, only a single power supply is required
Product Specification
| Device Type | Video/audio/infrared extender |
| Form Factor | External |
| Colour | Black |
| Localisation | Australia, United Kingdom, United States, Europe |
| Networking | Networking |
| Connectivity Technology | Wired |
| Data Transfer Rate | 10.2 Gbps |
| Max Resolution | 3840 x 2160 @ 30 Hz |
| Max Transfer Distance | 70 m |
| Features | HDCP compliant, 7.1 channel audio support, EDID Pass-Through, metal housing, HDMI loop out |
| Compliant Standards | HDCP 1.4 |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x HDMI (transmitter output) - 19 pin HDMI Type A ¦ 1 x HDMI (transmitter input) - 19 pin HDMI Type A ¦ 1 x IR (transmitter) ¦ 1 x HDMI (receiver output) - 19 pin HDMI Type A ¦ 1 x IR (receiver) |
| Miscellaneous | Miscellaneous |
| Included Accessories | IR receiver, IR transmitter |
| Compliant Standards | FCC, RoHS, REACH, CP65, EDID compatible |
| Power | Power |
| Power Over Ethernet (PoE) | PoC |
| Power Device | External power adapter |
| Dimensions & Weight | Dimensions & Weight |
| Dimensions (WxDxH) / Weight Details | Transmitter: 7.95 cm x 6.9 cm x 1.65 cm / 130 g ¦ Receiver: 7.95 cm x 6.9 cm x 1.65 cm / 130 g |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 20 cm |
| Shipping Depth | 11.3 cm |
| Shipping Height | 7 cm |
| Shipping Weight | 414 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 20 - 90% (non-condensing) |
Features - Lindy - 38208
Length
>50m
More Details
Product Code
03:218246
EAN Code
4002888382083
Manufacturer
Lindy
