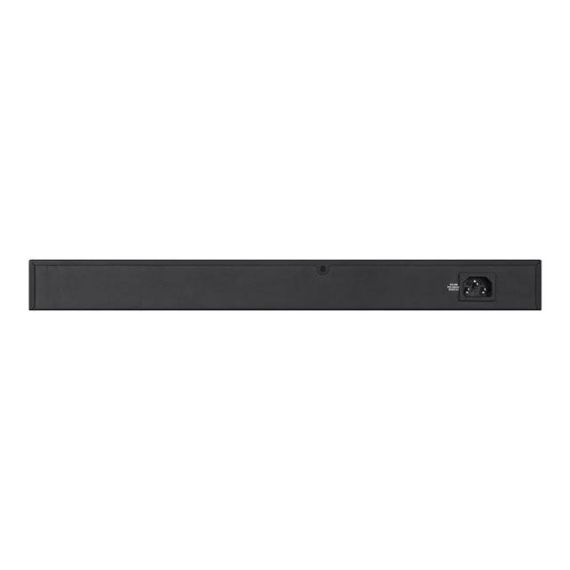

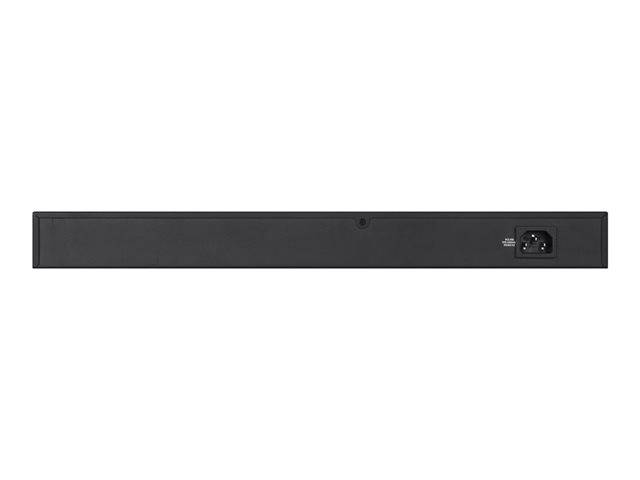

Linksys LGS552 / Switch / Managed / 48 x 10/100/1000 + 2 x combo Gigabit SFP + 2 x 10 Gigabit SFP+ / rack-mountable / AC 100/230 V | LGS552-EU
Linksys LGS552 / Switch / Managed / 48 x 10/100/1000 + 2 x combo Gigabit SFP + 2 x 10 Gigabit SFP+ / rack-mountable / AC 100/230 V | LGS552-EU
Description Control and manage your business network with advanced features including layer 2 switching and layer 3 static routing between different VLAN communications without any performance degradation. As a result your network can run more efficiently, as Linksys 500 Series switches will manage internal routing with your router and dedicate fixed paths with external traffic and security. Deliver superior communication via video, voice and data applications over your business network with advanced QoS features. Layer 2 MAC and layer 3 IP flow-based policies and rate limiting control prioritize traffic, offering an ideal solution to manage and control real-time, high bandwidth, voice and video traffic without slowing down your other business applications. Special Features
Product features
|
Product Specification
Device Type | Switch - 52 ports - Managed |
Enclosure Type | Rack-mountable 1U |
Subtype | Gigabit Ethernet |
Ports | 48 x 10/100/1000 + 2 x combo Gigabit SFP + 2 x 10 Gigabit SFP+ |
Performance | Forwarding performance: 104.16 Mpps ¦ Switching capacity: 140 Gbps |
Capacity | Active VLANs: 1000 ¦ QoS hardware entries: 4 |
MAC Address Table Size | 16K entries |
Jumbo Frame Support | 9000 bytes |
Routing Protocol | IGMPv2, IGMP, IGMPv3 |
Remote Management Protocol | SNMP 1, RMON, Telnet, SNMP 2c, HTTP, HTTPS, TFTP |
Authentication Method | RADIUS |
Features | DHCP support, ARP support, IGMP snooping, Syslog support, port mirroring, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), STP Root Guard, DHCP relay, Link Aggregation Control Protocol (LACP), DHCP client, static routing, Class of Service (CoS), 802.1x authentication |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3az |
RAM | 128 MB |
Status Indicators | System, link/activity |
Interfaces | 48 x 1000Base-T - RJ-45 ¦ 2 x 1000Base-T - RJ-45 ¦ 2 x 1000Base-X - SFP ¦ 2 x 10GBase-X - SFP+ |
Power Device | Internal power supply |
Voltage Required | AC 100/230 V (50 - 60 Hz) |
Localisation | Europe |
Width | 44 cm |
Depth | 35 cm |
Height | 4.445 cm |
Weight | 4.18 kg |
Service & Support | Limited warranty - lifetime |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 50 °C |
Humidity Range Operating | 10 - 90% |
Min Storage Temperature | -20 °C |
Max Storage Temperature | 70 °C |
Humidity Range Storage | 10 - 90% (non-condensing) |
