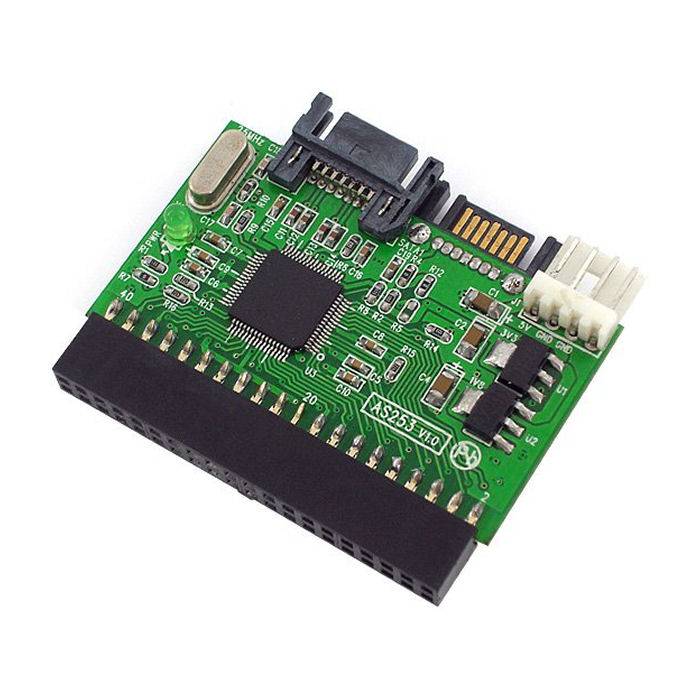

LogiLink Adapter IDE ATAPI interface to SATA / Storage controller / SATA 3Gb/s / ATA | AD0006A

Description

The Serial ATA physical, link, and transport layers are compliant to Serial ATA 1.0 up to a 1.5GHz data rate, and scalable to 3.0 GHz data rate by directly doubling the internal clock source. The application layer supports both Hard Disk Drive and ATAPI Optical Storage such as CR-ROM, CD-RW, DVD-ROM, DVD-RW, etc. The Serial ATA and the Parallel ATA application layer support both host and device operation and can be configured through.

Special Features

Serial ATA 1.0 specification compliant
Automatic Serial ATA 3.0/1.5 Gbps speed negotiation
ATA/ATAPI PIO mode 0 to 4
ATA/ATAPI Ultra DMA of transfer rate 16.7/25/33/48/66/ 100/133/150MB/s
Support Serial ATA hot-plug
Ultra low power consumption
Work for both AC and DC couple between the transmitter and the receiver
Provide specified OOB signal detection and transmission
SATA II Asynchronous Signal Recovery support
Support Partial/Slumber power management
Master/Slave support

Product Specification

Device Type	Storage controller
Host Bus	ATA
Interface	SATA 3Gb/s
Supported Devices	Hard drive, CD drive, DVD drive
Interfaces	1 x ATA - 40 PIN IDC
Connections	1 storage - Serial ATA-150 - 7 pin Serial ATA

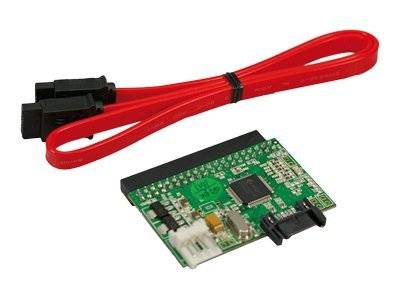

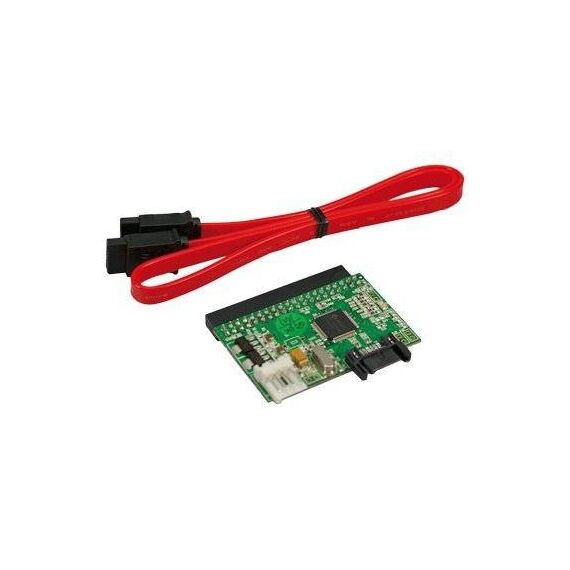

Cables Included	1 x Serial ATA cable - internal - 35 cm
Compliant Standards	RoHS
Min Operating Temperature	0 °C
Max Operating Temperature	70 °C
