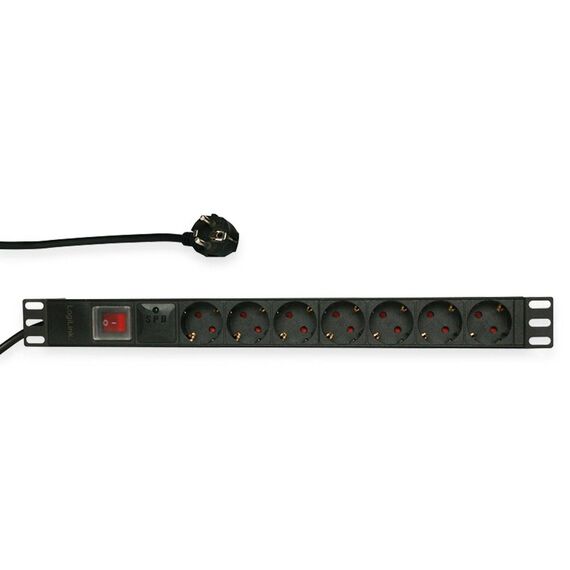

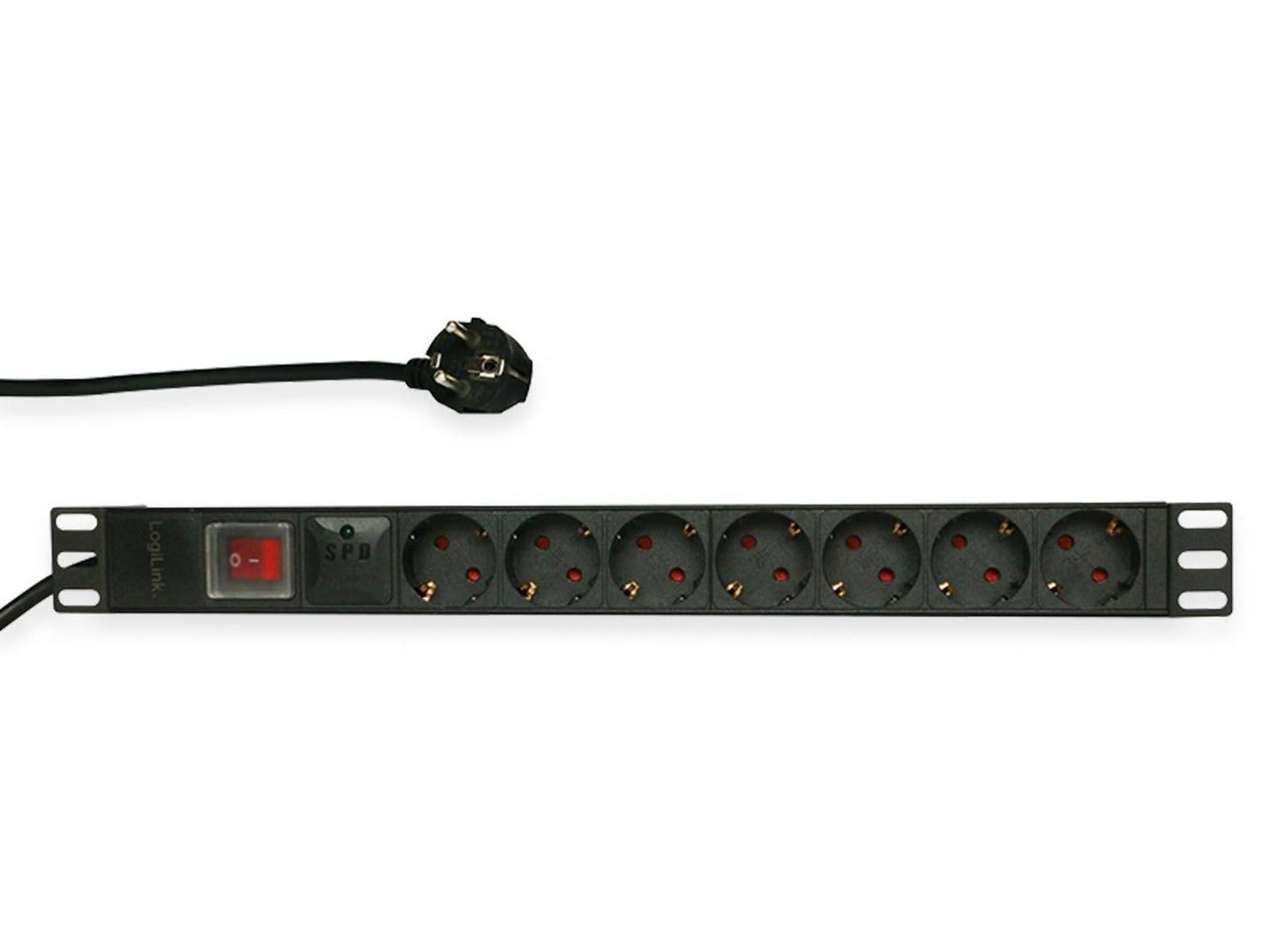

LogiLink / Power distribution unit (rack-mountable) / AC 250 V / 3500 Watt / input: CEE 7/7 / output connectors: 7 (power) / 1U / 19" / black, RAL 9005 | PDU7C01
Please sign in so that we can notify you about a reply
Special Features
- 19" PDU with on/off switch and surge protection
- Sockets: 7x DIN 49440, 45° angled, VDE06201 compliant
- 2m power cord H05VVF 3x1.5 mm² with CEE7/7 plug
Product Specification
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 1U |
| Rack Size | 19" |
| Colour | Black, RAL 9005 |
| Power Device | Power Device |
| Input Voltage | AC 250 V |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power CEE 7/7 |
| Power Output Connectors Details | 7 x power |
| Max Electric Current | 16 A |
| Power Capacity | 3500 Watt |
| Miscellaneous | Miscellaneous |
| Cables Included | Power cable - integrated - 2 m |
| Features | Fire resistant, on/off switch, metal housing, surge & inrush protection, left-angle outlets |
| Compliant Standards | RoHS, DIN 49440, VDE 0620-1 |
| Dimensions & Weight | Dimensions & Weight |
| Width | 48.2 cm |
| Depth | 4.4 cm |
| Height | 4.5 cm |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 51 cm |
| Shipping Depth | 14.5 cm |
| Shipping Height | 7 cm |
| Shipping Weight | 900 g |
Features - LogiLink - PDU7C01
More Details
Product Code
04:248174
EAN Code
4052792046595
Manufacturer
LogiLink
