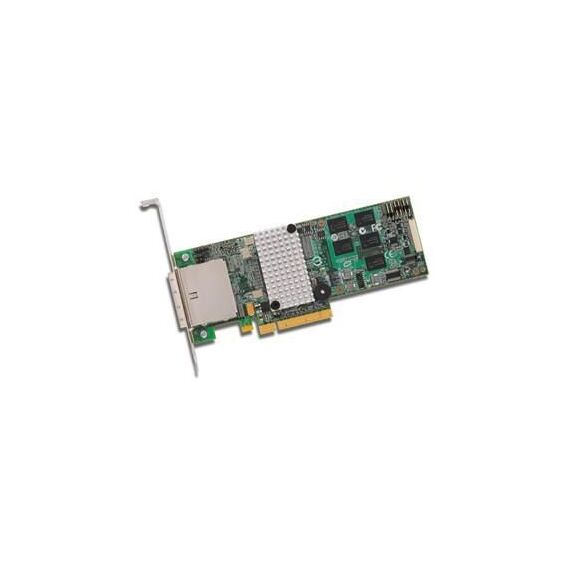

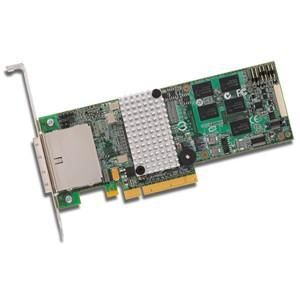

LSI MegaRAID SAS - Storage controller (RAID) - 8 Channel - SAS-2 low profile - 600 MBph - RAID 0, 1, 5, 6, 10, 50, 60

Fujitsu Technology Solutions S26361-F3554-L512 LSI MegaRAID SAS - Storage controller (RAID) - 8 Channel - SAS-2 low profile - 600 MBph - RAID 0, 1, 5, 6, 10, 50, 60

LSI MegaRAID SAS - Storage controller (RAID) - 8 Channel - SAS-2 low profile - 600 MBph - RAID 0, 1, 5, 6, 10, 50, 60

Today’s newest external enclosure designs are based on architectures that support both SATA and SAS drives. The MegaRAID® SAS 9280DE-8e, with eight external SATA+SAS ports, is ideal for configuring these external enclosures with your choice of high-performance SAS hard drives, high-capacity SATA hard drives or energy-efficient solid state drives (SSDs). With data transfer rates of up to 6Gb/s per port, the MegaRAID SAS 9280DE-8e bring users new features and improved performance, while continuing to support all the features of the previous 3Gb/s SATA+SAS generation. Using LSI™ SafeStore™ encryption services, including instant secure erase and local key management, this controller provides additional security against any unauthorized access or modification of a drive’s data, resulting from theft, loss, or repurposing of drives.

Features
- Eight external SATA+SAS ports;
- Two mini-SAS SFF-8088 x4 connectors;
- 6Gb/s throughput per port;
- LSISAS2108 RAID-on-Chip (ROC) 800MHz PowerPC®;
- Low-profile MD2 form factor (6.6” X 2.536”);
- x8 PCI Express® 2.0 host interface;
- 512MB DDRII cache (800MHz);
- Optional battery backup unit (direct attach);
- Connect up to 240 SATA and/or SAS devices;
- RAID levels 0, 1, 5 and 6;
- RAID spans 10, 50 and 60;
- Auto-resume on rebuild;
- Auto-resume on reconstruction;
- Online Capacity Expansion (OCE);
- Online RAID Level Migration (RLM);
- SafeStore Encryption Services, Instant secure erase, Local key management;
- SSD support with SSD Guard™;
- Global and dedicated hot spare with revertible hot spare support, Automatic rebuild, Enclosure affinity, Emergency SATA hot spare for SAS arrays;
- Single controller multipathing (failover);
- I/O load balancing;
- Comprehensive RAID management suite.

Benefits

Superior performance:
- Maximum reads: 2,875MB/s;
- Maximum writes: 1,850MB/s.

- PCI Express 2.0 provides faster signaling for high-bandwidth applications;
- Support for 3Gb/s and 6Gb/s SATA and SAS hard drives;
- Ideal for external subsystems using large numbers of SATA or SAS drives;
- SafeStore Encryption Services for more secure data protection;
- Low-profile MD2 form factor for space-limited 1U and 2U environments.

Connectivity Host interface PCIe Ports quantity 8 Interface SATA-300/SAS System requirements Platform PC Compatible operating systems Windows Server 2003/2008/XP/Vista/7 Linux

Technical details Mac compatibility No RAID levels 0/1/5/6/10/50/60 Data transfer rate 6 Gbit/s Cache internal 512 MB
