Matrox M9128 LP - PCI Express x16 low profile - 1 GB DDR2 - DisplayPort

380.35  inc. VAT
Out of stock

We (Singular Computer Systems LTD) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to [email protected]

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Add to wish list Ask a question
Product Code5470377 EAN Code0790750240275 ManufacturerMatrox
Find similar
Payment options

Matrox M9128-E1024LAF Matrox M9128 LP - PCI Express x16 low profile - 1 GB DDR2 - DisplayPort

Matrox M9128 LP - PCI Express x16 low profile - 1 GB DDR2 - DisplayPort

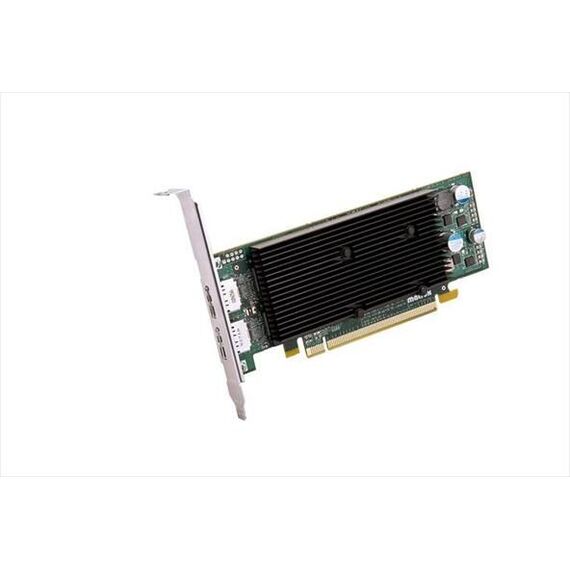

Matrox M9128 LP PCIe x16

The Matrox M9128 LP PCIe x16 dual monitor graphics card renders pristine image quality on up to two DisplayPort monitors at resolutions up to 2560 x 1600 per output. With 1 GB of memory and advanced desktop management features, the M9128 LP PCIe x16 card supports both independent or stretched desktop modes and is the economical choice to drive business, industrial, and government applications with extraordinary performance. Its low-profile form factor makes it easy to integrate into a wide variety of systems. It offers multiple operating system support, and can be paired with another M-Series card for additional monitor support.


* High-resolution two DisplayPort monitor support
Support resolutions up to 2560 x 1600 per output
* Native PCI Express x16 performance
Maximum bandwidth to ensure best performance
* 1 GB of memory
For enhanced performance in demanding multi-monitor applications
* Low-profile form factor
To fit in a wide variety of systems; includes bracket for full-height ATX form factor
* Passive cooling and low power consumption
Fanless design eliminates noise and increases product reliability
* Stretched and independent desktop modes
Expand your desktop across multiple monitors or set each monitor independent of each other
* M-Series multi-card support1
Add multiple Matrox M-Series cards into the same system to drive more monitors
* Joined graphics card mode1
Insert two M-Series cards into the same system to drive even more monitors across a stretched desktop
* Matrox Clone
View a copy of one display on the other displays
* Wide enterprise flexibility
Unified driver package compatible with other Matrox products
* Matrox PowerDesk software
Easily configure and manage program windows on multiple monitors
* Multiple operating system support
Display drivers for Windows® 7 (32/64 bit), Windows Vista (32/64 bit), Windows XP (32/64 bit), Windows Server 2003/2008 (32/64 bit), and Linux

Hardware Included

* Matrox M9128 LP PCIe x16 graphics card with factory-installed ATX bracket (low-profile bracket in the box)

Software Included

* CD with link to latest Matrox display drivers and PowerDesk desktop management software
* Download Matrox Remote PowerDesk software for thin computing

1 Operating system, hardware and driver compatibility need to be verified for large monitor
configuration arrays. Not supported with M9188. Contact Matrox for details.
Maximum graphic adapter memory 1024 MB
Graphics adapter memory type DDR2-SDRAM
Memory bus 128 bit
Graphics adapter family Matrox
Graphic processor M-Series
Graphics controller M-Series
Interface type PCI Express x16
DisplayPorts quantity Yes
I/O ports On-board Connectors:
2 x DisplayPort
DirectX version No
OpenGL version 2.0
Form factor LP
System requirements
Mac compatibility No
System requirements
Compatible operating systems Microsoft® Windows® 7 (32/64bit)*,
Microsoft® Windows® XP (32/64bit),
Microsoft® Windows® Vista (32/64bit)*,
Microsoft® Windows® Server 2003/2008
* see Website for details
Maximum resolution 2560 x 1600 pixels
Maximum displays per videocard 2
Technical details
Cooling type Passive
Number of processors installed 1 pcs
Chassis type Low-Profile
Certification EMC Certifications: Class B
ROHS & WEEE compliant

Matrox M9128 LP - PCI Express x16 low profile - 1 GB DDR2 - DisplayPort

Features - Matrox - M9128-E1024LAF

More Details
Product Code
EAN Code
Find similar
