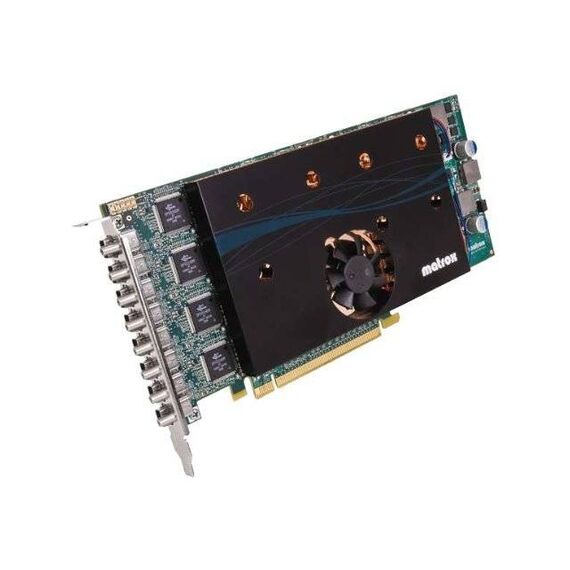

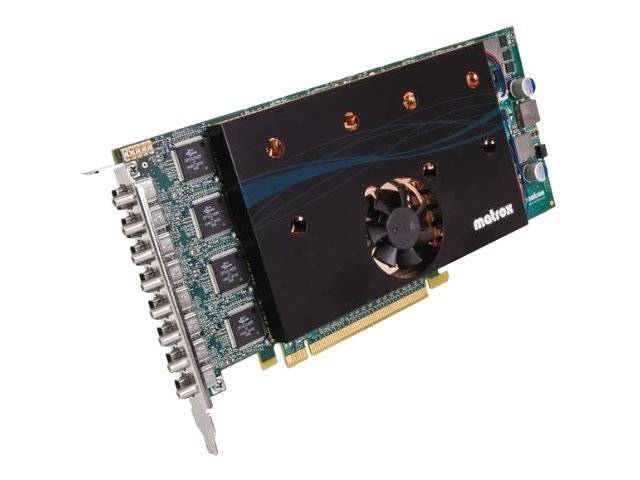

Matrox M9188 / Graphics card / M9188 / 2 GB DDR2 / PCIe x16 / 8 x Mini DisplayPort | M9188-E2048F

(2,775.26 inc. VAT)
Availability: 1 item(s)
Standard DeliveryStandard delivery within 4 to 8 business days.
Find similar
Payment options
Product Code04:124173 EAN Code0790750240268 ManufacturerMatrox

Matrox M9188 / Graphics card / M9188 / 2 GB DDR2 / PCIe x16 / 8 x Mini DisplayPort | M9188-E2048F


The Matrox M9188 PCIe x16 multi-display Octal graphics card addresses the need to visualize large amounts of data at once in order to effectively make decisions. The latest offering from the M-Series family is the world's first single-slot PCIe x16 octal card, featuring the ability to support both DisplayPort and DVI Single-Link outputs to ensure wide compatibility with today's monitors. With 2 GB of memory and advanced desktop management features, such as independent or stretched desktop modes, the M9188 drives energy, transportation, process control, financial trading, and other mission-critical environments with extraordinary performance.

Special Features

  • High-resolution eight DisplayPort or DVI monitor support
  • Native PCI Express (PCIe) x16 performance
  • ATX form factor
  • Stretched and independent desktop modes
  • M-Series multi-card support
  • Joined graphics card mode
  • Matrox clone
  • Wide enterprise flexibility
  • Multiple operating system support

Product features

  • Stretched and independent desktop modes
    Expand your desktop across multiple monitors or set each monitor independent of each other.
  • Joined graphics card mode
    Insert two M-Series cards into the same system to drive even more monitors across a stretched desktop.
  • Matrox clone
    View a copy of one display on the other displays.
  • Wide enterprise flexibility
    Unified driver package compatible with other Matrox products!

Product Specification

Device Type Graphics card
Bus Type PCI Express x16
Graphics Engine Matrox M9188
Max Resolution 2560 x 1600
Max Monitors Supported 8
Interfaces 8 x Mini DisplayPort ¦ 8 x DisplayPort - with adapter ¦ 8 x DVI-D (dual link) - with adapter
API Supported OpenGL 2.0
Size 2 GB
Technology DDR2 SDRAM
OS Required Linux, Microsoft Windows Server 2003, Microsoft Windows Vista (32/64 bits), Microsoft Windows Embedded Standard 7, Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Windows 8 (32/64 bits), Microsoft Windows Server 2008 R2 (32/64-bits), Microsoft Windows Server 2012 (32/64-bits)
Cables Included 8 x DisplayPort-DVI adapter ¦ 8 x Mini DisplayPort-DisplayPort adapter
Software Included Matrox PowerDesk
Windows 8 Compatible This product has been tested to meet all of the technical requirements to be Windows 8 Compatible.
Compliant Standards EMC, RoHS, WEEE
Depth 22.9 cm
Height 11.2 cm
Service & Support 3 years warranty
Service & Support Details Limited warranty - 3 years
