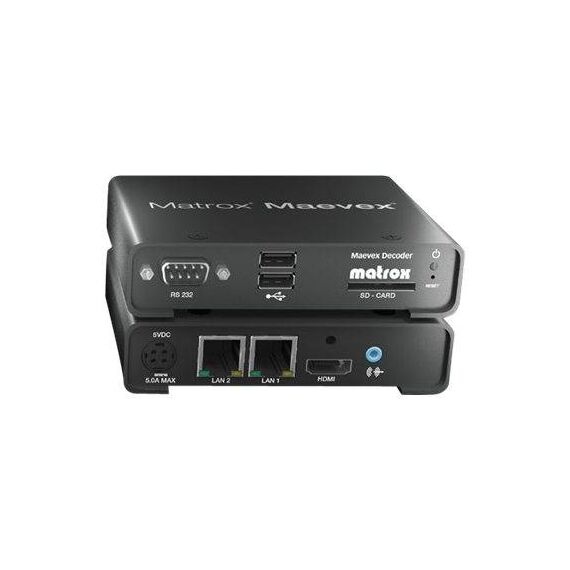

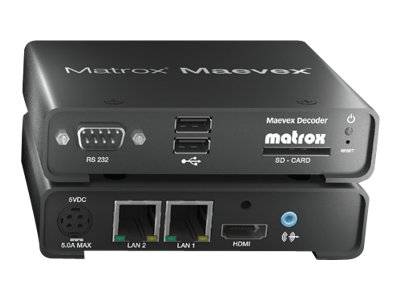

Matrox Maevex 5150 Decoder / Video/audio extender | MVX-D5150F
Matrox Maevex 5150 Decoder / Video/audio extender | MVX-D5150F
Description The technology's H.264 decode platform delivers Full HD, excellent-quality video extension over standard LAN connectivity at user-defined low bit rates for minimal network bandwidth consumption. Maevex hardware architecture and I/O functionality combine to yield an excellent-quality video over IP solution at a cost-effective price for a wide variety of applications. Special Features
|
Product Specification
Device Type | Video/audio extender |
Form Factor | External |
Connectivity Technology | Wired |
Remote Management Protocol | HTTP, HTTPS |
Max Resolution | 1920 x 1200 / 1080p @ 60 Hz |
Interfaces | 2 x Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 1 x HDMI ( output ) ¦ 1 x audio ( output ) - mini jack |
Rack Mounting Kit | Optional |
MTBF | 164.81 years |
Compliant Standards | VCCI, C-Tick, FCC, RoHS, WEEE, ICES, KCC Class B |
Power Device | External power adapter |
Voltage Required | AC 120/230 V ( 50/60 Hz ) |
OS Required | Microsoft Windows 7, Windows 8, Windows 10 |
Width | 12.83 cm |
Depth | 10.16 cm |
Height | 2.59 cm |
Weight | 286 g |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 55 °C |
Humidity Range Operating | 20 - 80% (non-condensing) |
