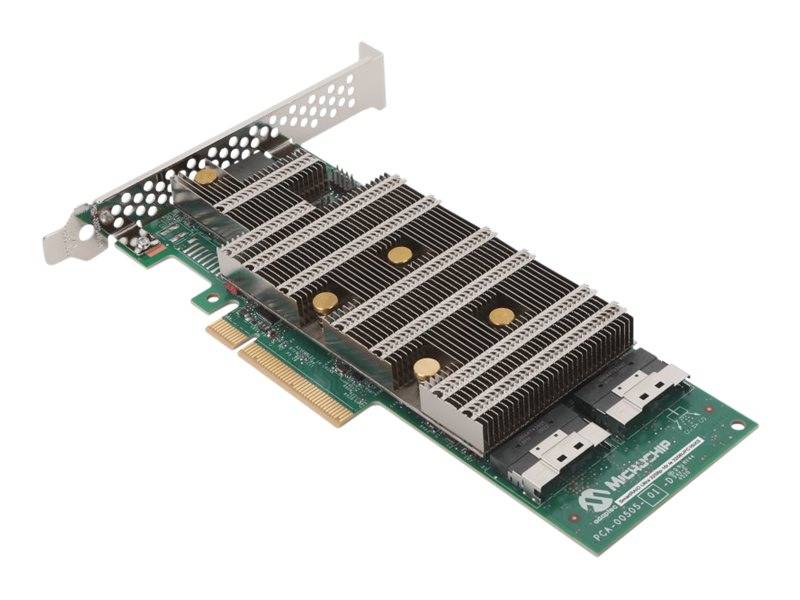

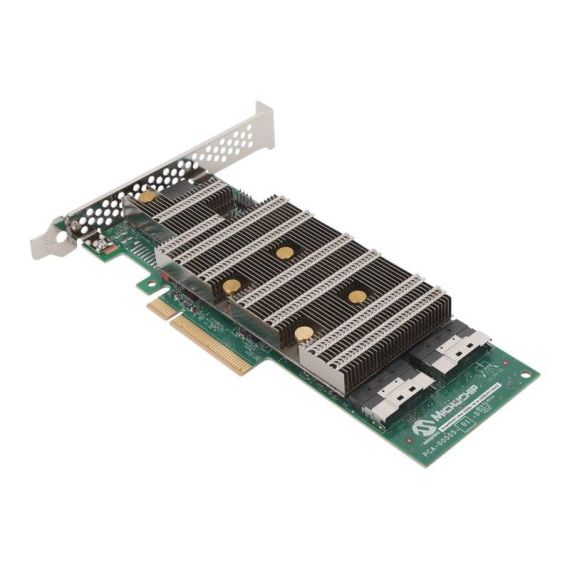

Microchip Adaptec SmartRAID 3200 Series 3258Up-16i /e / Storage controller (RAID) / 16 Channel / SATA 6Gb/s / SAS 24Gb/s / PCIe 4.0 (NVMe) / RAID 0, 1, 5, 6, 10, 50, 60 / PCIe 4.0 x16 | 3258UPC16IXS
3258UPC16IXS
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Special Features
- 8-lane (x8) or 16-lane (x16 "ultra") PCIe Gen4 host interface
- Secure boot, secure update and attestation
- maxCrypto CBE for SAS, SATA and NVMe devices
- Universal Backplane Management (UBM)
- Virtual Pin Port Management (VPP)
- SES (SAS expander-based backplanes), SGPIO (direct attached SAS/SATA backplanes)
- Dynamic adapter power management
- maxView tool suite support
- Support for 64 NVMe devices and up to 256 SAS/SATA and up to 64 LD/RAID arrays
- RAID 0, 1 Triple, 10 Triple, 5, 6, 50, 60
- RAID level migration and online capacity expansion
- Mixed mode and HBA mode support
- Support for x86 platform
- Zero Maintenance Cache Protection (ZMCP) integrated with all SmartRAID 325x products
Product Specification
| Device Type | Storage controller (RAID) - plug-in card |
| Host Bus | PCIe 4.0 x16 |
| Storage Controller | Storage Controller |
| Interface | SATA 6Gb/s / SAS 24Gb/s / PCIe 4.0 (NVMe) |
| Data Transfer Rate | 24 Gbit/s |
| Buffer Size | 8 GB |
| Supported Devices | Hard drive, disk array (RAID), solid state drive |
| Channel Qty | 16 |
| Max Storage Devices Qty | 256 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60 |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | SATA 6Gb/s / SAS 24Gb/s / PCIe 4.0 (NVMe) (internal) |
| Miscellaneous | Miscellaneous |
| Features | Native Command Queuing (NCQ), SecureBoot, HBA Mode, RAID Level Migration, dynamic sector repair, Bootable RAID Array support, S.M.A.R.T. support, Zero Maintenance Cache Protection (ZMCP), maxCrypto |
| Compliant Standards | UL, VCCI, C-Tick, FCC, RoHS, KCC, CNS |
| Software / System Requirements | Software / System Requirements |
| Software Included | Adaptec maxView Storage Manager |
| OS Required | SunSoft Solaris, FreeBSD, SUSE Linux Enterprise Server, Microsoft Windows Server, Debian Linux, Red Hat Enterprise Linux, CentOS, Ubuntu, VMware ESXi, Citrix XenServer, Oracle Linux, Windows 10 |
| Dimensions & Weight | Dimensions & Weight |
| Depth | 16.765 cm |
| Height | 6.89 cm |
Features - Microchip - 3258UPC16IXS
More Details
Product Code
CE02454
EAN Code
0760884158166
Manufacturer
Microchip
