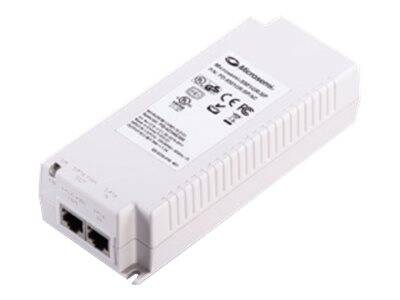

Microchip PD-9501GR/SP / PoE injector / AC 100-240 V / 60 Watt / output connectors: 1 / Europe | PD-9501GR/SP/AC-EU
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | PoE injector - external |
| Power Over Ethernet (PoE) | PoE+ (IEEE 802.3at) |
| Localisation | Europe |
| Power Device | Power Device |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50 - 60 Hz |
| Power Output Connectors Details | 1 x RJ-45 |
| Output Voltage | DC 55 V |
| Power Capacity | 60 Watt |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x Gigabit LAN - RJ-45 |
| Miscellaneous | Miscellaneous |
| MTBF | 240,000 hours |
| Features | Surge protection, LED indicators |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at, VCCI, EN55024, EN55022 Class B, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, FCC Part 15 Class B |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 1 year |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -10 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Dimensions & Weight | Dimensions & Weight |
| Width | 6.2 cm |
| Depth | 15.1 cm |
| Height | 3.8 cm |
| Weight | 320 g |
Features - Microchip - PD-9501GR/SP/AC-EU
More Details
Product Code
2961575
EAN Code
0844117002447
Manufacturer
Microchip
