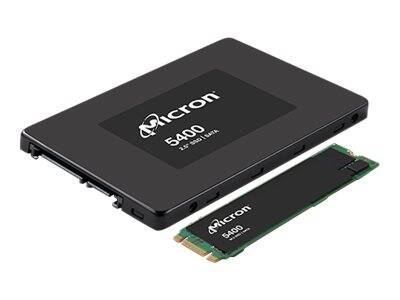

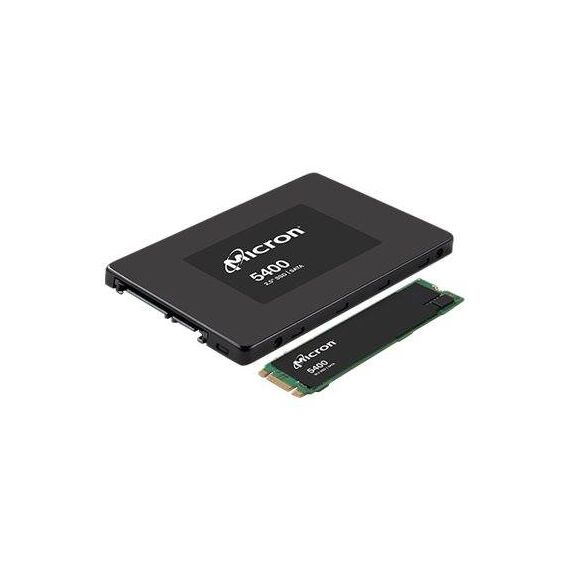

Micron 5400 MAX / SSD / Mixed Use / encrypted / 480 GB / hot-swap / 2.5" / SATA 6Gb/s / 256-bit AES / Self-Encrypting Drive (SED), TCG Enterprise SSC | 4XB7A82289
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Solid state drive - hot-swap |
| Capacity | 480 GB |
| Hardware Encryption | Yes |
| Encryption Algorithm | 256-bit AES |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Form Factor | 2.5" |
| Interface | SATA 6Gb/s |
| Features | End-to-end data path protection, Exclusive-OR (XOR), Extended Error Correction Code (ECC), Sanitise Cryptographic Erase support, 176-layer 3D TLC NAND technology, S.M.A.R.T. |
| Width | 70 mm |
| Depth | 100 mm |
| Height | 7 mm |
| Weight | 70 g |
| Performance | Performance |
| Drive Writes Per Day (DWPD) | 5 |
| SSD Endurance | 4380 TB |
| Drive Class | Mixed Use |
| Drive Transfer Rate | 600 MBps (external) |
| Internal Data Rate | 540 MBps (read) / 520 MBps (write) |
| 4KB Random Read | 95000 IOPS |
| 4KB Random Write | 58000 IOPS |
| Average Latency | 36 µs |
| Reliability | Reliability |
| MTBF | 3,000,000 hours |
| Non-Recoverable Errors | 1 per 10^17 |
| Expansion & Connectivity | Expansion & Connectivity |
| Interfaces | 1 x SATA 6 Gb/s |
| Compatible Bay | 2.5" |
| Power | Power |
| Power Consumption | 2.5 Watt (read) ¦ 3.1 Watt (write) |
| Miscellaneous | Miscellaneous |
| Compliant Standards | TUV, ICES-003 Class B, IC, EN55024 Class B, RoHS, UL 60950-1 Second Edition, BSMI CNS 13438, RCM, IEC 60950-1:2005 Second Edition, IEC60950/EN60950, FCC CFR47 Part 15 B Class B, EN 55032 Class B, WEEE 2012/19/EC, KCC KN32 Class B, KCC KN35 Class B, Micron Green Standard, VCCI 2015.04 Class B, Morocco, EN 60950-1:2006+A1:2010+A11:2009 + A12:2011 + A2:2013, AS/NZS CISPR32 Class B, EN55032 Class B |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - replacement - 1 year |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 70 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Shock Tolerance (non-operating) | 1500 g @ 0.5 ms |
| Vibration Tolerance (non-operating) | 3.13 gRMS @ 5-800 Hz |
| Compatibility Information | Compatibility Information |
| Designed For | Lenovo ThinkSystem SR250 V2 7D7Q (2.5"), 7D7R (2.5") ¦ Lenovo ThinkSystem ST250 V2 7D8F (2.5"), 7D8G (2.5") |
Features - Lenovo - 4XB7A82289
Form Factor
- 2.5"
- Internal
Capacity
480GB
Interface
- SATA
More Details
Product Code
CF78225
EAN Code
0889488633807
Manufacturer
Lenovo
