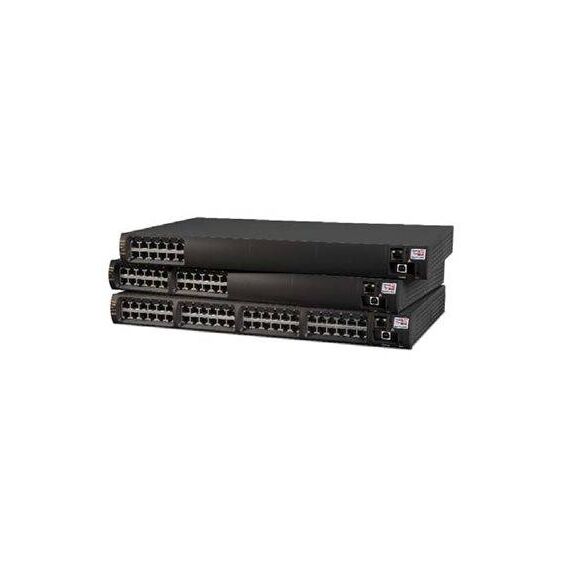

Microsemi PD-9012G / PoE injector (rack-mountable) / AC 100-240/ DC 46-57 V / 450 Watt / Ethernet, USB / output connectors: 12 / 1U / Europe | PD-9012G/ACDC/M-EU
PD-9012G/ACDC/M-EU
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Microsemi PD-9012G / PoE injector (rack-mountable) / AC 100-240/ DC 46-57 V / 450 Watt / Ethernet, USB / output connectors: 12 / 1U / Europe | PD-9012G/ACDC/M-EU
Product Specification
| Device Type | PoE injector - rack-mountable |
| Power Over Ethernet (PoE) | PoE+ (IEEE 802.3at) |
| Height (Rack Units) | 1U |
| Localisation | Europe |
| Input Voltage | AC 100-240/ DC 46-57 V |
| Frequency Required | 50 - 60 Hz |
| Power Output Connectors Details | 12 x RJ-45 |
| Output Voltage | DC 55 V |
| Power Capacity | 450 Watt |
| Remote Management Interface | Ethernet, USB |
| Remote Management Protocol | SNMP 3 |
| Interfaces | 12 x Gigabit LAN - RJ-45 ¦ 1 x USB - 4 pin USB Type B ¦ 1 x VGA - 15 pin HD D-Sub (HD-15) ¦ 1 x management (Ethernet) - RJ-45 |
| Features | LED indicators |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at, VCCI, C-Tick, GS, EN55024, UL 60950, EN55022 Class B, RoHS, cUL No.60950-1, FCC Part 15 Class B |
| Software Included | PowerView Pro |
| Service & Support | Limited warranty - 16 years |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Width | 43.8 cm |
| Depth | 27.2 cm |
| Height | 4.4 cm |
| Weight | 6.5 kg |
Features - Microchip - PD-9012G/ACDC/M-EU
More Details
Product Code
2961583
EAN Code
0844117001136
Manufacturer
Microchip
