Microsemi PD-9501GR / PoE injector / AC 100-240 V / 60 Watt / output connectors: 1 / Europe | PD-9501GR/AC-EU

Ask a question
PD-9501GR/AC-EU
Product Code2961584 EAN Code0844117002423 ManufacturerMicrochip
Microsemi PD-9501GR / PoE injector / AC 100-240 V / 60 Watt / output connectors: 1 / Europe | PD-9501GR/AC-EU Description Microsemi's PD-9501GR is a single port solution for remote powering of current as well as emerging high power applications. The PD-9501GR is designed...
102.80
122.33  inc. VAT
Out of stock

We (Singular Computer Systems LTD) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to panto@singular.com.cy.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Add to wish list

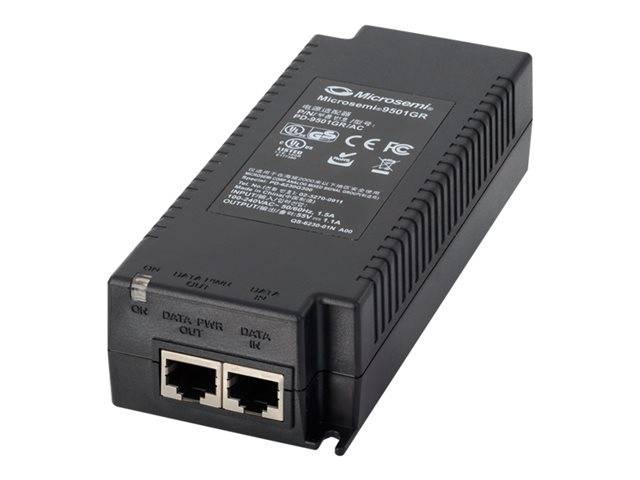

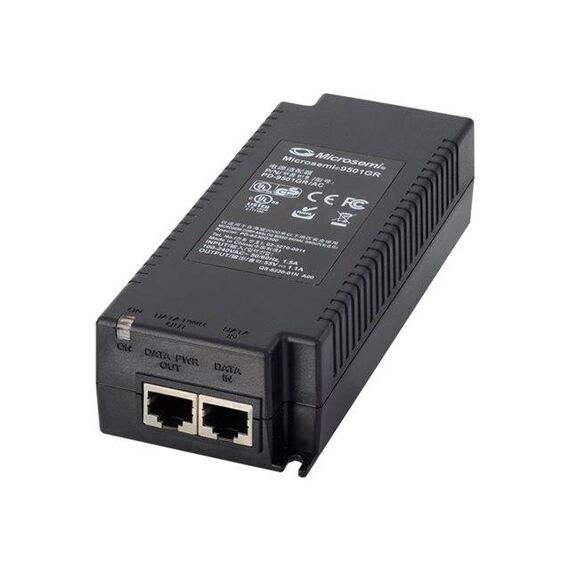

Microsemi PD-9501GR / PoE injector / AC 100-240 V / 60 Watt / output connectors: 1 / Europe | PD-9501GR/AC-EU

Description

Microsemi's PD-9501GR is a single port solution for remote powering of current as well as emerging high power applications. The PD-9501GR is designed specifically to power IEEE 802.11n and IEEE 802.3at access points, pan-tilt-zoom (PTZ) and dome cameras, IP videophones, thin clients and other high power Ethernet end terminals with 60W of power, and is also backward compatible and safe to use with any IEEE 802.3af terminal such as VoIP phones, IP cameras and wireless LAN access points. It can power both existing 10/100Base-T devices and emerging wireless Gigabit devices such as Wi-MAX and wireless IEEE 802.11n access points. The PD-9501GR provides power on all 4-pairs while being backwards compatible to 802.3af and 802.3at powered devices.



Product Specification

Device Type PoE injector - external
Power Over Ethernet (PoE) PoE+ (IEEE 802.3at)
Localisation Europe
Input Voltage AC 100-240 V
Frequency Required 50 - 60 Hz
Power Output Connectors Details 1 x RJ-45
Output Voltage DC 55 V
Power Capacity 60 Watt
Interfaces 1 x Gigabit LAN - RJ-45
MTBF 240,000 hours
Features LED indicators
Compliant Standards IEEE 802.3af, IEEE 802.3at VCCI, EN55024, EN55022 Class B, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, FCC Part 15 Class B
Service & Support Limited warranty - 1 year
Min Operating Temperature -10 °C
Max Operating Temperature 40 °C
Humidity Range Operating 0 - 95% (non-condensing)
Width 6.2 cm
Depth 15.1 cm
Height 3.8 cm
Weight 320 g

Features - Microchip - PD-9501GR/AC-EU

More Details
Product Code:
2961584
EAN Code:
0844117002423
Manufacturer:
Microchip
