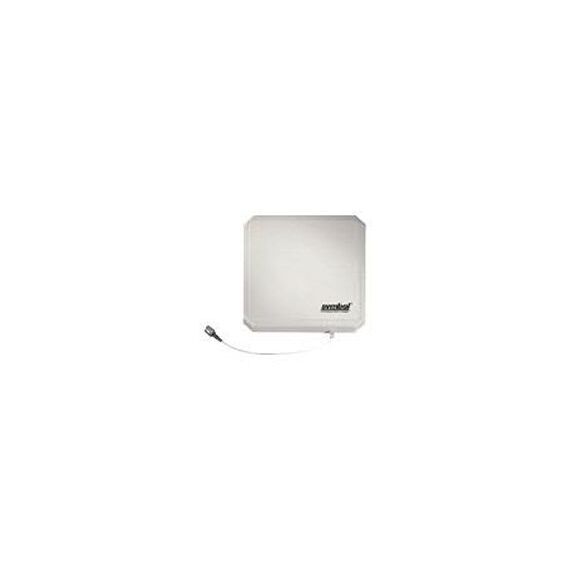

Motorola AN480-CL66100WR Motorola ANTENNA: 1 PORT WIDE BAND-LEFT (AN480-CL66100WR)
Motorola ANTENNA: 1 PORT WIDE BAND-LEFT (AN480-CL66100WR)
This single port antenna offers the maximum flexibility and performance required to meet the needs of enterprises around the world. Compatible in virtually any global market, Motorola's AN480 can be installed throughout the enterprise in manufacturing and warehouse floor environments or any dock door receiving applicationThe AN480 antenna offers a low axial ratio that delivers a more uniform gain for superior performance.
Feature list
| Antenna gain level max: | 6 dBi |
| Impedance: | 50 Ω |
| Antenna connector type: | N-type |
| Polarization: | Horizontally Linear |
| Power handling: | 2 W |
| Voltage Standing Wave Ratio VSWR: | 1.22:1 |
| Frequency range: | 865-868 MHz |
| Mounting: | wall |
| Weight: | 1130 g |
| Width: | 259.1 mm |
| Depth: | 258.1 mm |
| Height: | 50.3 mm |
| Certification: | IP 54IEC-68UL-746C |
| RoHS compliance: | Y |
| Colour of product: | White |
