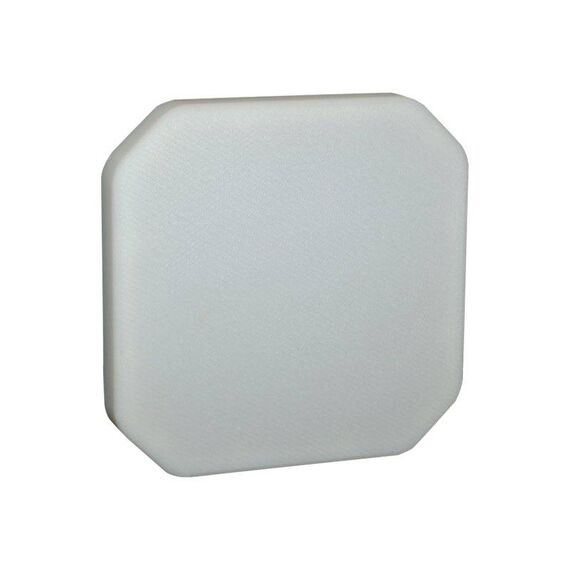

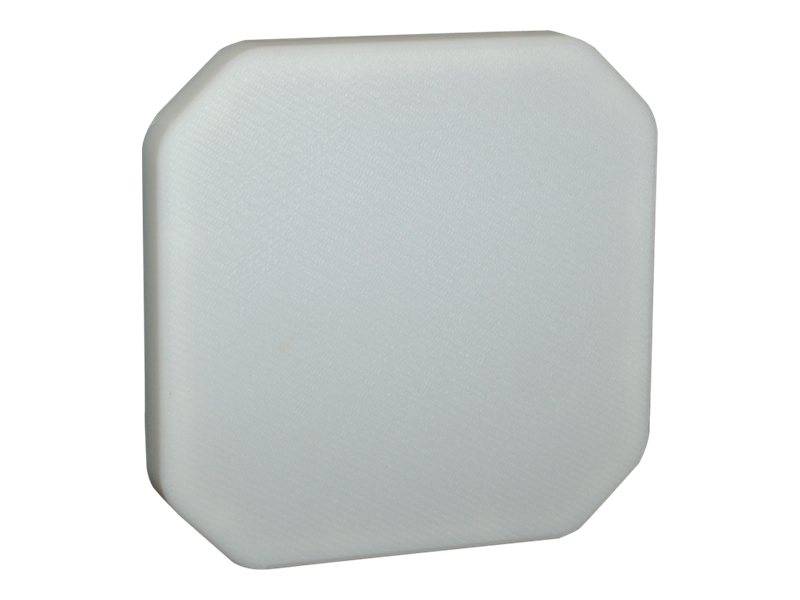

Symbol AN720 RFID Antenna / Antenna / 6 dBi / directional / outdoor / for Zebra FX7400 | AN720-L51NF00WEU
Please sign in so that we can notify you about a reply
Product Specification
| Product Type | Antenna |
| Width | 13.3 cm |
| Depth | 1.8 cm |
| Height | 13.3 cm |
| Weight | 370 kg |
| Localisation | Europe |
| Aerial | Aerial |
| Aerial Placing / Mounting | Outdoor |
| Frequency Range | 865 - 868 MHz |
| Gain | 6 dBi |
| Directivity | Directional |
| Voltage Standing Wave Ratio (VSWR) | 1.5:1 |
| Impedance | 50 Ohm |
| Cabling & Wiring | Cabling & Wiring |
| Connector Provided | 1 x N-Series connector female |
| Miscellaneous | Miscellaneous |
| Compliant Standards | IEC 60529 IP67, IEC 60068-2-30, WEEE, IEC 60068-2-27 |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -30 °C |
| Max Operating Temperature | 70 °C |
| Compatibility Information | Compatibility Information |
| Designed For | Zebra FX7400 |
Features - Motorola - AN720-L51NF00WEU
More Details
Product Code
V353664
EAN Code
5656565656562
Manufacturer
Motorola
